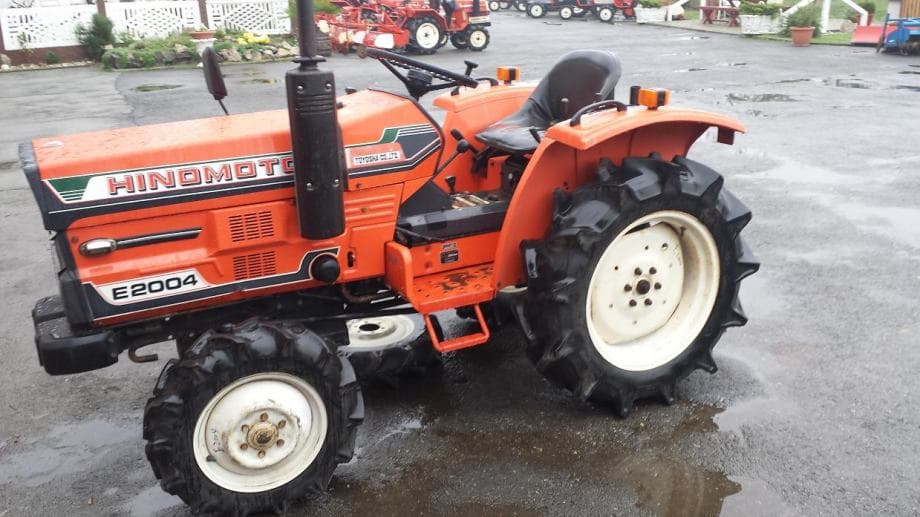

Hinomoto E2004

Last Updated: June 2024

Overview

The Hinomoto E2004 is a compact utility tractor known for its reliability and strength in various tasks. With a 4x4 MFWD 4WD chassis, it can handle tough terrain and provide stable performance in different farming operations. The heart of the Hinomoto E2004 is its Toyosha MS135 diesel engine, which is a 3-cylinder liquid-cooled engine. This tractor is equipped with 20 horsepower, making it suitable for a range of jobs such as mowing, tilling, and hauling materials. Sporting a modest footprint with a length of 98 inches, a width of 48 inches, and a height of 73 inches, the E2004 maintains good maneuverability while also providing a sturdy operating weight of 2,215 pounds. While specific details about the transmission type, gear ratio, and PTO speeds are not provided, owners typically find this tractor to be versatile in its applications. The absence of certain detailed specs can be overcome by the durable performance and solid construction the E2004 offers.
Show more...

Key Specifications

Category: Utility

Power Output: 20

Drive Type: 4WD

Operating Weight: 2215

Fuel Type: Diesel

Hinomoto E2004 vs. Similar Tractors

Power Output
Poor
Greater than 10% of similar tractors.
Operating Weight
Below Average
Greater than 17% of similar tractors.

Technical Specifications

Engine

Manufacturer
Toyosha
Model
MS135
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
82.38
Bore (in)
-
Stroke (in)
-
Rated RPM
-
Power Output (hp)
20

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
98
Width (in)
48
Height (in)
73
Operating Weight (lb)
2215

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
