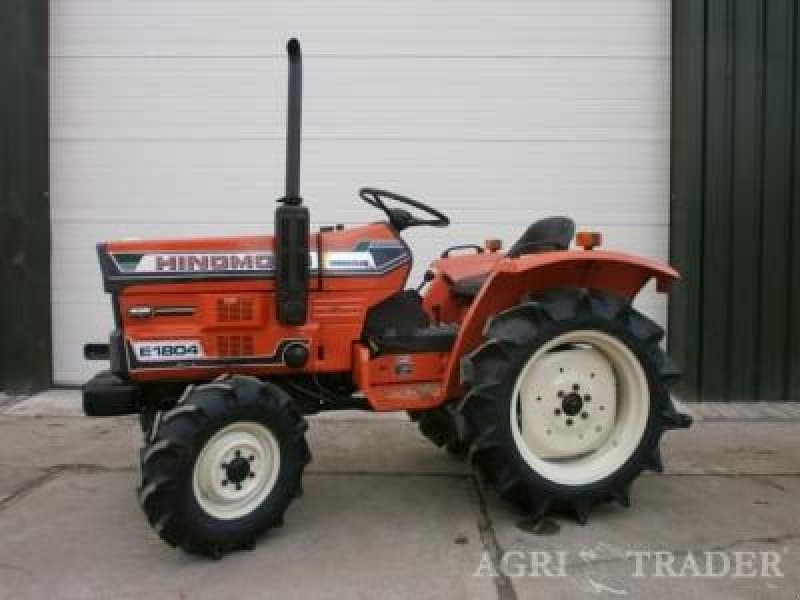

Hinomoto E1804

Last Updated: June 2024

Overview

The Hinomoto E1804 is a compact utility tractor known for its 4x4 MFWD 4WD chassis configuration which provides improved traction and versatility over various types of terrain. It is powered by an 18 horsepower Toyosha CS112 diesel engine with three cylinders and a liquid-cooling system which ensures efficient operation even during prolonged use. The tractor offers a total of 8 gears, comprising 6 forward gears and 2 reverse gears, although the specific type of transmission is not provided. It is fairly compact with a length of 92 inches, a width of 43 inches, and a height of 72 inches, while its operating weight stands at 1912 pounds. The tractor's engine displacement is 68.35 cubic inches (1.1 liters). Key specifications like steering type, engine cylinder orientation, valve configuration, tire dimensions, and certain other attributes remain unspecified. This tractor is well-suited for various agricultural tasks and is often valued for its durability and dependable performance in smaller-scale farming operations.
Show more...

Key Specifications

Category: Utility

Power Output: 18

Drive Type: 4WD

Operating Weight: 1912

Fuel Type: Diesel

Hinomoto E1804 vs. Similar Tractors

Power Output
Poor
Greater than 7% of similar tractors.
Operating Weight
Below Average
Greater than 15% of similar tractors.

Technical Specifications

Engine

Manufacturer
Toyosha
Model
CS112
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
68.35
Bore (in)
-
Stroke (in)
-
Rated RPM
-
Power Output (hp)
18

Transmission

Type
-
Forward Gears
6
Reverse Gears
2
Total Gears
8

Dimensions

Length (in)
92
Width (in)
43
Height (in)
72
Operating Weight (lb)
1912

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
