Hinomoto E1802

Last Updated: June 2024

Overview

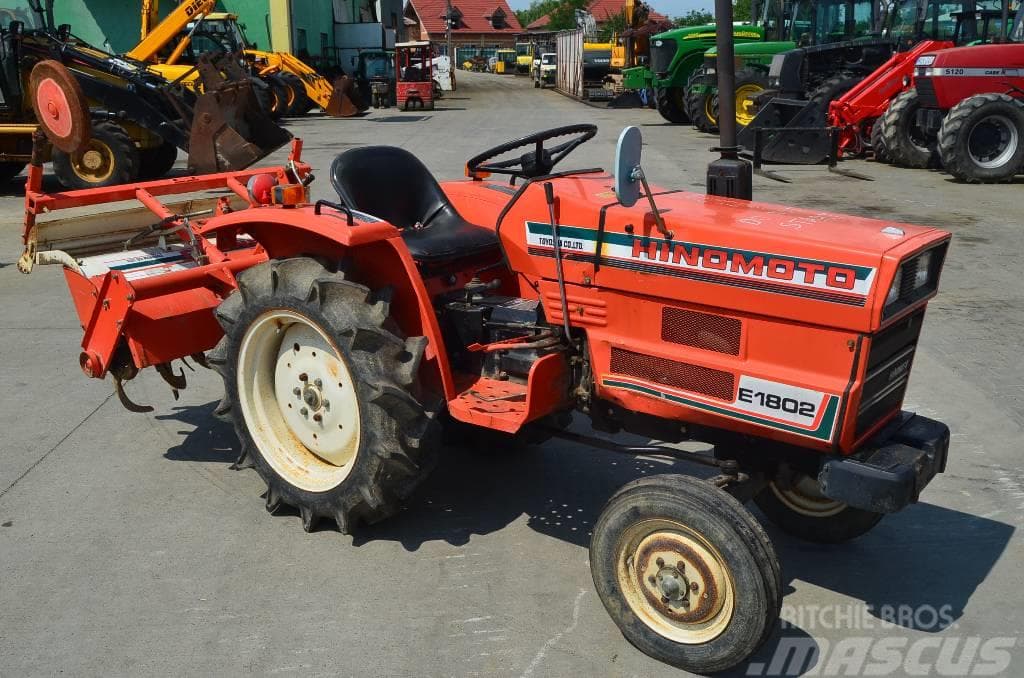

The Hinomoto E1802 is a compact utility tractor designed primarily for small-scale farming and land maintenance. It comes equipped with a 4x2 2WD chassis that implies it is a two-wheel-drive system. This model utilizes a Toyosha CS112 diesel engine, characteristic of liquid-cooled engines employed in steady work applications where overheating could be a concern. With just 18 horsepower, this tractor targets tasks requiring moderate power and is suited for hobby farms, smallholdings, or as a utility tractor for larger operations needing a small tractor for specific purposes. The overall size of the E1802, with a length of 92 inches, a width of 43 inches, and a height of 72 inches, positions it in the smaller spectrum of utility tractors, making it advantageous for maneuvering in tight spaces or for easy storage. The tractor's operating weight at 1,767 lbs ensures a balance between stability and ease of use across a range of conditions.
Show more...

Key Specifications

Category: Utility

Power Output: 18

Drive Type: 2WD

Operating Weight: 1767

Fuel Type: Diesel

Hinomoto E1802 vs. Similar Tractors

Power Output
Poor
Greater than 7% of similar tractors.
Operating Weight
Below Average
Greater than 14% of similar tractors.

Technical Specifications

Engine

Manufacturer
Toyosha
Model
CS112
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
68.35
Bore (in)
-
Stroke (in)
-
Rated RPM
-
Power Output (hp)
18

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
92
Width (in)
43
Height (in)
72
Operating Weight (lb)
1767

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (Assuming based on "Starter volts: 12")
Brake Type
-
Hydraulic System Type
-
