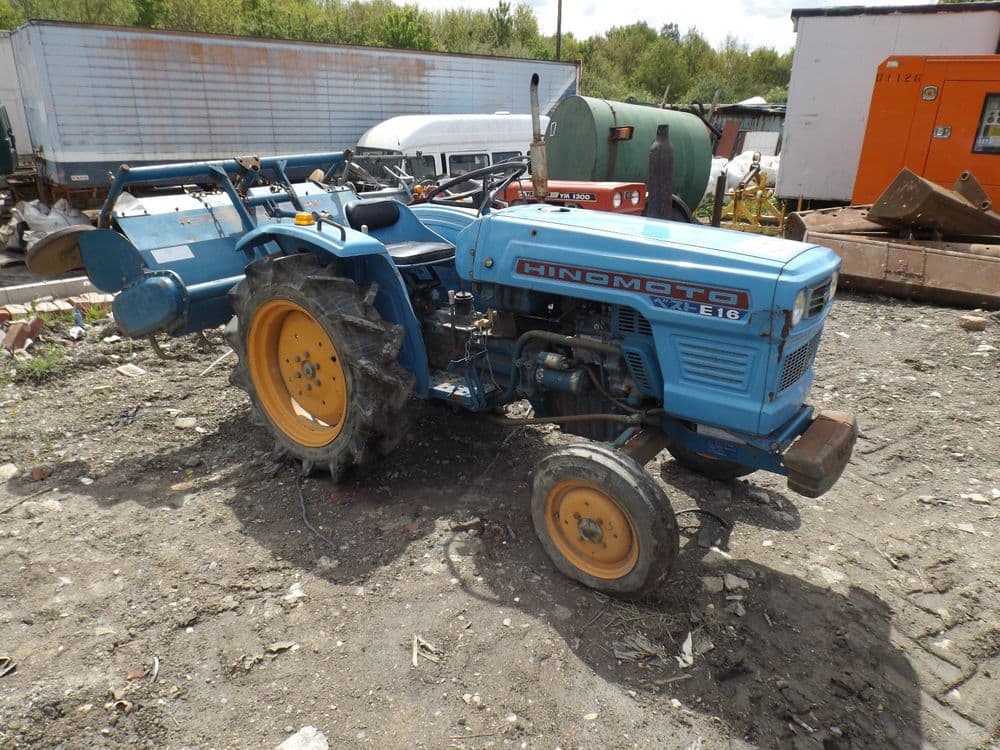

Hinomoto E16

Last Updated: June 2024

Overview

The Hinomoto E16 is a compact utility tractor, suitable for various tasks on a small farm, garden, or estate. Its 15.8 horsepower rating provided by the two-cylinder Toyosha S110 diesel engine makes it an efficient machine for lighter tasks. The liquid-cooled engine is robust and operates at a rated RPM of 2200, ensuring a balance of power and fuel economy. This tractor has a gear type transmission with 6 forward and 2 reverse gears, which offers a range of speeds suitable for various kinds of work. The tractor can be either 2WD or 4WD, with the 4WD variant weighing slightly more at 1760 pounds compared to the 1635 pounds for the 2WD model. The tractor maintains ground clearance of 11.4 inches, which helps in uneven terrain. Standard ag tires are sized at 4.00-12 in the front and 8.3-24 in the rear, providing good traction for agricultural environments. The dimensions of the tractor are relatively compact with a length of 93 inches, a width of 45 inches, and a height of 50 inches.
Show more...

Key Specifications

Power Output: 15.8

Transmission: Gear

Drive Type: 4WD

Operating Weight: 1635 (2WD), 1760 (4WD)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Toyosha
Model
S110
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
67.31
Bore (in)
-
Stroke (in)
-
Rated RPM
2200
Power Output (hp)
15.8

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
93
Width (in)
45
Height (in)
50
Operating Weight (lb)
1635 (2WD), 1760 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 volts
Brake Type
-
Hydraulic System Type
-
