Hinomoto E14

Last Updated: September 2024

Overview

The Hinomoto E14 is a compact tractor designed for small farms and gardens. It's powered by a Toyosha S88 diesel engine with two cylinders and 13.8 horsepower. This liquid-cooled engine runs at 2300 rpm, making it suitable for various tasks around the farm.

The E14 has a gear transmission with six forward gears and two reverse gears, giving the operator good control over speed and power. It features a three-point hitch (category I) for attaching implements, and three PTO speeds (547, 875, and 1000 rpm) for running different tools. The tractor measures 87.2 inches long, 40.9 inches wide, and 46.7 inches tall, with a weight of 1538 pounds. It has agricultural tires on both front and rear, and an electric starter for easy operation. With 10.7 inches of ground clearance and a 12-volt electrical system, the Hinomoto E14 is a versatile and reliable choice for small-scale farming needs.

Key Specifications

Power Output: 14 hp (10.3 kW)

Transmission: Gear

Operating Weight: 1538 lb (698 kg)

Fuel Type: Diesel

Image Gallery

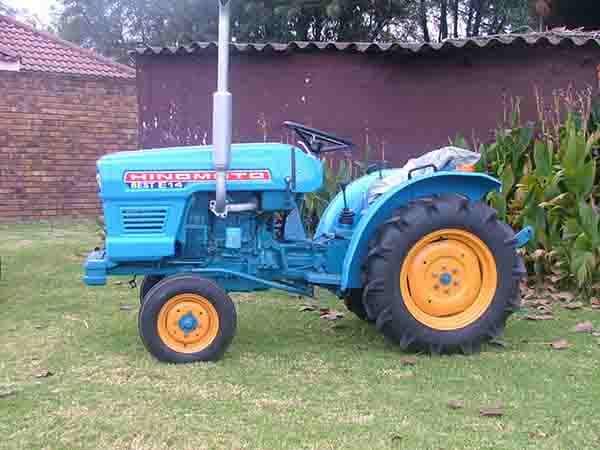

Hinomoto E14 Tractor

Hinomoto E14 vs. Similar Tractors

Power Output

The Power Output for the Hinomoto E14 is Poor. It is greater than 2% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Hinomoto E14 is Poor. It is greater than 8% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Hinomoto E14 is Poor. It is greater than 6% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Hinomoto E14 is Average. It is greater than 51% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors
