Hinomoto C144

Last Updated: June 2024

Overview

The Hinomoto C144 is a utility tractor equipped with a Toyosha CS86 diesel engine. This three-cylinder engine is liquid-cooled, naturally aspirated, and has a displacement of 52.8 cubic inches, outputting 17 horsepower at a rated RPM of 2500. The tractor has a gear transmission system with six forward gears and two reverse gears. It has a renowned three-point hitch system classified as Category I and features a 540 RPM rear PTO with an additional mid PTO option. This model, with its dry-type air cleaner and electric starting system, emphasizes simplicity and function. The tractor rides on standard agricultural tires or optional lawn/turf tires depending on the application and it has an operating weight of 1473 pounds. The overall dimensions reflect its compact stature, suitable for a variety of tasks in smaller or more confined spaces.

Key Specifications

Category: Utility

Power Output: 17

Transmission: Gear

Operating Weight: 1473

Fuel Type: Diesel

Image Gallery

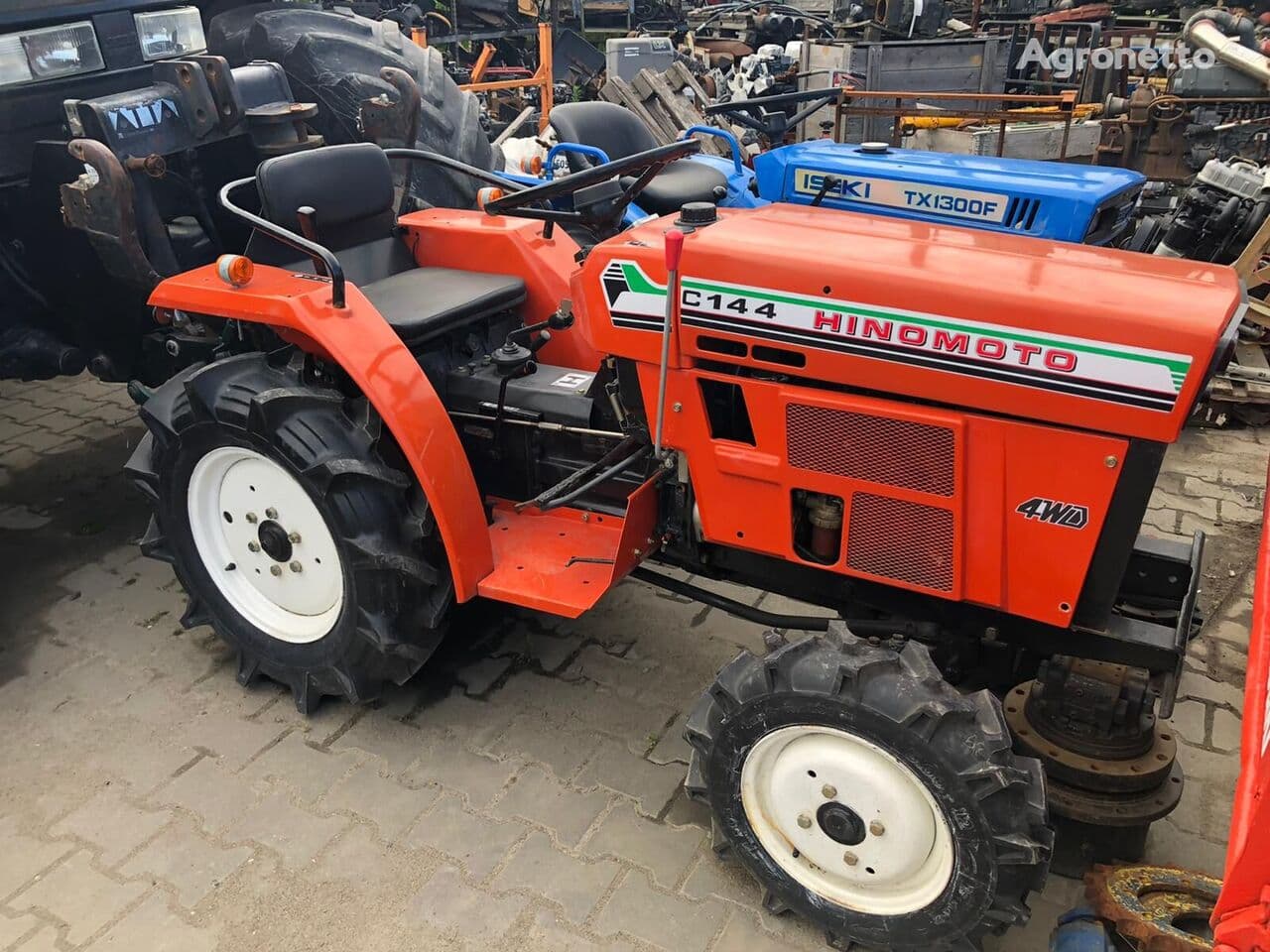

Hinomoto C144 Tractor

Hinomoto C144 vs. Similar Tractors

Power Output

Poor

Greater than 6% of similar tractors.

Operating Weight

Below Average

Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer: Toyosha
Model: CS86
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 52.8
Bore (in): 2.76
Stroke (in): 2.95
Rated RPM: 2500
Power Output (hp): 17

Transmission

Type: Gear
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 82.7
Width (in): 40.8
Height (in): 47.2
Operating Weight (lb): 1473

Power Take-Off (PTO)

PTO Type: Rear: 540 (1.375), Mid: pulley
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 3.2
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag: Front: 5-12, Rear: 8-16 | Lawn/turf: Front: 20.5x8.00-10, Rear: 29x12.00-15
Manufacture - End Year: -
Hitch Type: Three-Point Hitch
Hitch Category: I
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open center
