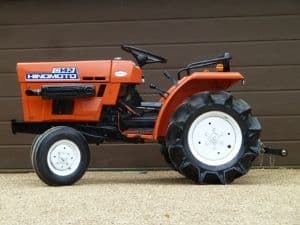

Hinomoto C142

Last Updated: June 2024

Overview

The Hinomoto C142 is a compact utility tractor well-suited for a variety of tasks in small-acreage farming, gardening, or estate management. It features a simple yet robust 2-wheel drive chassis, with standard agricultural (ag) tires. The tractor is powered by a 17 hp Toyosha CS86 diesel engine, with a liquid-cooled inline 3-cylinder design capable of operating at a rated RPM of 2500. The engine's power is harnessed through a gear transmission with 6 forward and 2 reverse gears, providing adequate rangefor different tasks. Operator comfort is taken into consideration with an open station type, providing easy access and egress. With electric start, utility chores become less tedious, especially during cold starts, thanks to the pre-heating glow plugs. The tractor also features a three-point hitch type I for attachment compatibility and a rear PTO for operational versatility. Its open-center hydraulic system may limit complex hydraulic tasks but remains suitable for basic agricultural requirements. Overall, the Hinomoto C142 is a practical machine designed for reliability and ease of maintenance.
Show more...

Key Specifications

Category: Utility

Power Output: 17

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1263

Fuel Type: Diesel

Hinomoto C142 vs. Similar Tractors

Power Output
Poor
Greater than 6% of similar tractors.
Operating Weight
Poor
Greater than 9% of similar tractors.

Technical Specifications

Engine

Manufacturer
Toyosha
Model
CS86
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
52.8
Bore (in)
2.76
Stroke (in)
2.95
Rated RPM
2500
Power Output (hp)
17

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
82.7
Width (in)
40.8
Height (in)
47.2 (steering wheel height)
Operating Weight (lb)
1263

Power Take-Off (PTO)

PTO Type
Rear: 540 / Mid: Pulley
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
3.2
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (Ag)
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
