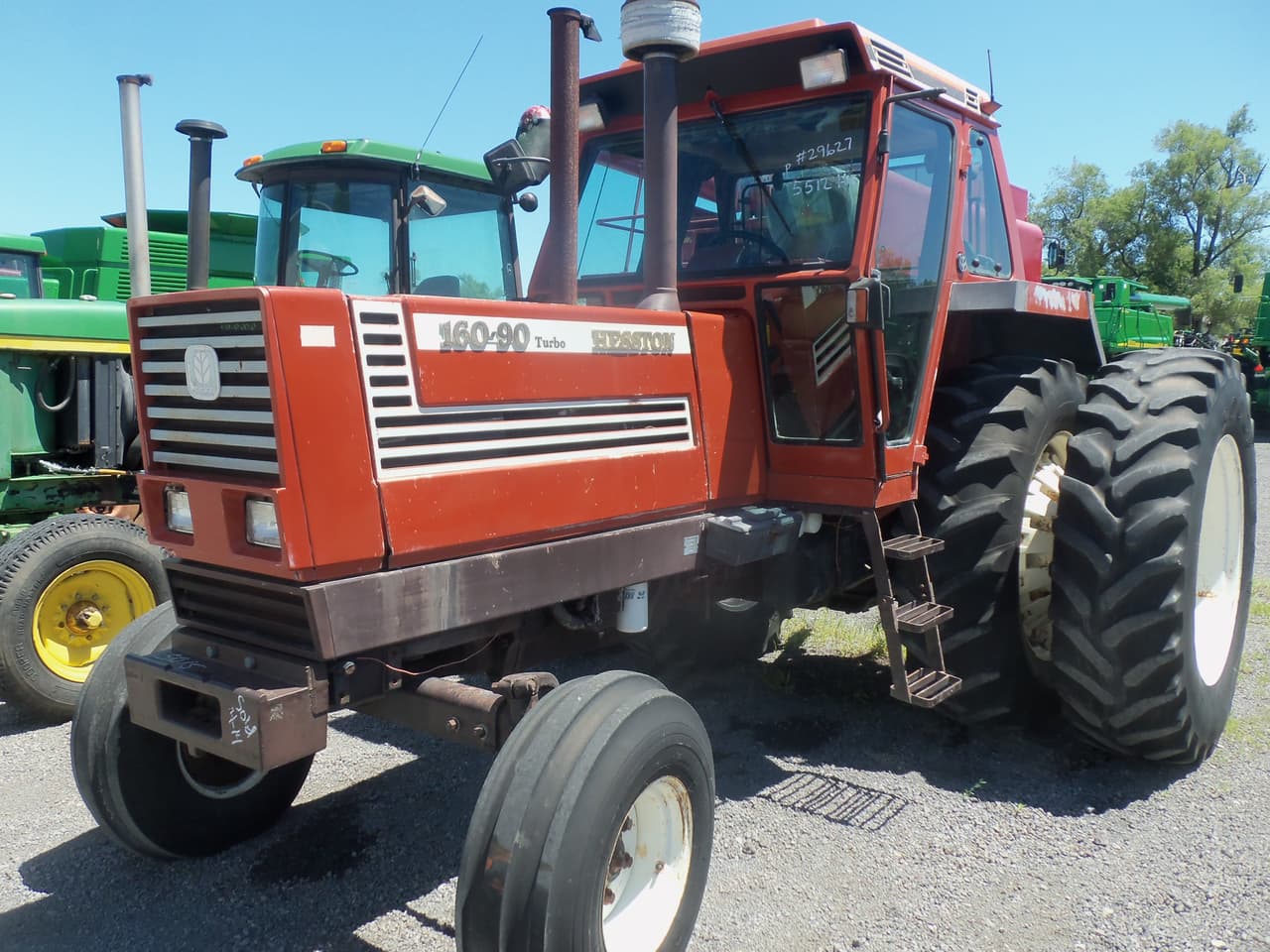

Hesston 160-90

Last Updated: September 2024

Overview

The Hesston 160-90 is a powerful row crop tractor built for serious farming. It has a 2WD chassis with power steering, making it easy to handle in the fields. The tractor comes with a versatile transmission that has 16 forward gears and 8 reverse gears, giving farmers lots of options for different tasks.

Under the hood, the Hesston 160-90 boasts a Fiat 8365.25 engine. This diesel engine is turbocharged and liquid-cooled, with 6 cylinders. It has a very high displacement of 494 ci, which means it can produce a lot of power. The engine runs at 2200 rpm, which is above average for tractors. At 13,350 lb, this tractor has an average weight for its class. It's equipped with a three-point hitch at the rear, compatible with category II and III implements. The comfortable cab keeps farmers protected while working long hours.
Show more...

Key Specifications

Category: Row Crop

Transmission: Synchronized, Creeper, Partial Power Shift

Drive Type: 2WD

Operating Weight: 13350 lb (6055 kg)

Fuel Type: Diesel

Hesston 160-90 vs. Similar Tractors

Operating Weight

The Operating Weight for the Hesston 160-90 is Average. It is greater than 58% of similar Row Crop tractors in our database.

Operating weight distribution of Row Crop tractors

(across 1.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Hesston 160-90 is Above Average. It is greater than 83% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Hesston 160-90 is Average. It is greater than 58% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Fiat
Model
8365.25
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement
494 ci (8.1 L)
Bore
4.53 in (115.1 mm)
Stroke
5.12 in (130.0 mm)
Rated RPM
2200

Transmission

Type
Synchronized, Creeper, Partial Power Shift
Forward Gears
16
Reverse Gears
8

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power Steering
