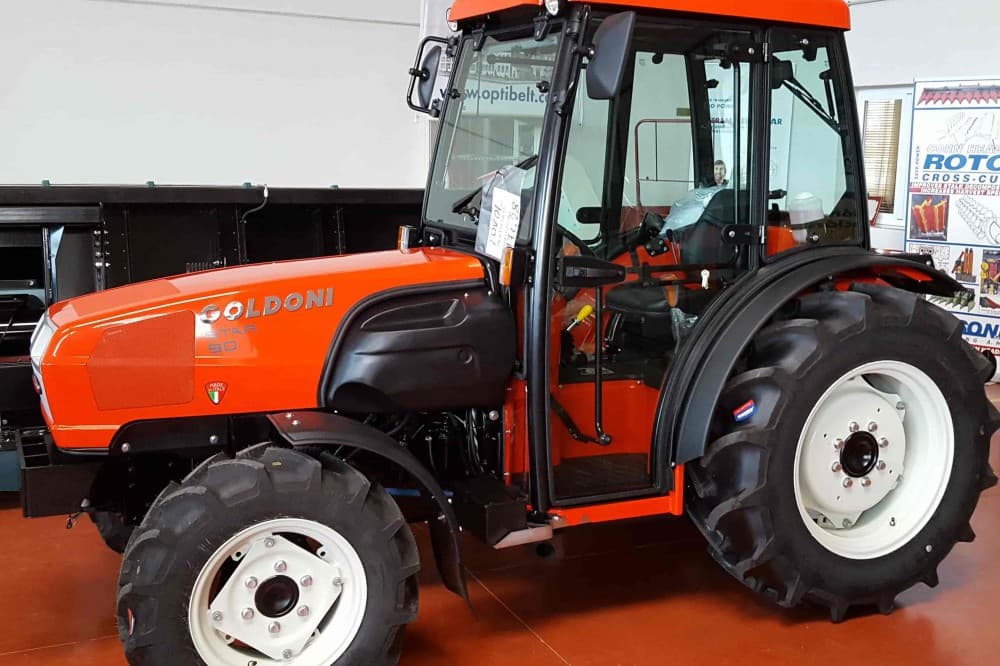

Goldini 70R

Last Updated: June 2024

Overview

The Goldini 70R is an Orchard/Vineyard tractor designed for specialized agriculture. It is equipped with a 4x4 MFWD 4WD chassis, enabling it to maneuver through various terrain types and conditions. Powered by a 68 horsepower VM Motori D703T turbocharged diesel engine with a displacement of 127.1 cubic inches, the tractor is well-suited for tasks that require robust performance and reliability. The engine delivers up to 68 horsepower and is optimized for fuel efficiency and durability, featuring a liquid-cooling system and operating at a rated RPM of 2600. The dry air cleaner indicates an air filtration system that does not require oil or water for operation, ensuring clean intake air for efficient combustion, particularly important in dusty environments often found in orchard and vineyard settings. The transmission features 16 forward and reverse gears with a 280mm hydraulic dry disc clutch, providing versatility and control in various operational situations. The electric starter with a 12-volt system ensures quick and reliable starting under different weather conditions.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 68

Transmission: Manual

Drive Type: 4WD

Fuel Type: Diesel

Goldini 70R vs. Similar Tractors

Power Output
Average
Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer
VM Motori
Model
D703T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
3
Displacement (ci)
127.1
Bore (in)
3.7
Stroke (in)
3.94
Rated RPM
2600
Power Output (hp)
68

Transmission

Type
Manual
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
