Goldini 50A

Last Updated: June 2024

Overview

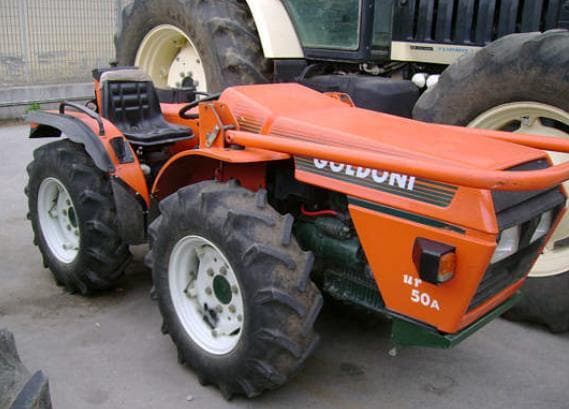

The Goldini 50A is an orchard/vineyard tractor designed to meet the specific needs of fruit and vineyard growers. It comes with an articulated four-wheel drive (4WD) chassis ensuring higher maneuverability in the tight rows of vineyards or orchards. The tractor is powered by a 49 horsepower VM Motori D703, three-cylinder diesel engine with a displacement of 127.1 cubic inches, a bore and stroke of 3.70 and 3.94 inches respectively. Its engine is liquid-cooled, operates at a rated RPM of 2600, and features a dry air cleaner. The torque output is 107 lb-ft at a low RPM of 1200, demonstrating good pulling power at lower working speeds. The electrical system utilizes a 12-volt starter for reliable ignition. This tractor is also equipped with a manual transmission offering 12 forward and 4 reverse gears, coupled with a hydraulic dry disc clutch for smooth operation and gear changes. Additional specifications such as dimensions, tire sizes, and hitch capabilities are unavailable for this model.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 49

Transmission: Manual

Drive Type: 4WD

Fuel Type: Diesel

Goldini 50A vs. Similar Tractors

Power Output
Below Average
Greater than 20% of similar tractors.

Technical Specifications

Engine

Manufacturer
VM Motori
Model
D703
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
127.1
Bore (in)
3.7
Stroke (in)
3.94
Rated RPM
2600
Power Output (hp)
49

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 articulated 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
