Gibson SD

Last Updated: September 2024

Overview

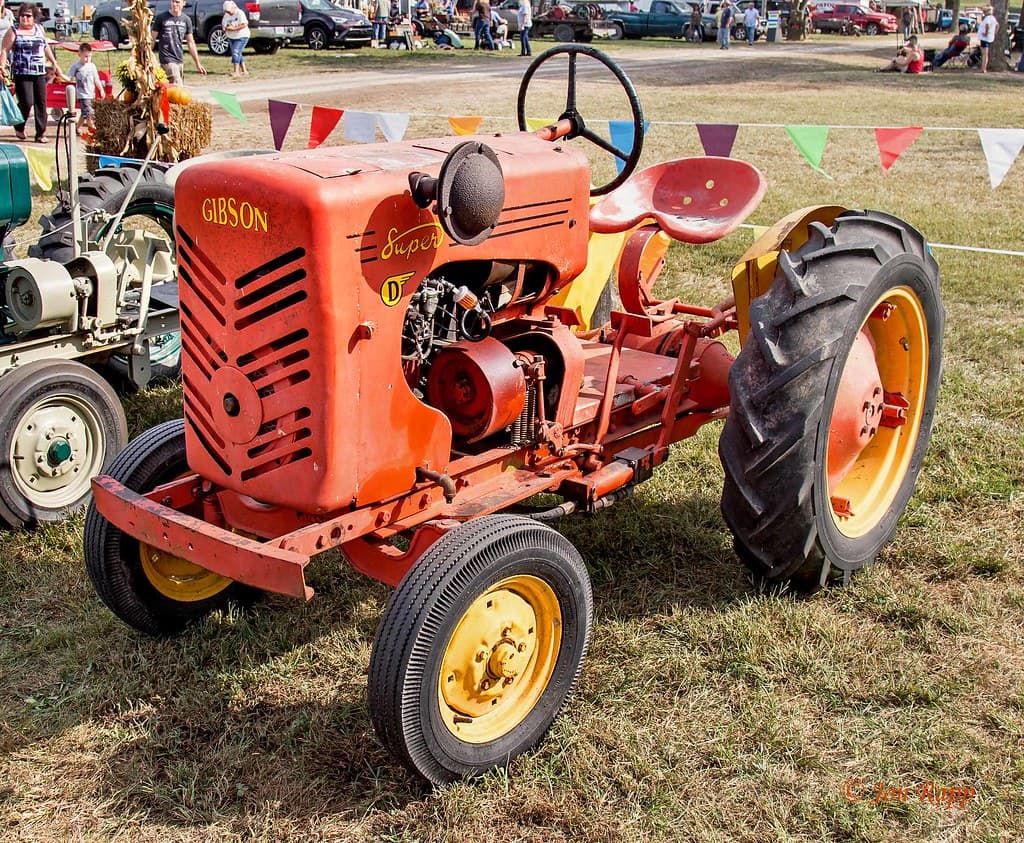

The Gibson SD is a compact 2WD tractor designed for light farm work. It features a simple 4x2 chassis and manual steering, making it easy to handle in tight spaces. The tractor has a basic gear transmission with 3 forward gears and 1 reverse gear, giving the operator enough options for different tasks.

Under the hood, the Gibson SD is powered by a Wisconsin AEH engine. This small gasoline engine is air-cooled and has just one cylinder. It puts out 6 horsepower, which is enough for basic jobs around the farm. The engine has a displacement of 23 cubic inches, with a 3-inch bore and 3.25-inch stroke. Weighing in at 1,065 pounds, this tractor is light and easy to move around. It comes with a Category I hitch, allowing it to work with various attachments. The Gibson SD also features 12-inch front tires and tiller steering, which helps with control during field work.
Show more...

Key Specifications

Power Output: 6 hp (4.5 kW)

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1065 lb (483 kg)

Fuel Type: Gasoline

Gibson SD vs. Similar Tractors

Power Output

The Power Output for the Gibson SD is Poor. It is greater than 0% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Gibson SD is Poor. It is greater than 3% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Gibson SD is Poor. It is greater than 0% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Wisconsin
Model
AEH
Cooling Type
Air-cooled
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
1
Displacement
23 ci (0.4 L)
Bore
3.00 in (76.2 mm)
Stroke
3.25 in (82.5 mm)
Power Output
6 hp (4.5 kW)

Transmission

Type
Gear
Forward Gears
3
Reverse Gears
1

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
