Overview

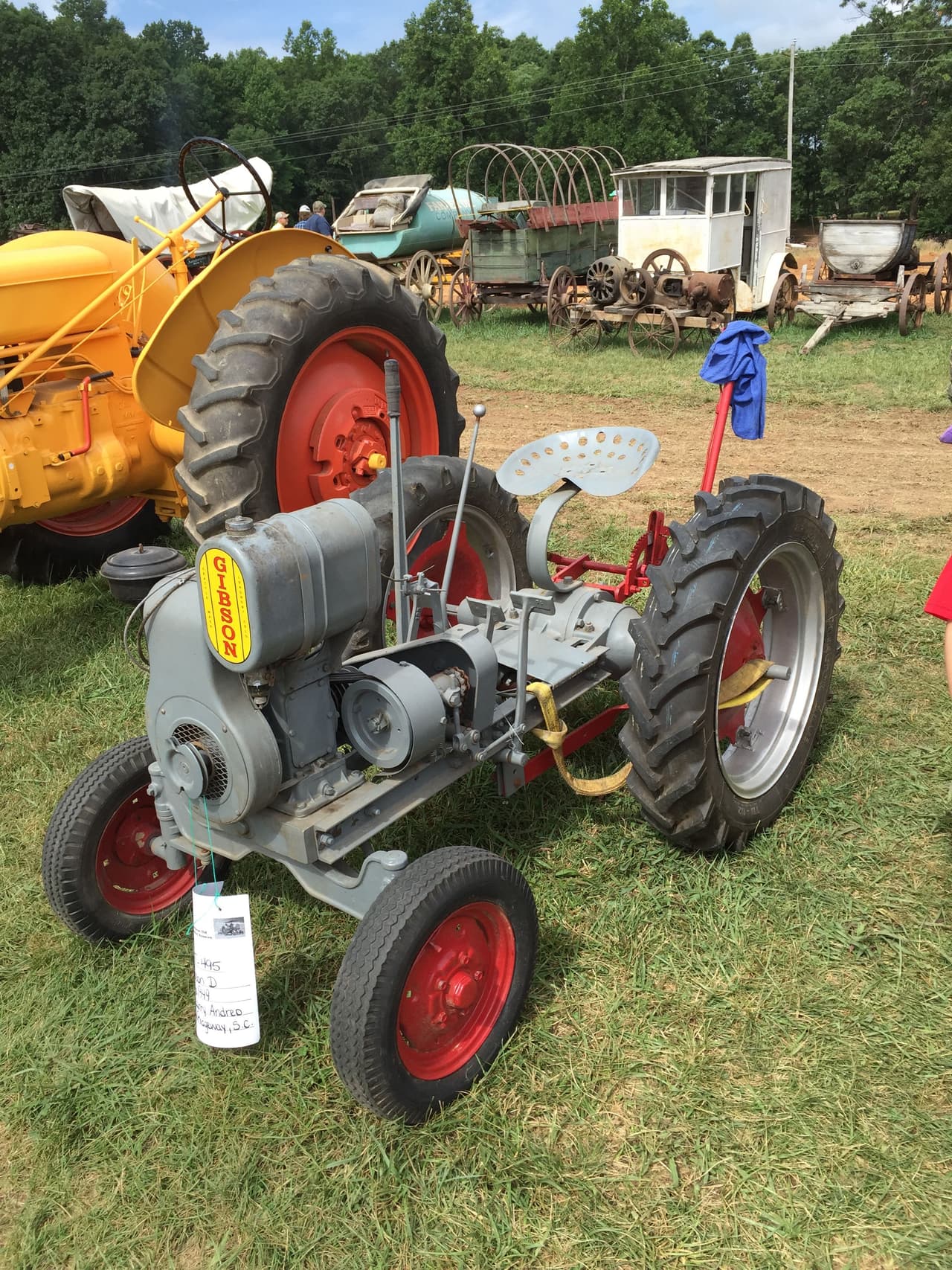

The Gibson Model D is an antique tractor, primarily recognized for its use in small farms and utility work during its time. This tractor features a Wisconsin AEH gasoline-powered engine with a single cylinder and an air-cooled system, suitable for light tasks and simple operations. It operates with a 4x2 2WD chassis and manual tiller steering, which, combined with the unsynchronized gear transmission offering three forward and one reverse gear, provides a basic but functional user experience. The engine is rated at 6 hp with a displacement of 23 cubic inches and operates at 2000 RPM. The simple oil bath air cleaner system and manual controls harken back to an era when machinery was straightforward and less technical compared to modern equivalents. The Gibson Model D showcases the design and technology typical of the time it was manufactured, suited for collectors and enthusiasts interested in vintage agricultural equipment.
Show more...

Key Specifications

Power Output: 6

Transmission: Unsynchronized gear

Drive Type: 2WD

Operating Weight: 955

Fuel Type: Gasoline

Technical Specifications

Engine

Manufacturer
Wisconsin
Model
AEH
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Natural
Cylinders
1
Displacement (ci)
23
Bore (in)
3
Stroke (in)
3.25
Rated RPM
2000
Power Output (hp)
6

Transmission

Type
Unsynchronized gear
Forward Gears
3
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
955

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual, Tiller
Coolant Capacity (qts)
-
Front Tire Diameter (in)
12
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
