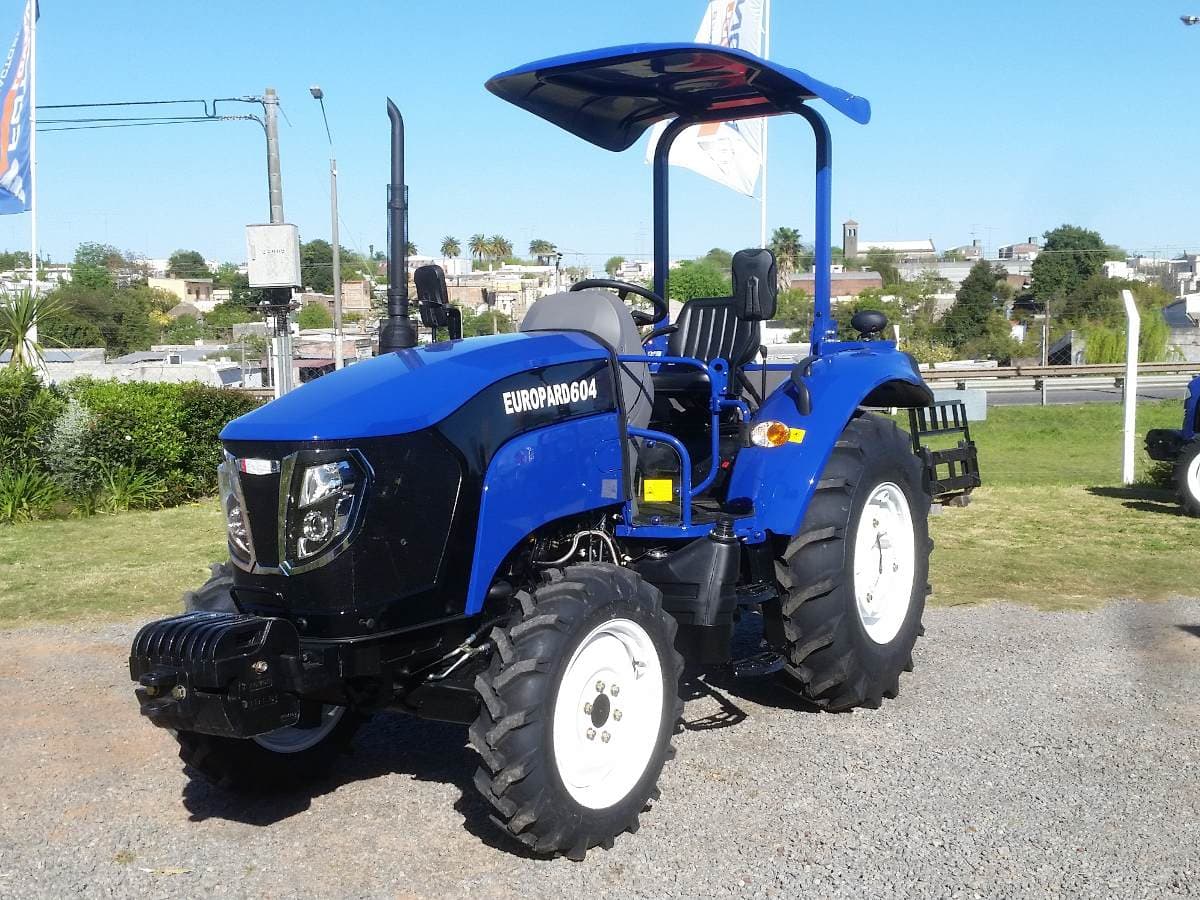

Foton 604

Last Updated: June 2024

Overview

The Foton 604 tractor is a four-wheel drive, multi-purpose vehicle designed to meet various agricultural demands. With a 4-cylinder, liquid-cooled diesel engine providing 61.7 horsepower and a displacement of 264.2 cubic inches, the Foton 604 offers robust performance in different farming tasks. The tractor has an 8-speed transmission with 8 forward and 2 reverse gears, making it adaptable to a range of tasks and terrains. The tractor's weight, equipped with a cab, is 7,507 lbs, and its dimensions boast a length of 161.4 inches, a width of 75.9 inches, and a height of 107.1 inches. The chassis is characterized as a 4x4 MFWD 4WD, hinting at its well-designed traction capability for a variety of working conditions. Engine details such as a 4.134 inch bore, a 4.921 inch stroke, and an operating RPM of 2200 indicate the tractor's strong engine dynamics. While specifics like the steering type and hydraulic system type remain unspecified, the existing specifications suggest that the Foton 604 tractor is an efficient and powerful machine for agricultural workloads.
Show more...

Key Specifications

Power Output: 61.7

Drive Type: 4WD

Operating Weight: 7,507

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Foton
Model
R4105T12B
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
264.2
Bore (in)
4.134
Stroke (in)
4.921
Rated RPM
2200
Power Output (hp)
61.7

Transmission

Type
-
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
161.4
Width (in)
75.9
Height (in)
107.1
Operating Weight (lb)
7,507

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
10.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
I,II (implies Three-Point Hitch due to category types)
Hitch Category
Category 2 and Category 1
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
-
Brake Type
-
Hydraulic System Type
-
