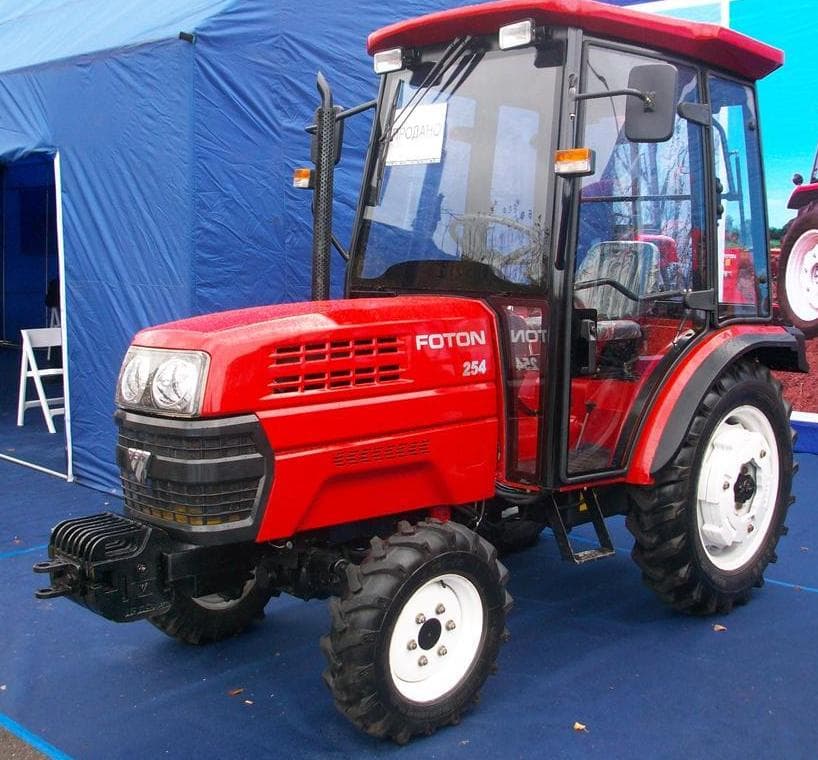

Foton 254

Last Updated: June 2024

Overview

The Foton 254 is a tractor that has been fitted with a TY295I diesel engine, capable of delivering 24.6 horsepower and running at a rated 2300 RPM. Its engine displacement is 100.1 cubic inches with a bore and stroke measuring 3.937 inches by 4.134 inches respectively. The tractor's cooling system can hold up to 10.6 quarts, ensuring consistent operation and engine temperature. The tractor is equipped with 6 or 8 forward gears and 2 reverse, allowing adaptability in various working conditions. Physical dimensions are notable, with a length of 106.6 inches, width of 49.2 inches, and height of 53.8 inches. Its agricultural tires, however, leave the specific dimensions unspecified. While detailed information such as the chassis, drive type, or hitch lift capacity remains unknown, it's clear that the Foton 254 offers the essentials for general farming purposes with a straightforward mechanical design.
Show more...

Key Specifications

Power Output: 24.6

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Foton
Model
TY295I
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
2
Displacement (ci)
100.1
Bore (in)
3.937
Stroke (in)
4.134
Rated RPM
2300
Power Output (hp)
24.6

Transmission

Type
-
Forward Gears
8
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
106.6
Width (in)
49.2
Height (in)
53.8
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
10.6
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 0
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
