Fordson Fordson N

Last Updated: June 2024

Overview

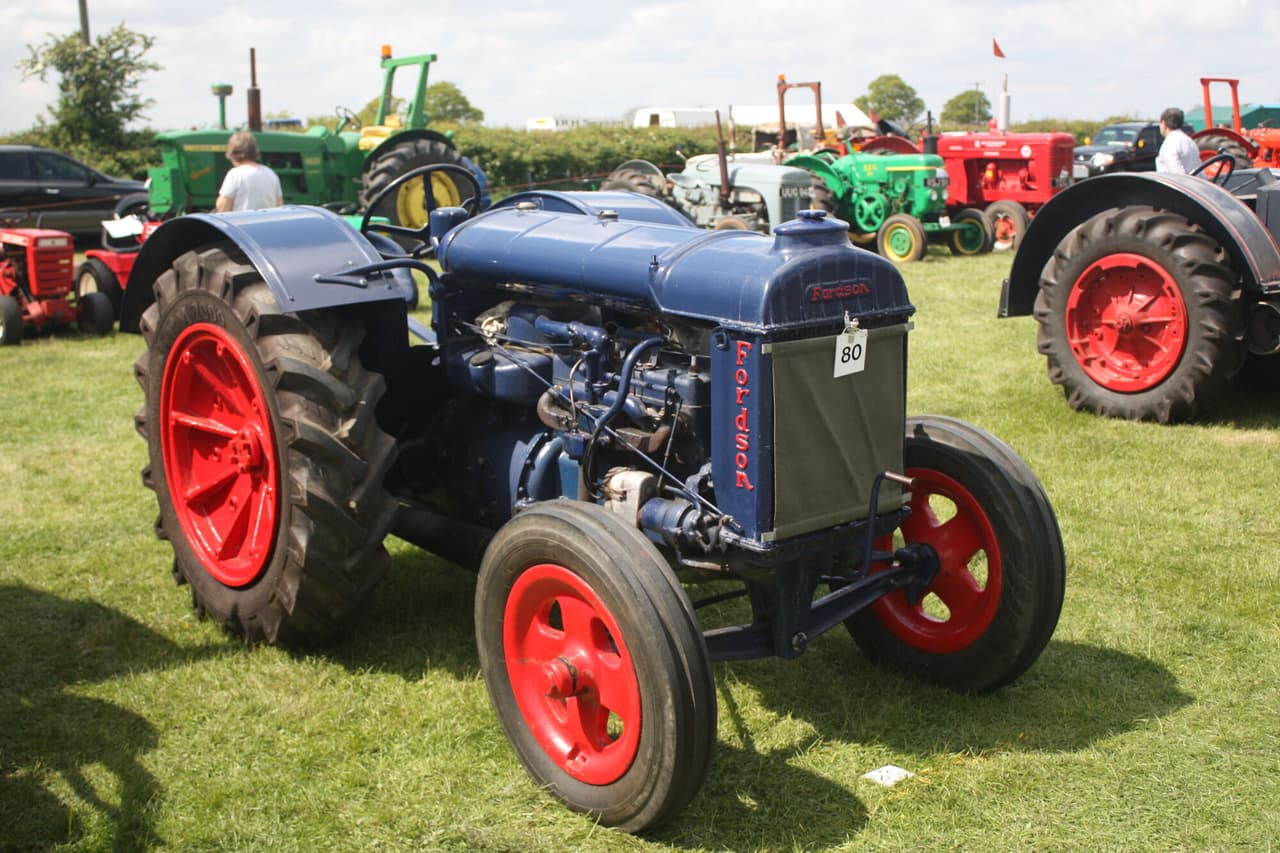

The Fordson N tractor, an iconic utility tractor, was a trusty workhorse of its time. Developed by Fordson, a subsidiary of Ford, this model was a continuation of the pioneering approach taken by Ford in the tractor industry. With its 26 horsepower engine capable of 1100 RPM and a robust yet simple gear transmission offering 3 forward and 1 reverse gear, the Fordson N was designed to address a variety of agricultural tasks. Its 4-cylinder engine accepted both kerosene and gasoline, which provided owners with options depending on fuel availability and cost. Known for its durability and straightforward operation, the tractor was quite popular in its era. Its steel wheels, hand-crank starter, and substantial weight of 3600 pounds were characteristic of the technology of the time and still attract enthusiasts today due to their historical significance and engineering simplicity.
Show more...

Key Specifications

Category: Utility

Power Output: 26

Transmission: Gear

Operating Weight: 3600

Fuel Type: Kerosene, Gasoline

Fordson Fordson N vs. Similar Tractors

Power Output
Below Average
Greater than 20% of similar tractors.
Operating Weight
Average
Greater than 31% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Kerosene, Gasoline
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
267
Bore (in)
4.125
Stroke (in)
5
Rated RPM
1100
Power Output (hp)
26

Transmission

Type
Gear
Forward Gears
3
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
102
Width (in)
63
Height (in)
55.1
Operating Weight (lb)
3600

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
42
Rear Tire Width (in)
12
Front/Rear Rim Diameter (in)
-
Tire Type
Steel
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Hand-crank
Brake Type
-
Hydraulic System Type
-
