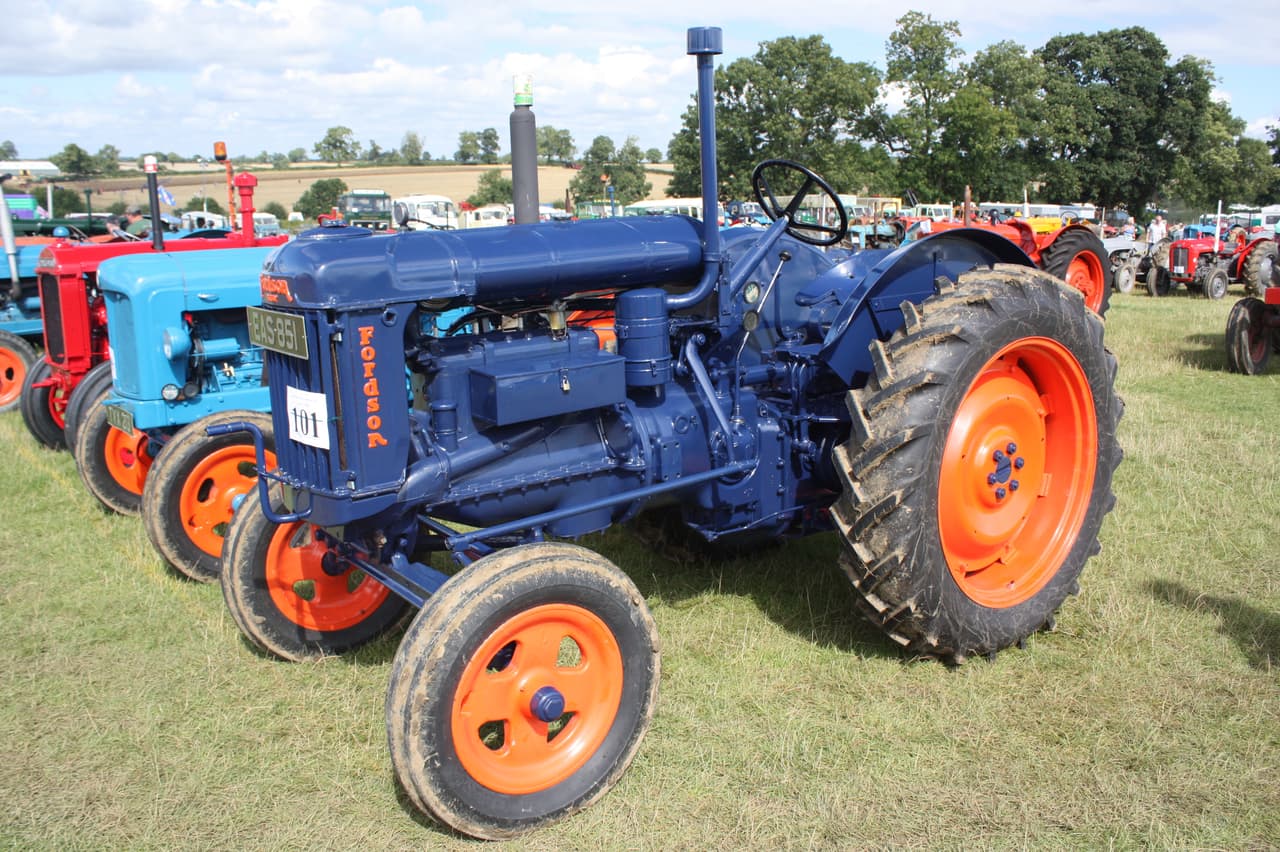

Fordson E27N Major

Last Updated: June 2024

Overview

The Fordson E27N Major is a utility tractor that was designed to serve a variety of roles on the farm. The tractor is available with either a Ford 4.4L 4-cylinder gasoline engine or a Perkins 4.7L 6-cylinder diesel engine, both of which have a bore and stroke of 5.00 inches, although their bore diameters are 4.125 inches for the Ford and 3.50 inches for the Perkins. With a power output of 45 horsepower, the E27N Major was considered a substantial tractor during its era. It has a modest gear-drive transmission with 3 forward gears and 1 reverse, providing basic but sturdy operation for different tasks. The tractor's operating weight stands at 4340 pounds, and its dimensions include a length of 133 inches, a width of 65 inches, and a height of 82 inches. Standard tire sizes are 6.00-19 in the front and 11.00-36 in the rear, suitable for various agricultural applications. The Fordson E27N Major showcases a classic design for its time with a emphasis on reliability and versatility in agricultural tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 45 hp

Transmission: Gear

Operating Weight: 4340

Fuel Type: Gasoline, Diesel

Fordson E27N Major vs. Similar Tractors

Power Output
Average
Greater than 43% of similar tractors.
Operating Weight
Average
Greater than 39% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford, Perkins
Model
Ford: Unknown, Perkins: Unknown
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline, Diesel
Induction Type
-
Cylinders
Ford: 4-cyl, Perkins: 6-cyl
Displacement (ci)
Ford: 267 ci, Perkins: 288 ci
Bore (in)
Ford: 4.125 in, Perkins: 3.50 in
Stroke (in)
5.00 in
Rated RPM
Ford: 1200, Perkins: 1500
Power Output (hp)
45 hp

Transmission

Type
Gear
Forward Gears
3
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
133
Width (in)
65
Height (in)
82
Operating Weight (lb)
4340

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
48.1 qts
Front Tire Diameter (in)
19
Front Tire Width (in)
6
Rear Tire Diameter (in)
36
Rear Tire Width (in)
11
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
