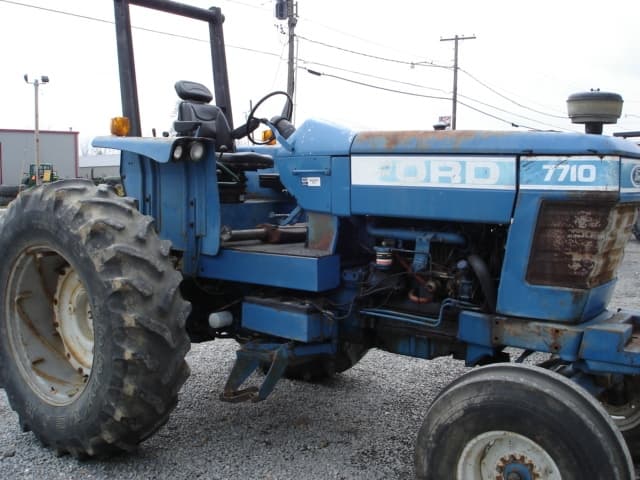

Ford-New Holland 7710

Last Updated: June 2024

Overview

The Ford-New Holland 7710 is a row-crop tractor notably recognized for its versatility and reliability in various agricultural tasks. With a turbocharged diesel engine at its heart, this tractor boasts a 97 horsepower output, and a displacement of 268 cubic inches. The tractor can provide operators with a selectable 4x2 2WD or 4x4 4WD chassis to match the demands of different terrains and applications. Equipped with a partial power shift transmission, it offers 16 forward and 8 reverse gears, allowing for smooth operation under load and easier maneuvering. With its power steering, handling the tractor becomes less strenuous, leading to increased productivity over long hours in the field. The Ford 7710's robust, uncomplicated design and excellent power output make this tractor a valued workhorse for farmers seeking efficiency and durability.
Show more...

Key Specifications

Category: Row Crop

Power Output: 97

Transmission: Partial power shift / Synchromesh partial power shift

Drive Type: 2WD / 4WD

Operating Weight: 8650

Fuel Type: Diesel

Image Gallery

Ford-New Holland 7710 Tractor Ford-New Holland 7710 Tractor Ford-New Holland 7710 Tractor Ford-New Holland 7710 Tractor Ford-New Holland 7710 Tractor Ford-New Holland 7710 Tractor Ford-New Holland 7710 Tractor Ford-New Holland 7710 Tractor Ford-New Holland 7710 Tractor Ford-New Holland 7710 Tractor

Ford-New Holland 7710 vs. Similar Tractors

Power Output
Below Average
Greater than 19% of similar tractors.
Operating Weight
Below Average
Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
268
Bore (in)
4.4
Stroke (in)
4.4
Rated RPM
2100
Power Output (hp)
97

Transmission

Type
Partial power shift / Synchromesh partial power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
151.3 / 154.7
Width (in)
76.9
Height (in)
86.3 / 111 / 114.6 / 116.8
Operating Weight (lb)
8650

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD / 4x4 4WD
Drive Type
2WD / 4WD
Steering Type
Power
Coolant Capacity (qts)
18
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
