Ford-New Holland 6610

Last Updated: June 2024

Overview

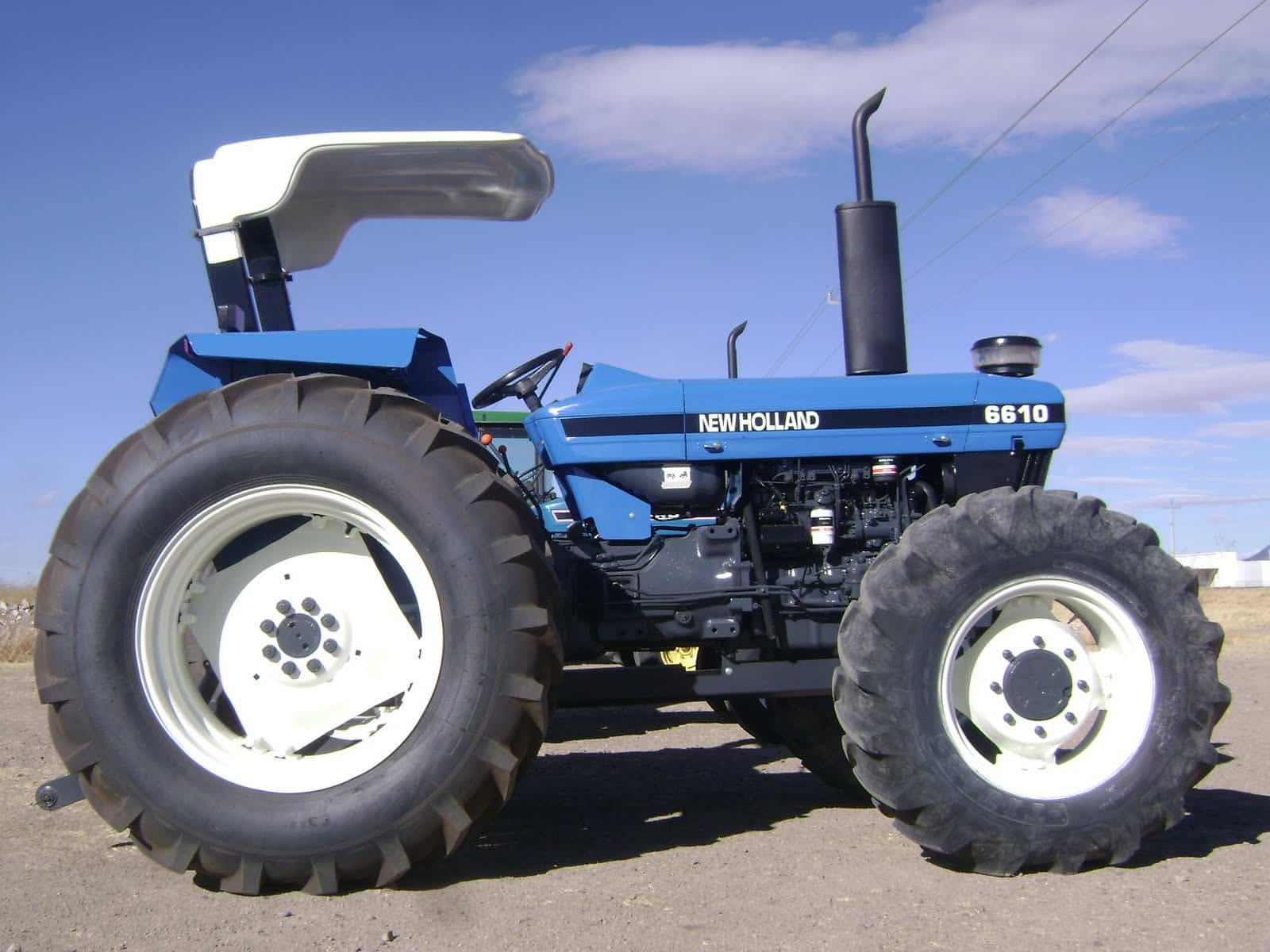

The Ford-New Holland 6610 is a versatile utility tractor that was part of Ford-New Holland's lineup from 1982 until 1993. The tractor boasts a reliable Ford four-cylinder diesel engine with a displacement of 268 cubic inches and produces 78.4 horsepower at 2100 rpm. Whether equipped with a two-post ROPS or an optional cab, the 6610 provides comfortable operation and is equipped with power assist steering and differential mechanical wet disc brakes for dependable control and performance. Its hydraulic capacity and pressure support a range of functional attachments, making the 6610 an effective workhorse for various agricultural tasks. The 6610 was offered with multiple transmission options including an 8 or 16 forward gear synchromesh or a partial power shift, accommodating the needs of different farming operations. This tractor's three-point hitch system allows for easy attachment of tools and implements. With its open-center hydraulic system and independent rear PTO, the 6610 is engineered for efficiency and productivity in the field.
Show more...

Key Specifications

Category: Utility

Power Output: 78.4

Transmission: Synchromesh or Partial power shift

Drive Type: 2WD or 4WD

Fuel Type: Diesel

Lift Capacity: 4,145

Ford-New Holland 6610 vs. Similar Tractors

Power Output
Average
Greater than 70% of similar tractors.
Hitch Capacity
Below Average
Greater than 10% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford
Model
Ford
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural aspirated
Cylinders
4
Displacement (ci)
268
Bore (in)
4.41
Stroke (in)
4.41
Rated RPM
2100
Power Output (hp)
78.4

Transmission

Type
Synchromesh or Partial power shift
Forward Gears
8 or 16
Reverse Gears
2 or 4 or 8
Total Gears
-

Dimensions

Length (in)
144.9
Width (in)
68.5
Height (in)
95.7 (ROPS) or 106.3 (Cab)
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
540/1000 (optional)
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
2WD or 4WD
Steering Type
Power assist
Coolant Capacity (qts)
13.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
1993
Hitch Type
Three-Point Hitch
Hitch Category
Category II
Hitch Position
Rear
Hitch Capacity (lb)
4,145
Operator Station Type
Two-post ROPS or Cab (optional)
Starter Type
Electric
Brake Type
Differential mechanical wet disc
Hydraulic System Type
Open center
