Ford 9030

Last Updated: June 2024

Overview

The Ford 9030 is a utility tractor known for its versatile 4x4 articulated 4WD chassis. It is equipped with a robust Ford BSD444T, a turbocharged diesel engine that offers 116 horsepower and operates at a rated RPM of 2500. The engine is liquid-cooled, ensuring efficient thermal regulation even under heavy workload. The tractor encompasses a hydrostatic transmission system that provides a seamless operational experience with infinite forward and reverse gears. It possesses the capability to tackle challenging agricultural tasks, thanks to its considerable operating weight of 10150 lbs and a notable ground clearance of 16.3 inches. The Ford 9030 was designed with a focus on functionality and performance, which is upheld by its articulated power steering and closed-center load-sensing hydraulic system.

Key Specifications

Category: Utility

Power Output: 116 hp

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 10150 lbs

Fuel Type: Diesel

Image Gallery

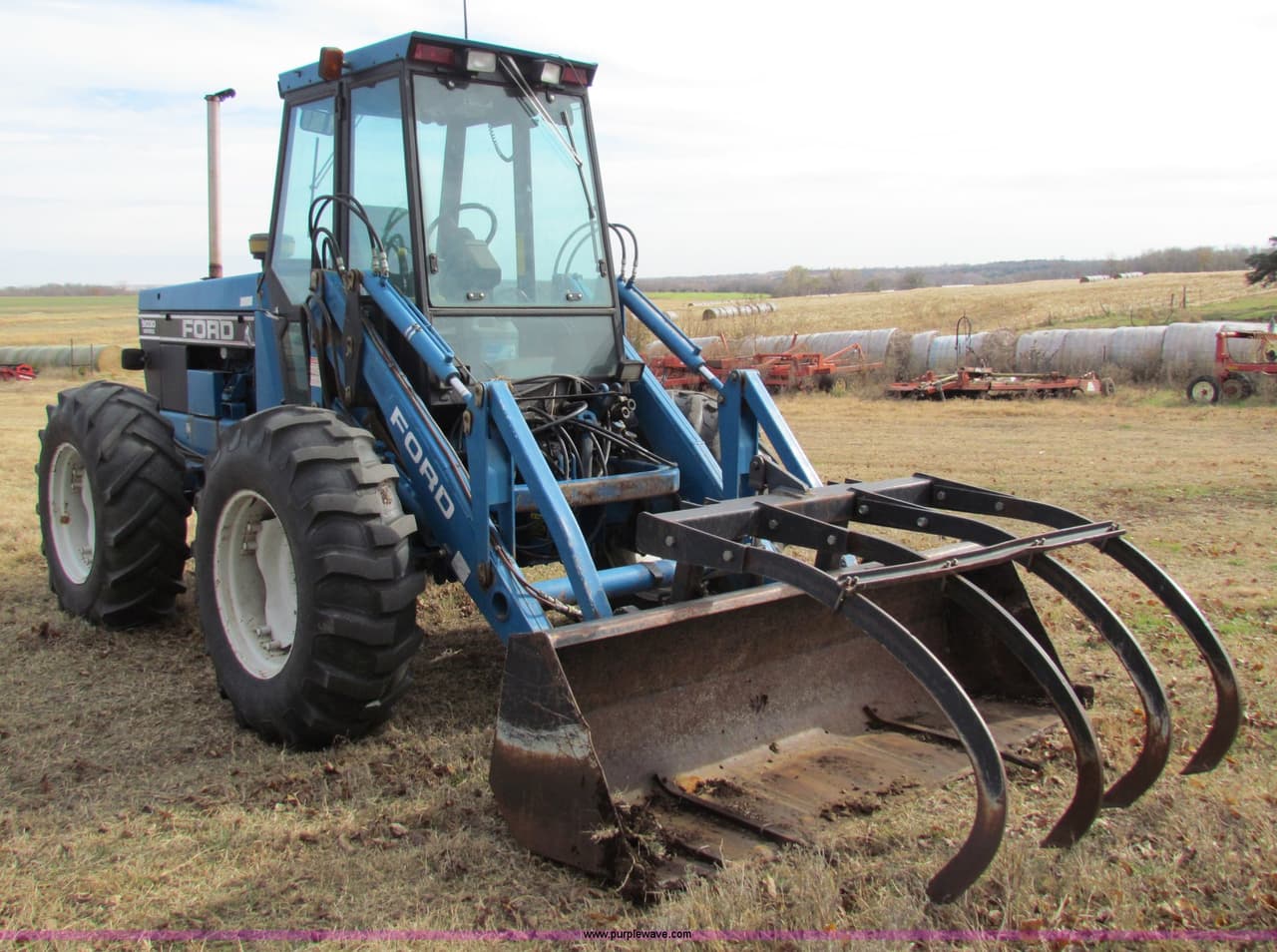

Ford 9030 Tractor

Ford 9030 vs. Similar Tractors

Power Output

Above Average

Greater than 87% of similar tractors.

Operating Weight

Average

Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ford
Model: BSD444T
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 268 ci
Bore (in): 4.40 in
Stroke (in): 4.4
Rated RPM: 2500
Power Output (hp): 116 hp

Transmission

Type: Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 180 in
Width (in): 81.3 in
Height (in): 117 in (Assumed to be the tallest point, the exhaust)
Operating Weight (lb): 10150 lbs

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 articulated 4WD
Drive Type: 4WD
Steering Type: Articulated Power
Coolant Capacity (qts): 25.6 qts
Front Tire Diameter (in): 28 in
Front Tire Width (in): 16.9 in (Assumed from tire specification "16.9x28")
Rear Tire Diameter (in): 28 in
Rear Tire Width (in): 16.9 in (Assumed from tire specification "16.9x28")
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural)
Manufacture - End Year: -
Hitch Type: Three-Point Hitch (Assumed from "Rear Type: II/I")
Hitch Category: Category 2/1 (Assumed from "Rear Type: II/I")
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Cab
Starter Type: Electric (Assumed from "Engine - Starter volts: 12")
Brake Type: -
Hydraulic System Type: Closed-center load-sensing
