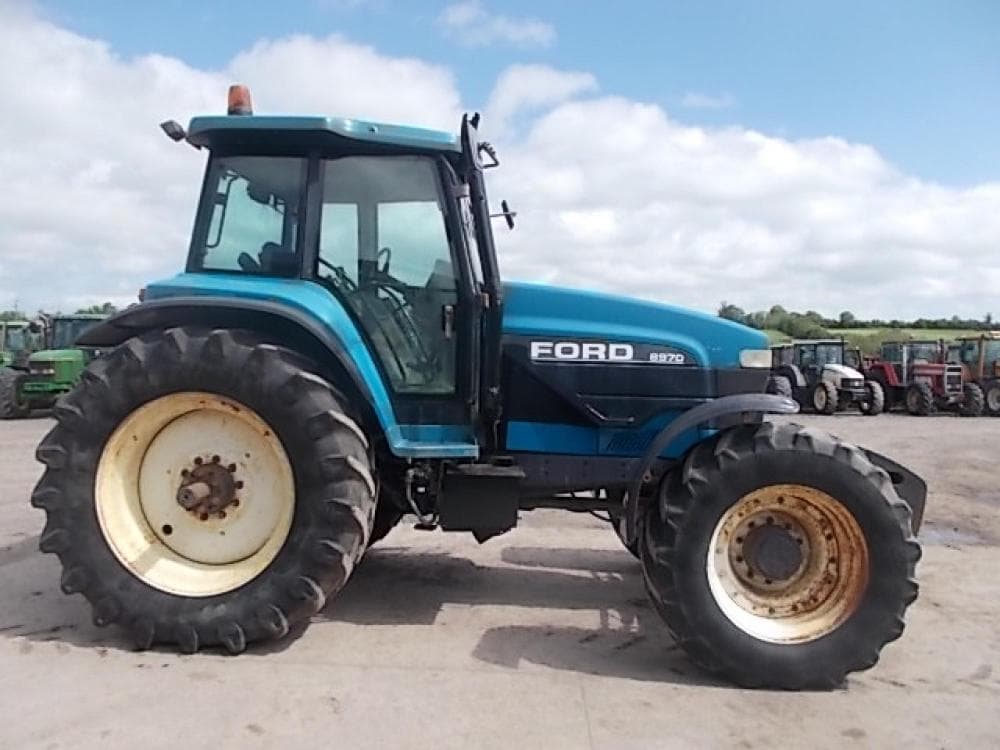

Ford 8970

Last Updated: June 2024

Overview

The Ford 8970 is a powerful and versatile row-crop tractor that was part of the 70 Genesis Series, produced by Ford in Winnipeg, Manitoba, Canada from 1993 to 2002. This model featured a robust turbocharged diesel engine with a six-cylinder, liquid-cooled configuration, providing a substantial 240 horsepower. It came equipped with a full power shift transmission, featuring 16 forward and 8 reverse gears, allowing seamless power delivery and a variety of speed options for different agricultural tasks. The tractor could be equipped with either a 2WD or an optional 4WD system, accommodating diverse farming needs. Hydrostatic power steering and wet disc brakes contributed to ease of use and safety. The Ford 8970 also boasted a three-point hitch with a lift capacity of 15,000 lbs and a 1000 rpm independent PTO. The cab offered a comfortable operator station, and the tractor was designed with longevity in mind, having additional features like the optional MegaFlow hydraulics with a high flow rate, enhancing its capability for demanding tasks.
Show more...

Key Specifications

Category: Row Crop

Power Output: 240

Transmission: Full power shift

Drive Type: 4WD optional

Operating Weight: 16950 (2WD), 19350 (4WD maximum)

Fuel Type: Diesel

Ford 8970 vs. Similar Tractors

Power Output
Above Average
Greater than 81% of similar tractors.
Hitch Capacity
Above Average
Greater than 73% of similar tractors.
Operating Weight
Above Average
Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
456
Bore (in)
4.41
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
240

Transmission

Type
Full power shift
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
196.7
Width (in)
96.7
Height (in)
121.3
Operating Weight (lb)
16950 (2WD), 19350 (4WD maximum)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
4WD optional
Steering Type
Hydrostatic power
Coolant Capacity (qts)
26.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag front: 14L-16.1 (2WD), Ag rear: 18.4R42
Manufacture - End Year
2002
Hitch Type
Three-Point Hitch
Hitch Category
Category III
Hitch Position
Rear
Hitch Capacity (lb)
15000
Operator Station Type
Cab
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Closed center load sensing (CCLS)
