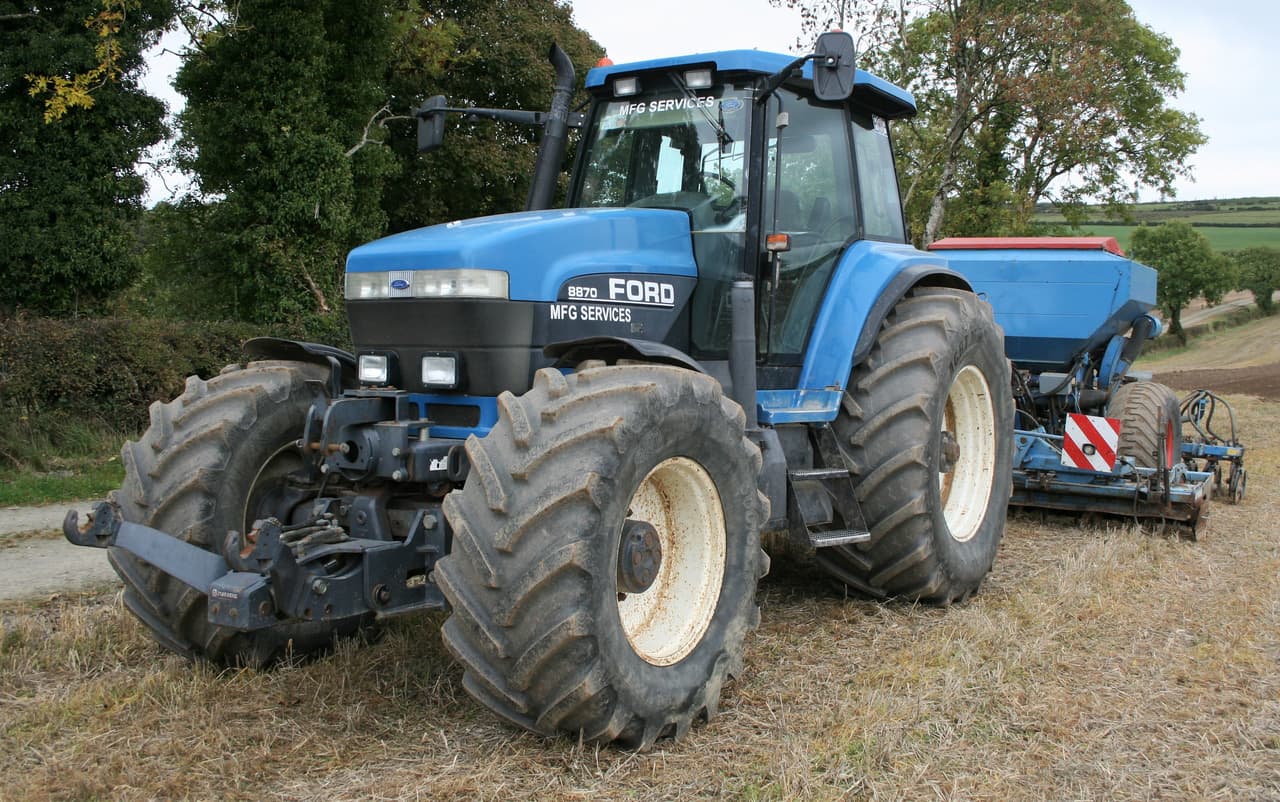

Ford 8870

Last Updated: June 2024

Overview

The Ford 8870 is a versatile row-crop tractor that was part of the 70 Genesis series manufactured by Ford from 1993 to 2002. It is available with either two-wheel drive (2WD) or optional four-wheel drive (4WD) and features hydrostatic power steering and wet disc brakes for ease of operation and effective control. Standardly equipped with a cozy cab, this tractor is outfitted with a powerful turbocharged six-cylinder diesel engine that provides 210 horsepower, ensuring ample performance for a variety of farming tasks. The Ford 8870 showcases a hydraulic system using closed center load sensing technology and an independent PTO rated at 1000 rpm, which, combined with its three-point hitch (Category 3), can handle a lift capacity of up to 12,500 lbs at the hitch ends. This model's rugged design is complemented by its ability to accommodate large agricultural tires, with different sizes for the front depending on whether it is a 2WD or 4WD configuration.
Show more...

Key Specifications

Category: Row Crop

Power Output: 210

Transmission: Full power shift, Creeper (optional)

Drive Type: 2WD/4WD

Operating Weight: 16700 (2WD), 19000 (Max capacity)

Fuel Type: Diesel

Ford 8870 vs. Similar Tractors

Power Output
Above Average
Greater than 75% of similar tractors.
Hitch Capacity
Average
Greater than 64% of similar tractors.
Operating Weight
Above Average
Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford
Model
Ford
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
456
Bore (in)
4.41
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
210

Transmission

Type
Full power shift, Creeper (optional)
Forward Gears
16
Reverse Gears
9
Total Gears
-

Dimensions

Length (in)
196.7
Width (in)
96.7
Height (in)
121.3 (cab)
Operating Weight (lb)
16700 (2WD), 19000 (Max capacity)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD (optional)
Drive Type
2WD/4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
26.4
Front Tire Diameter (in)
14L-16.1 (2WD)
Front Tire Width (in)
-
Rear Tire Diameter (in)
18.4R42
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
2002
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
12500 lbs
Operator Station Type
Cab (standard)
Starter Type
Electric
Brake Type
Wet disc
Hydraulic System Type
Closed center load sensing (CCLS)
