Ford 8830

Last Updated: June 2024

Overview

The Ford 8830 is a row-crop tractor, manufactured by Ford between 1990 and 1993. Available in both 2WD and 4WD versions, the tractor is designed to cater to various agricultural tasks with ease. It owes its power to a robust turbocharged and intercooled diesel engine, featuring a displacement of 401 ci, capable of delivering 180 hp at 2200 RPM. It comes with multiple transmission options, with the most complex being an 18-speed forward and 9-reverse gear system. Standing at a height of 115 inches with ROPS and 113.8 inches with the cab option, the Ford 8830 supports a considerable operating weight and a powerful hydraulic system to perform in demanding environments. It provides power steering and power disc brakes for enhanced control and a comfortable operator station that can be chosen between ROPS or an optional cabin.

Key Specifications

Category: Row Crop

Power Output: 180

Drive Type: MFWD - Mechanical Front Wheel Drive

Operating Weight: 12995 (2WD ROPS), 13595 (2WD cab), 14200 (4WD ROPS), 14800 (4WD cab), 15520 (4WD cab Powershift)

Fuel Type: Diesel

Image Gallery

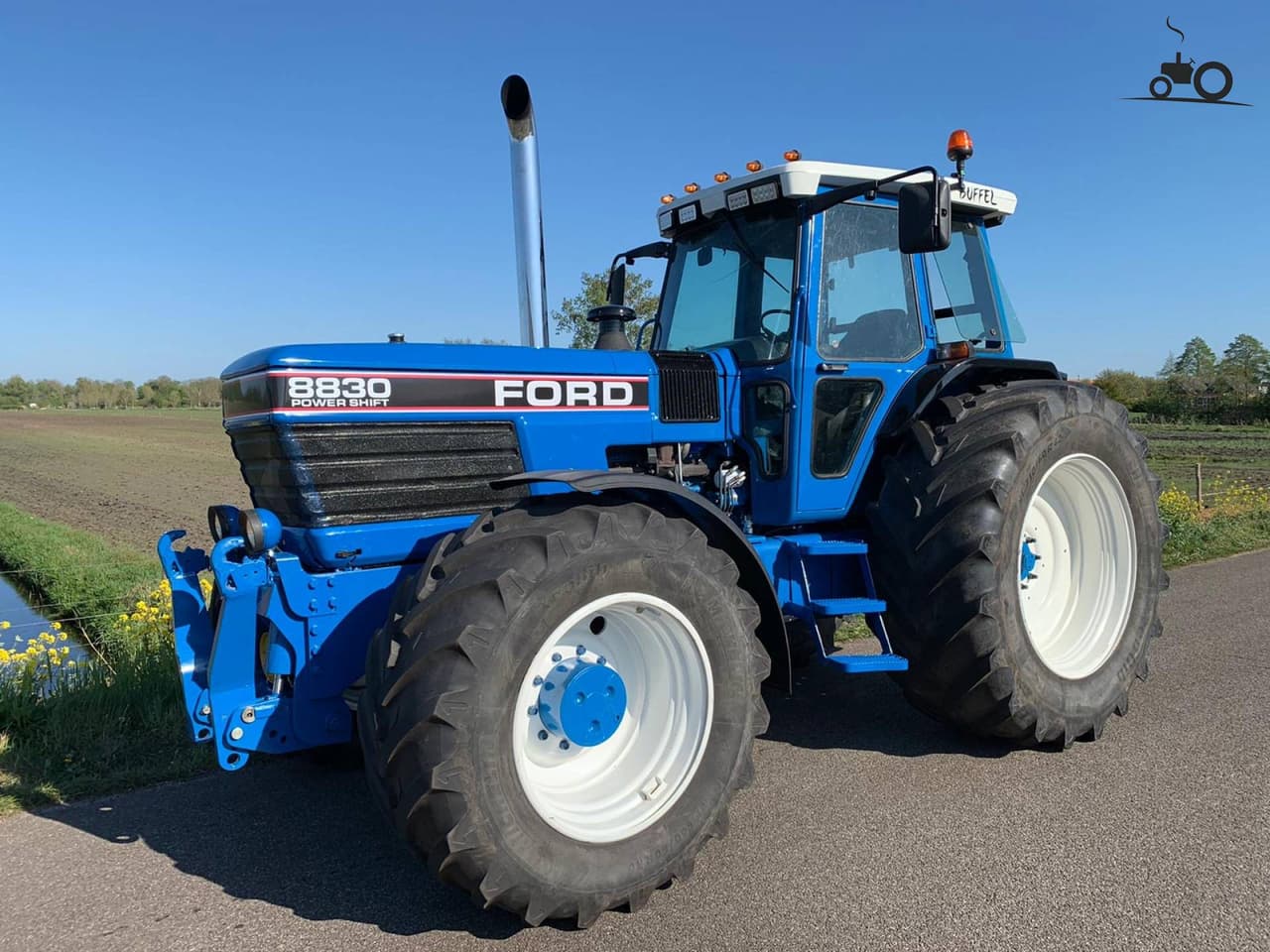

Ford 8830 Tractor

Ford 8830 vs. Similar Tractors

Power Output

Average

Greater than 67% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ford
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged and intercooled
Cylinders: 6
Displacement (ci): 401
Bore (in): 4.41
Stroke (in): 4.41
Rated RPM: 2200
Power Output (hp): 180

Transmission

Type: -
Forward Gears: 18
Reverse Gears: 9
Total Gears: -

Dimensions

Length (in): 191
Width (in): 82
Height (in): 115 (ROPS), 113.8 (Cab)
Operating Weight (lb): 12995 (2WD ROPS), 13595 (2WD cab), 14200 (4WD ROPS), 14800 (4WD cab), 15520 (4WD cab Powershift)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 1000
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD - Mechanical Front Wheel Drive
Steering Type: Power
Coolant Capacity (qts): 22.8
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1993
Hitch Type: Three-Point Hitch
Hitch Category: Category III/II
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS or Cab (optional)
Starter Type: Electric
Brake Type: Power disc
Hydraulic System Type: Open center gear pump, dual pumps optional
