Ford 8770

Last Updated: June 2024

Overview

The Ford 8770 tractor was produced between 1993 and 2002 as part of the 70 Genesis Series. It is a powerful utility tractor with a strong Ford engine rated at 190 horsepower and a displacement of 456 cubic inches. The engine is turbocharged, liquid-cooled, and operates with 6 cylinders in an inline configuration. With a full power shift and additional creeper transmission, the tractor offers a wide range of 32 forward and 18 reverse gears, suitable for various agricultural tasks. The three-point hitch at the rear has a Category III classification with a maximum lifting capacity of 31500 lbs. The tractor's robust roster of features is built to handle demanding farm jobs with ease, while the closed center load sensing hydraulic system ensures efficient operation.

Key Specifications

Category: Utility

Power Output: 190

Transmission: Full power shift, Creep

Operating Weight: 16600

Fuel Type: Diesel

Lift Capacity: Maximum at drawbar (lbs) | 31500

Image Gallery

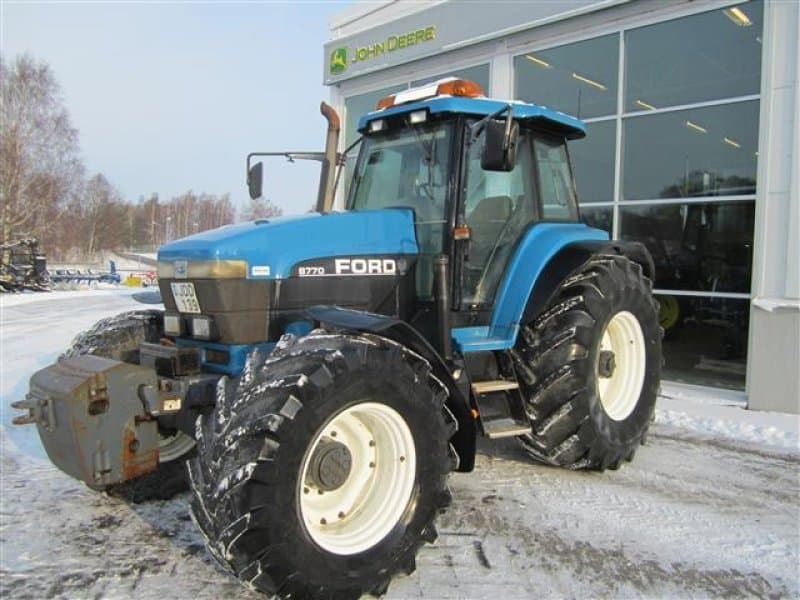

Ford 8770 Tractor

Ford 8770 vs. Similar Tractors

Power Output

Excellent

Greater than 92% of similar tractors.

Hitch Capacity

Excellent

Greater than 92% of similar tractors.

Operating Weight

Average

Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ford
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 6
Displacement (ci): 456
Bore (in): 4.4
Stroke (in): 5
Rated RPM: 2100
Power Output (hp): 190

Transmission

Type: Full power shift, Creep
Forward Gears: 32
Reverse Gears: 18
Total Gears: -

Dimensions

Length (in): 196.7
Width (in): 96.7
Height (in): 124.4
Operating Weight (lb): 16600

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: -
Coolant Capacity (qts): 26.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 2002
Hitch Type: Three-point hitch
Hitch Category: III
Hitch Position: Rear
Hitch Capacity (lb): Maximum at drawbar (lbs) | 31500
Operator Station Type: Cab
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Closed center load sensing
