Ford 850

Last Updated: June 2024

Overview

The Ford 850 is a 2WD utility tractor from the 800 series manufactured by Ford in Highland Park, Michigan, USA from 1954 to 1957. It features a Ford EAF engine which is a liquid-cooled, four-cylinder engine running on gasoline or LP-gas, capable of 40 horsepower at 2200 RPM. Transmission is an unsynchronized gear type with 5 forward and 1 reverse gears. The Ford 850 has a chassis configuration of 4x2 2WD, manual steering, and operates with a weight of 3400 pounds. This tractor includes an open operator station, a hydraulic system with an open center, and a transmission PTO with a speed of 540 rpm.

Key Specifications

Category: Utility

Power Output: 40

Transmission: Unsynchronized gear

Drive Type: 2WD

Operating Weight: 3400

Fuel Type: Gasoline/LP-gas

Image Gallery

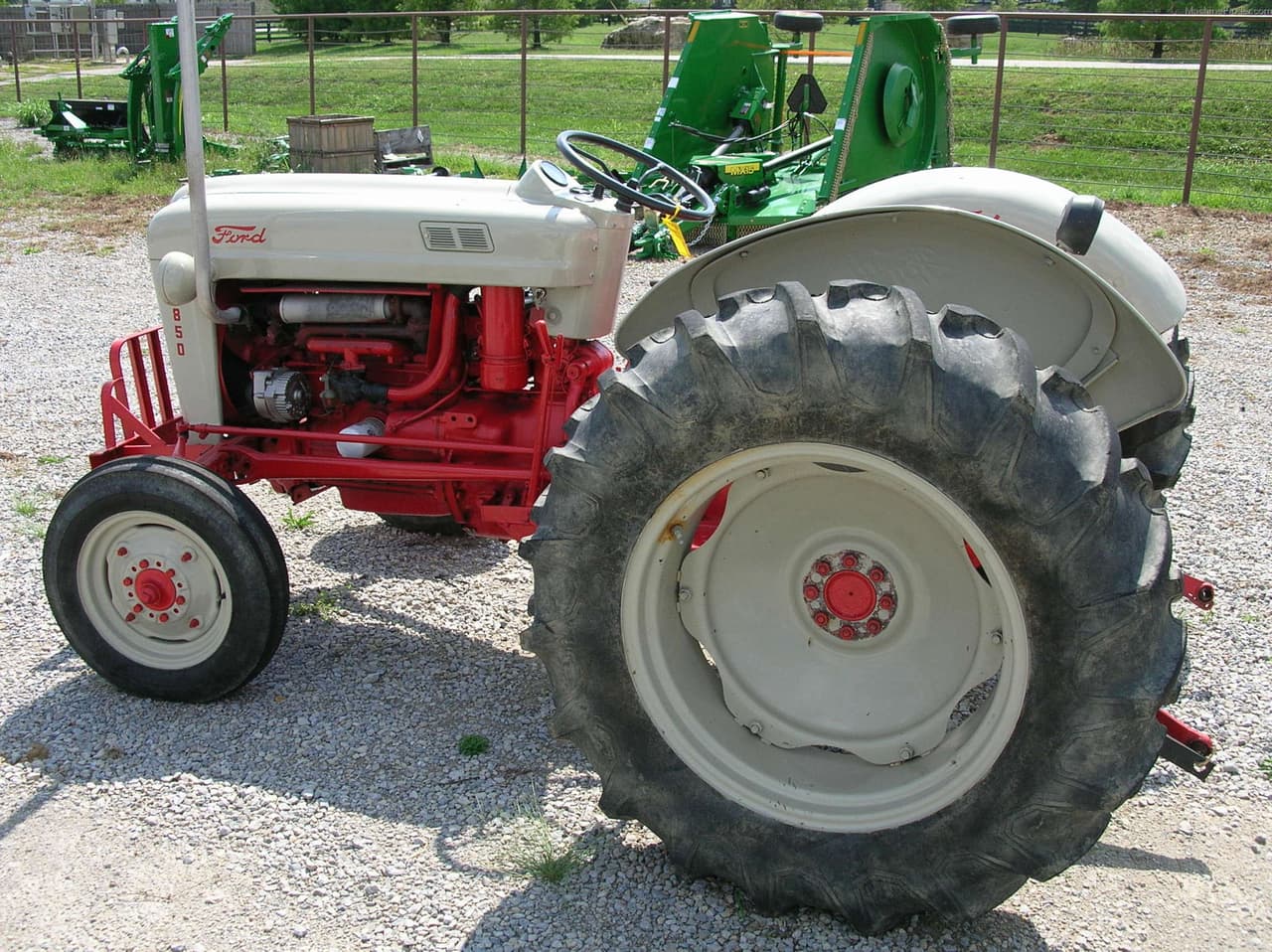

Ford 850 Tractor

Ford 850 vs. Similar Tractors

Power Output

Average

Greater than 37% of similar tractors.

Hitch Capacity

Below Average

Greater than 23% of similar tractors.

Operating Weight

Below Average

Greater than 29% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ford
Model: EAF
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Gasoline/LP-gas
Induction Type: Natural aspirated
Cylinders: 4
Displacement (ci): 172
Bore (in): 3.9
Stroke (in): 3.58
Rated RPM: 2200
Power Output (hp): 40

Transmission

Type: Unsynchronized gear
Forward Gears: 5
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 121.8
Width (in): 64.75
Height (in): 59.3
Operating Weight (lb): 3400

Power Take-Off (PTO)

PTO Type: Transmission
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 15
Front Tire Diameter (in): 16
Front Tire Width (in): 6
Rear Tire Diameter (in): 28
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 1957
Hitch Type: -
Hitch Category: I
Hitch Position: -
Hitch Capacity (lb): 1250
Operator Station Type: Open
Starter Type: Electric
Brake Type: Differential mechanical expanding shoe
Hydraulic System Type: Open center
