Ford 8401

Last Updated: June 2024

Overview

The Ford 8401 is a row-crop tractor that was designed for various agricultural tasks, including planting, tilling, and harvesting. This tractor comes equipped with a 4x2 2WD chassis, making it well-suited for operation on flat terrain and for maneuvering around farm structures. It is powered by a Ford diesel engine that offers a 401.5 cubic inch displacement and delivers 109.25 horsepower, providing the necessary strength for handling heavy-duty work. The power steering feature enhances handling while the Dual Power transmission with 16 forward gears and 4 reverse gears offers a range of speed options to tackle different tasks efficiently. The large 23.1x30 rear tires and a ground clearance of 19 inches contribute to the tractor's overall functionality across different soil conditions.

Key Specifications

Category: Row Crop

Power Output: 109.25

Transmission: Dual Power

Drive Type: 2WD

Operating Weight: 10472

Fuel Type: Diesel

Image Gallery

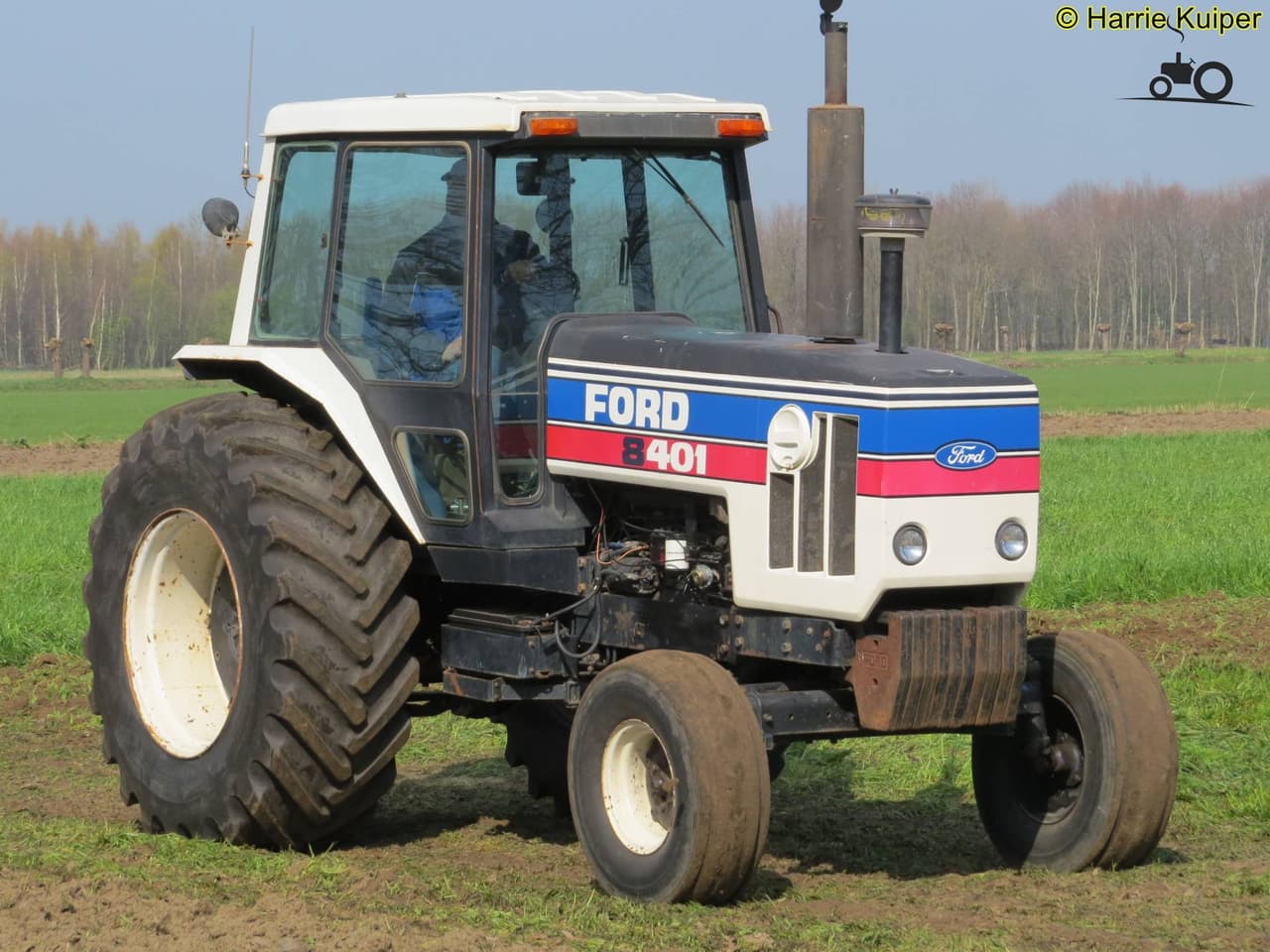

Ford 8401 Tractor

Ford 8401 vs. Similar Tractors

Power Output

Below Average

Greater than 27% of similar tractors.

Operating Weight

Average

Greater than 37% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ford
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 6
Displacement (ci): 401.5
Bore (in): 4.41
Stroke (in): 4.41
Rated RPM: 2440
Power Output (hp): 109.25

Transmission

Type: Dual Power
Forward Gears: 16
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 165
Width (in): -
Height (in): 90 (exhaust)
Operating Weight (lb): 10472

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: Rear Type II
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
