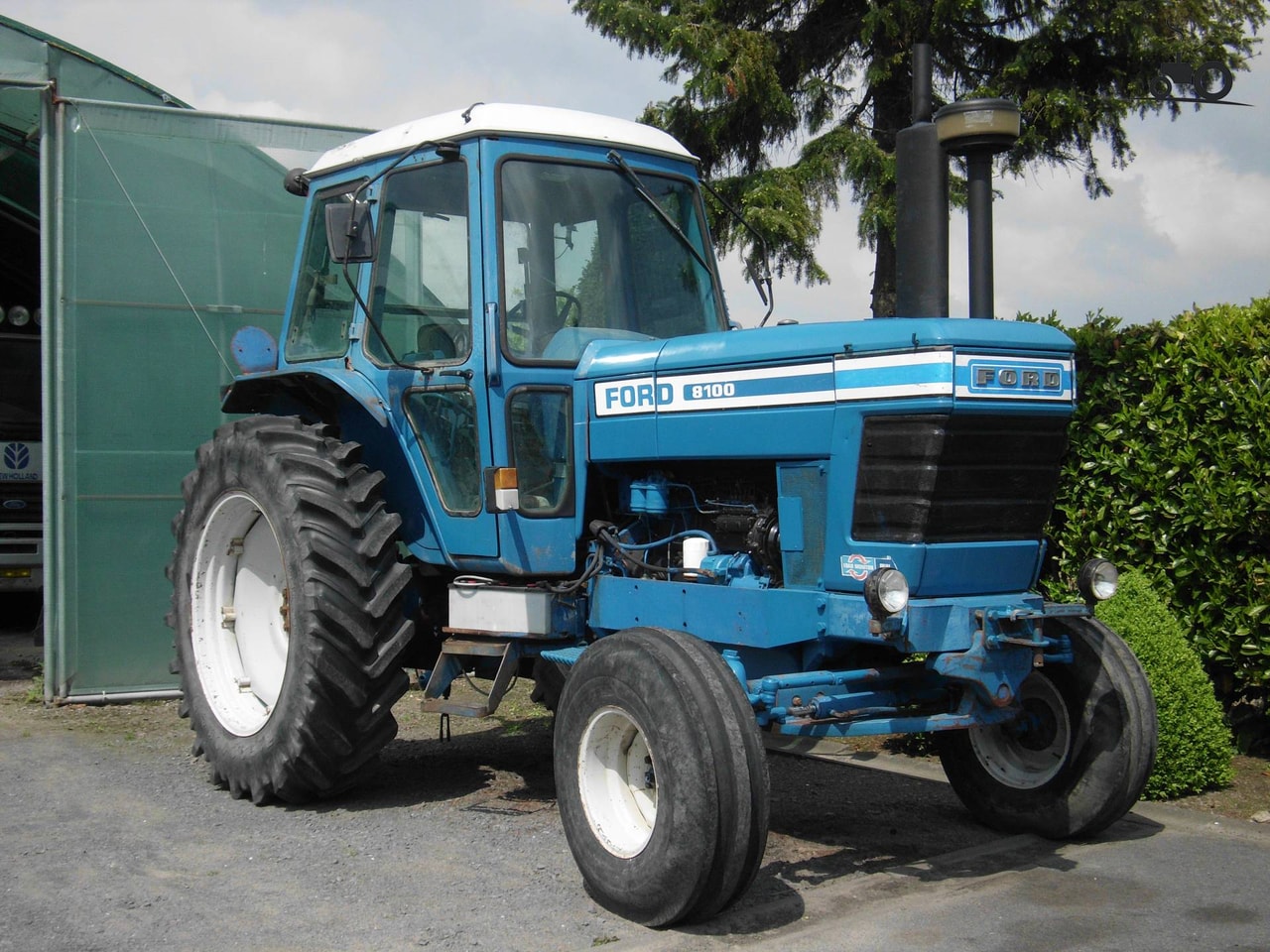

Ford 8100

Last Updated: June 2024

Overview

The Ford 8100 row-crop tractor is a robust and versatile machine that was produced by Ford from 1978 to 1981. It was available in both 2WD and 4WD variants to suit different farming requirements. Under the hood, it features a powerful 6-cylinder, 380 cubic inch, liquid-cooled diesel engine capable of delivering 115 horsepower at 2100 RPM. The Dual Power Transmission, with 16 forward and 4 reverse gears, enables efficient field operation and flexibility in task management. With power steering and a commodious cab as standard features, the Ford 8100 provides comfort and ease of operation throughout long working hours. Its rear three-point hitch and PTO speeds of 540/1000 RPM combined with an open center hydraulic type make it adept at handling a variety of agricultural implements. The Ford 8100 is an exemplary model, reflecting the durability and performance demanded by the agricultural industry of its era.
Show more...

Key Specifications

Category: Row Crop

Power Output: 115

Transmission: Two-speed power shift

Drive Type: Available in 2WD and 4WD

Operating Weight: 9078

Fuel Type: Diesel

Ford 8100 vs. Similar Tractors

Power Output
Average
Greater than 32% of similar tractors.
Operating Weight
Average
Greater than 31% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford
Model
2715E
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
380
Bore (in)
4.21
Stroke (in)
4.53
Rated RPM
2100
Power Output (hp)
115

Transmission

Type
Two-speed power shift
Forward Gears
16
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
165
Width (in)
78.5
Height (in)
Cab: 115, Exhaust: 119
Operating Weight (lb)
9078

Power Take-Off (PTO)

PTO Type
Optional Transmission or Live PTO
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
1000
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
Available in 2WD and 4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1981
Hitch Type
Three-Point Hitch (Rear Type II)
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab (standard)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
