Ford 7810S

Last Updated: June 2024

Overview

The Ford 7810S is a utility tractor that was manufactured by Ford between 1994 and 1998. It came equipped with a 100 hp Ford diesel engine and had options for 4x2 or 4x4 (2WD or 4WD) configurations. Its 6-cylinder engine, with a displacement of 401 cubic inches, is liquid-cooled and operates at a rated RPM of 2100. Transmission options include an unsynchronized gear system with a Dual Power two-speed power shift, providing 16 forward gears and 4 reverse gears. The tractor's recommended operating weight ranges from 7721 lbs for the 2WD version to 8361 lbs for the 4WD version. Measuring 95.9 inches in height with ROPS, the Ford 7810S is designed with hydrostatic power steering and a category II hitch type. With a gear pump hydraulic system and features such as Dual Power, this model is suitable for various utility tasks on the farm.

Key Specifications

Category: Utility

Power Output: 100

Transmission: Unsynchronized gear / Two-speed power shift

Drive Type: 2WD

Operating Weight: 8361 (4WD Weight)

Fuel Type: Diesel

Image Gallery

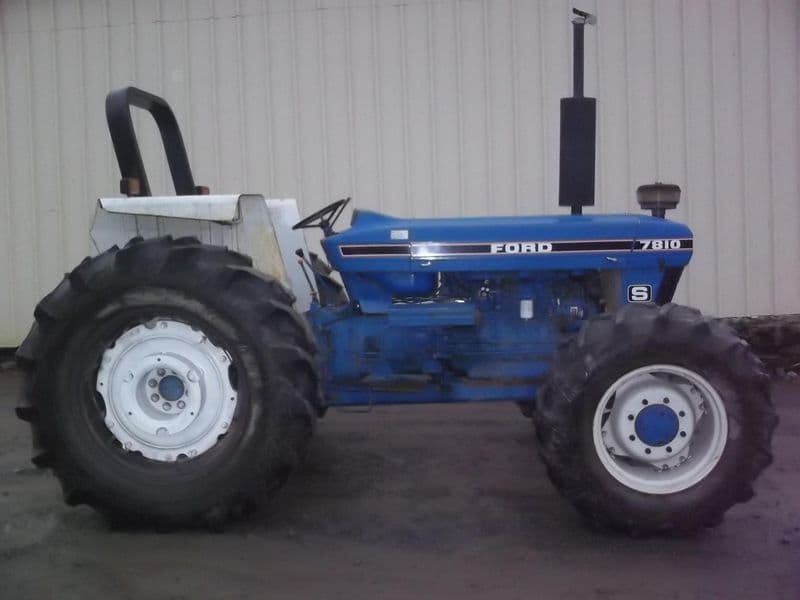

Ford 7810S Tractor

Ford 7810S vs. Similar Tractors

Power Output

Above Average

Greater than 82% of similar tractors.

Operating Weight

Above Average

Greater than 80% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ford
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 6
Displacement (ci): 401
Bore (in): 4.4
Stroke (in): 4.4
Rated RPM: 2100
Power Output (hp): 100

Transmission

Type: Unsynchronized gear / Two-speed power shift
Forward Gears: 16
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 163.4 (4WD Length)
Width (in): -
Height (in): 95.9
Operating Weight (lb): 8361 (4WD Weight)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): 17
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1998
Hitch Type: Category 2
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Gear pump
