Ford 7810

Last Updated: June 2024

Overview

The Ford 7810 is a row-crop tractor known for its dependability and performance in various agricultural applications. With its 4x2 2WD chassis, it offers a balance of maneuverability and traction. The tractor is powered by Ford's 6-cylinder liquid-cooled diesel engine that displaces 401 cubic inches and operates at a rated RPM of 2100. The transmission system provides 8 forward gears and 2 reverse gears, tailored for different field conditions. The tractor weighs 7,750 pounds and rides on a wheelbase of 87.5 inches, with front tires specified as 7.50-16 and rear tires as 16.9-30. The cooling system has a capacity of 16 quarts, ensuring engine efficiency. While specific details about the tractor's other features like size dimensions, hitch type, and hydraulic capacities are not provided, the Ford 7810 remains a significant model in the Ford tractor lineup.

Key Specifications

Category: Row Crop

Drive Type: 2WD

Operating Weight: 7750

Fuel Type: Diesel

Image Gallery

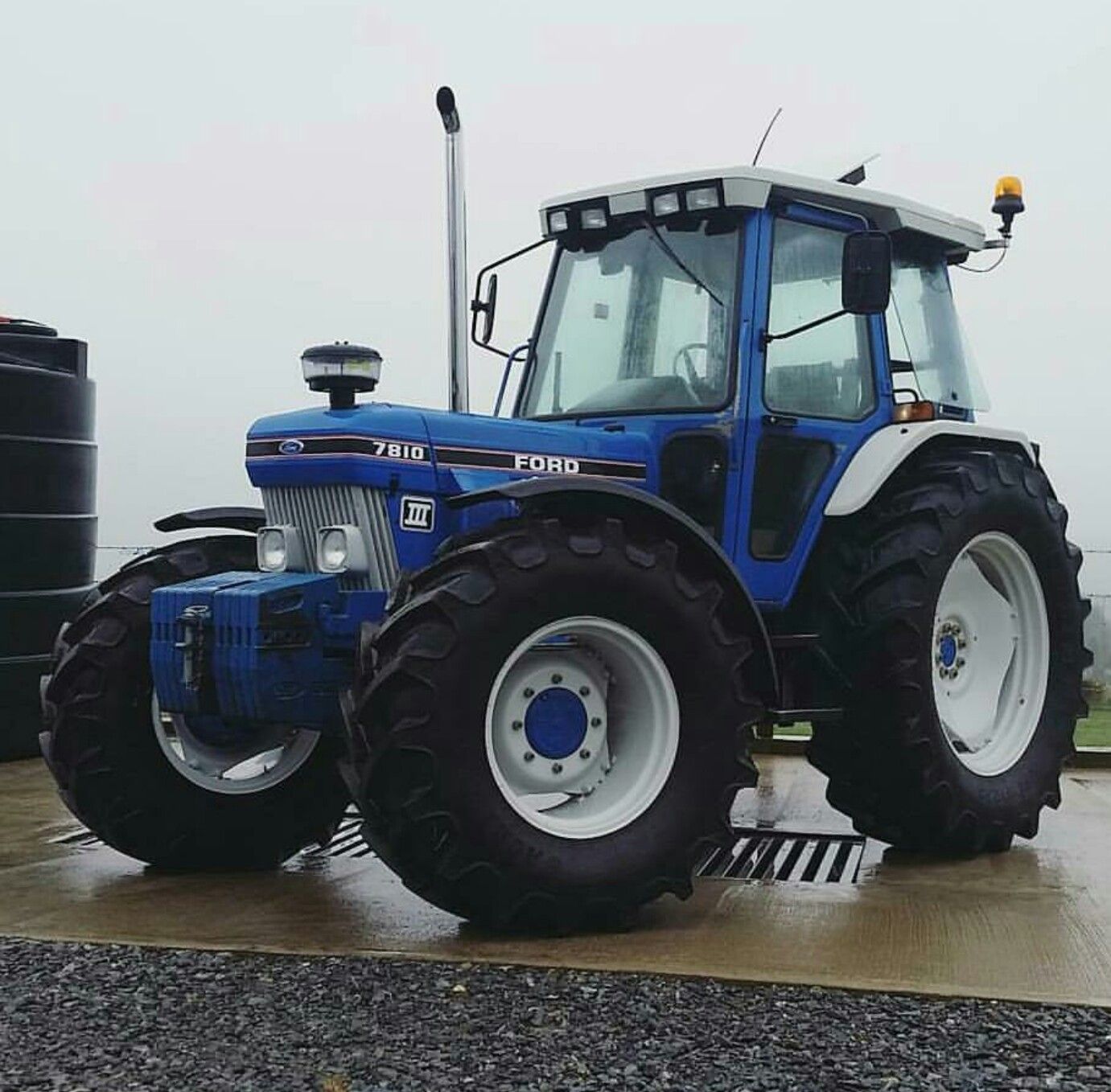

Ford 7810 Tractor

Ford 7810 vs. Similar Tractors

Operating Weight

Below Average

Greater than 27% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ford
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 6
Displacement (ci): 401
Bore (in): 4.4
Stroke (in): 4.4
Rated RPM: 2100
Power Output (hp): -

Transmission

Type: -
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): 7750

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): 16
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (assumption based on "Starter volts")
Brake Type: -
Hydraulic System Type: Open Center
