Ford 7700

Last Updated: June 2024

Overview

The Ford 7700 tractor offers versatility with options for either a 2WD or 4WD chassis. Designed as a row-crop tractor, it was produced from 1975 to 1981 and featured a choice of two engine sizes - a 4.2L or a later 4.4L four-cylinder diesel engine. Equipped with either a 16-speed partial power shift transmission or an 8-speed gear type transmission, the Ford 7700 was built for a range of tasks with a lift capacity of 4,430 lbs and dual PTO speeds of 540 and 1,000 rpm. The tractor stands out for its sturdy operating weight of 8,400 lbs and prominent exhaust height of 120.9 inches. The comfort of the operator was also considered, offering an open station or an optional cab. Steering is power assisted, and stopping power comes from differential wet disc brakes.

Key Specifications

Category: Row Crop

Power Output: 96.7

Transmission: Partial power shift with dry plate clutch / Gear type

Drive Type: 2WD/4WD

Operating Weight: 8,400

Fuel Type: Diesel

Image Gallery

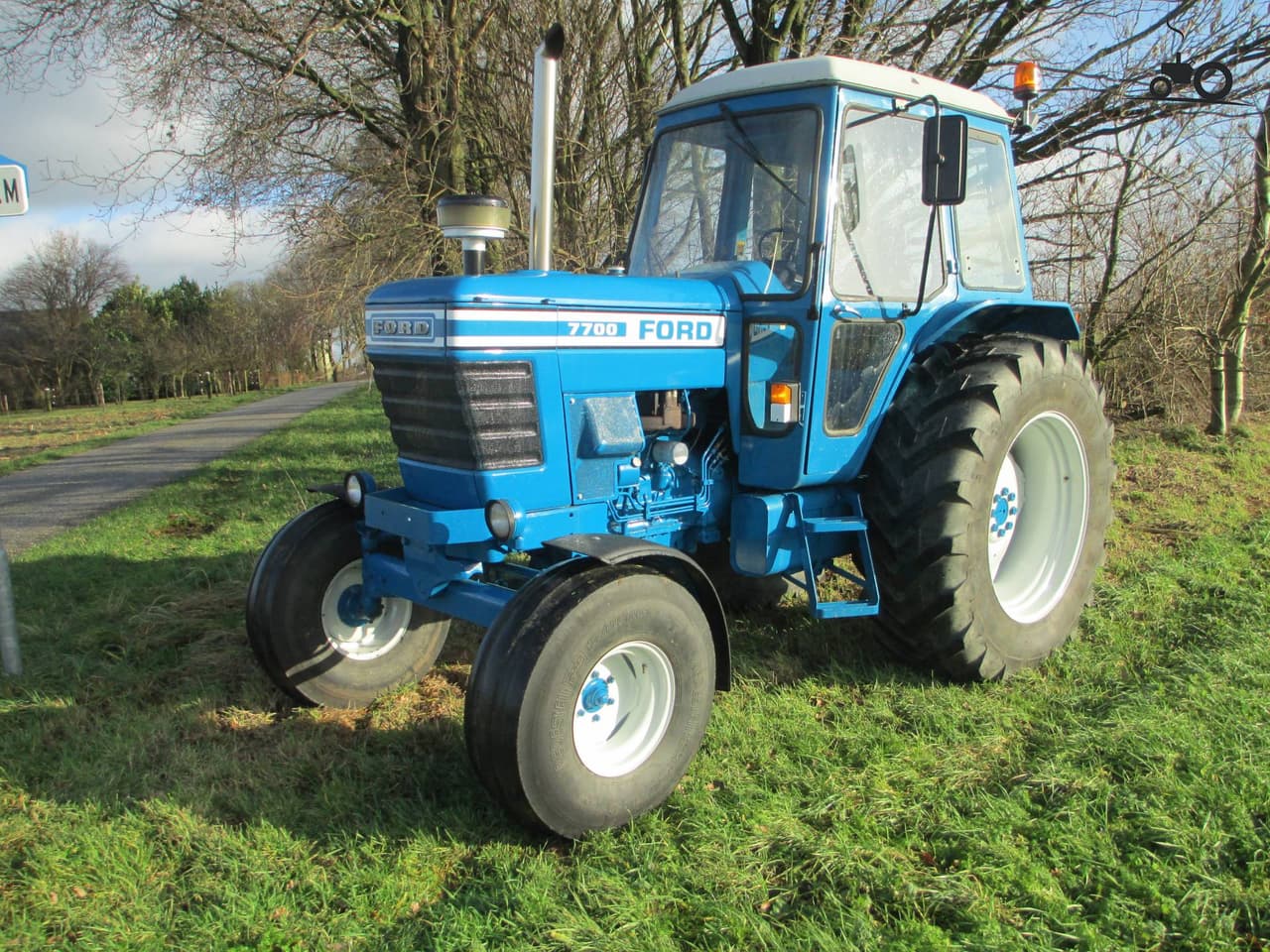

Ford 7700 Tractor

Ford 7700 vs. Similar Tractors

Power Output

Below Average

Greater than 19% of similar tractors.

Hitch Capacity

Poor

Greater than 3% of similar tractors.

Operating Weight

Poor

Greater than 2% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ford
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 256.0 / 268.0
Bore (in): 4.41 both versions
Stroke (in): 4.21 (4.2L) / 4.41 (4.4L)
Rated RPM: 2100
Power Output (hp): 96.7

Transmission

Type: Partial power shift with dry plate clutch / Gear type
Forward Gears: 16 / 8
Reverse Gears: 4 / 2
Total Gears: -

Dimensions

Length (in): 150.2
Width (in): 74
Height (in): 113.4 with cab / 120.9 exhaust
Operating Weight (lb): 8,400

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 1,000
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD/4WD
Steering Type: Power assist
Coolant Capacity (qts): 18.0 / 20.5
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 1981
Hitch Type: -
Hitch Category: II
Hitch Position: -
Hitch Capacity (lb): 4,430
Operator Station Type: Open operator station / Cab (optional)
Starter Type: Electric
Brake Type: Differential wet disc
Hydraulic System Type: -
