Ford 7610S

Last Updated: June 2024

Overview

The Ford 7610S is a utility tractor that was manufactured by Ford between 1994 and 2000. It is powered by a turbocharged diesel, four-cylinder engine, with a displacement of 304 cubic inches, producing 95 horsepower at 2100 RPM. The tractor is available in both two-wheel drive (2WD) and four-wheel drive (4WD) configurations. It features an unsynchronized gear transmission with an option for Dual Power, resulting in 16 forward and 4 reverse gears. This tractor has hydrostatic power steering, a liquid-cooled engine, and dual power shift capabilities. With an operating weight ranging from 5935 to 6575 pounds, it is suitable for a variety of agricultural tasks. The Ford 7610S is equipped with a Category II three-point hitch and a 12-volt electric starter. The 2WD version has a wheelbase of 87.5 inches, while the 4WD has a slightly longer wheelbase of 88.8 inches. Additional specifications such as PTO speeds and brake type are not provided.

Key Specifications

Category: Utility

Power Output: 95

Transmission: Unsynchronized gear and two-speed power shift

Drive Type: 2WD and 4WD

Operating Weight: 5935 (2WD Weight) to 6575 (4WD Weight)

Fuel Type: Diesel

Image Gallery

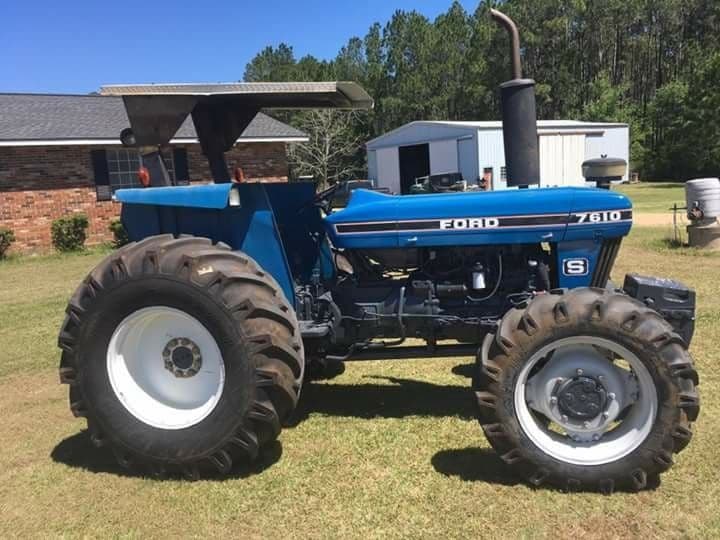

Ford 7610S Tractor

Ford 7610S vs. Similar Tractors

Power Output

Above Average

Greater than 80% of similar tractors.

Operating Weight

Excellent

Greater than 97% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ford
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 304
Bore (in): 4.4
Stroke (in): 5
Rated RPM: 2100
Power Output (hp): 95

Transmission

Type: Unsynchronized gear and two-speed power shift
Forward Gears: 16 (based on Dual Power reference)
Reverse Gears: 4 (based on Dual Power reference)
Total Gears: -

Dimensions

Length (in): 153.1 (4WD Length)
Width (in): -
Height (in): 95.9 (Height ROPS)
Operating Weight (lb): 5935 (2WD Weight) to 6575 (4WD Weight)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD and 4x4 4WD
Drive Type: 2WD and 4WD
Steering Type: Hydrostatic power steering
Coolant Capacity (qts): 13.75
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: AG (Agricultural)
Manufacture - End Year: 2000
Hitch Type: II
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: ROPS (from Height ROPS reference)
Starter Type: 12 volt
Brake Type: -
Hydraulic System Type: Gear pump
