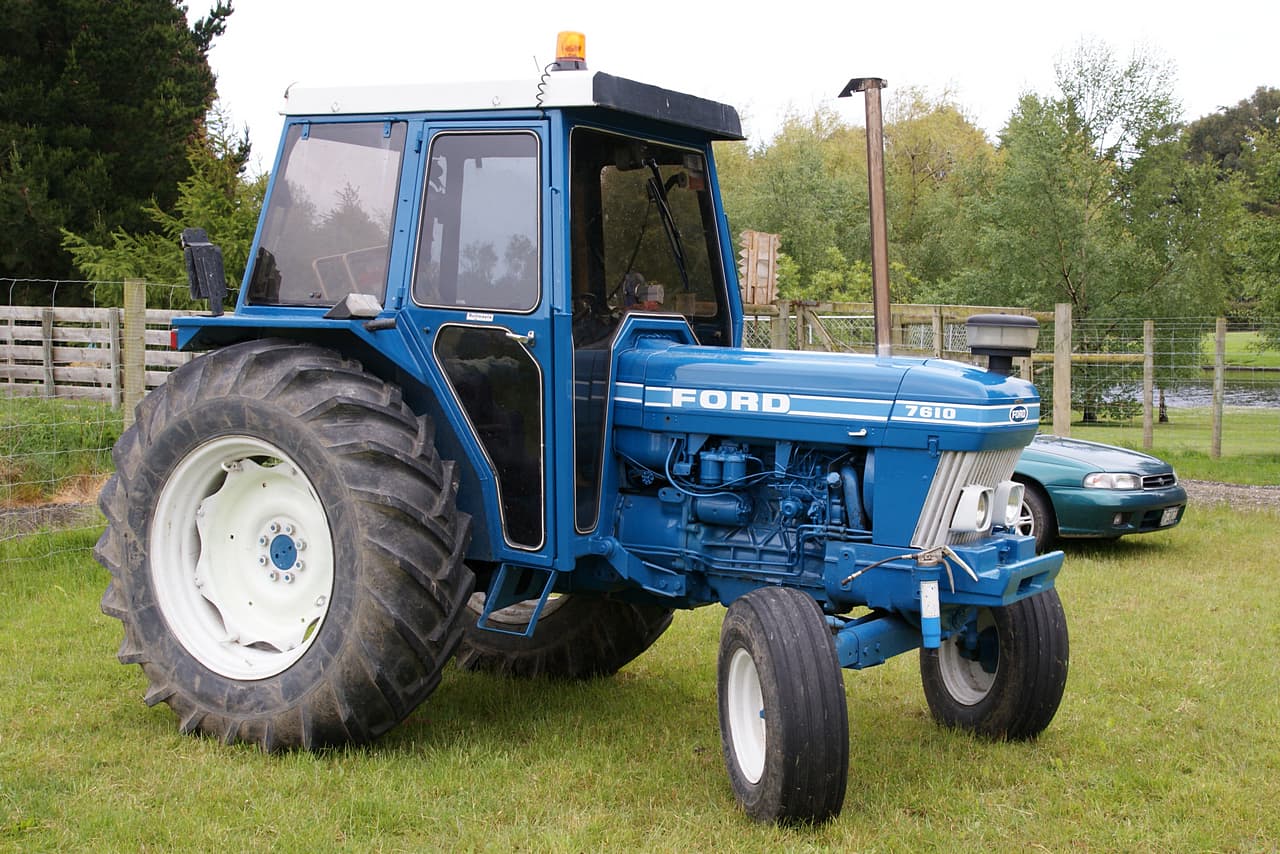

Ford 7610

Last Updated: September 2024

Overview

The Ford 7610 is a utility tractor that was made from 1982 to 1992. It's a strong and reliable machine, perfect for many farm jobs. This tractor has a 2WD drive type and power steering, making it easy to control.

Under the hood, the Ford 7610 has a powerful 4-cylinder diesel engine. It's turbocharged and can produce 97 hp, which is quite strong for its class. The engine size is above average, and its power output is very high compared to other tractors. The tractor has a 16-forward and 8-reverse gear transmission, giving farmers lots of options for different tasks. It also has a three-point hitch at the back that can lift up to 4,480 lb, which is very high capacity. The tractor weighs 5,935 lb, making it sturdy but not too heavy. It has both 540 and 1000 rpm PTO speeds, useful for running various farm tools.
Show more...

Key Specifications

Category: Utility

Power Output: 97 hp (72.3 kW)

Transmission: Synchromesh Partial Power Shift

Drive Type: 2WD

Operating Weight: 5935 lb (2692 kg)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Ford
Cooling Type
Liquid
Cylinder Orientation
Inline
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement
268 ci (4.4 L)
Bore
4.41 in (112.0 mm)
Stroke
4.41 in (112.0 mm)
Rated RPM
2100
Power Output
97 hp (72.3 kW)

Transmission

Type
Synchromesh Partial Power Shift
Forward Gears
16
Reverse Gears
8

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Brake Type
Differential mechanical wet disc
