Ford 7600

Last Updated: June 2024

Overview

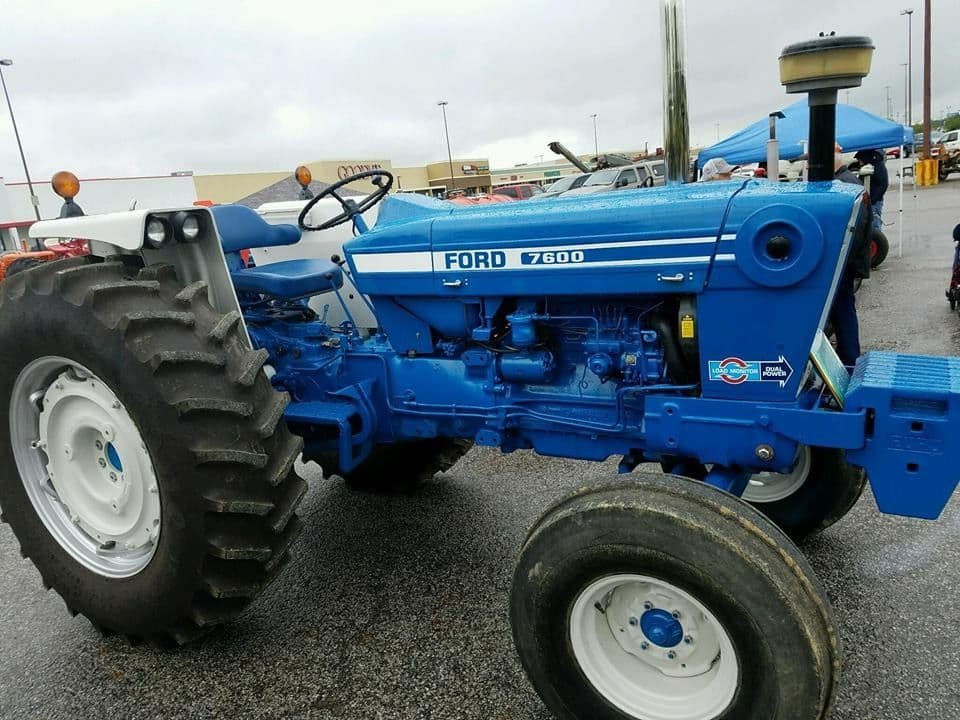

The Ford 7600 tractor is available as a 2WD (4x2) or an optional 4WD (MFWD 4WD), with a power steering feature for easier maneuverability. It houses a choice between a Ford 4.2L or a 4.4L 4-cyl diesel engine, offering a power output of 96.7 hp with a rated RPM of 2100. The versatility in transmissions offers either a two-speed power shift providing 16 forward and 4 reverse gears or a gear-type transmission that includes 8 forward and 2 reverse gears. The open operator station comes with an optional cab and provides an ergonomic space for the driver. Weight varies considerably depending on configuration, suggesting diversity in potential applications and workloads. The tractor’s robust three-point hitch with a category II size can handle a lift capacity of 4430 lbs, making it suitable for a broad range of tasks. Its manufacturing spanned from 1975 to 1981, marking it as part of the dependable Ford legacy in farming machinery.
Show more...

Key Specifications

Category: Utility

Power Output: 96.7

Transmission: Two-speed power shift or Gear type

Operating Weight: 5580 (shipping) - 7440 (operating with cab)

Fuel Type: Diesel

Lift Capacity: 4430 lbs

Ford 7600 vs. Similar Tractors

Power Output
Above Average
Greater than 80% of similar tractors.
Hitch Capacity
Above Average
Greater than 72% of similar tractors.
Operating Weight
Above Average
Greater than 88% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford
Model
Ford 4.2L 4-cyl diesel or Ford 4.4L 4-cyl diesel
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
256 (4.2 L) or 267.9 (4.4 L)
Bore (in)
4.41
Stroke (in)
4.21 (4.2 L) or 4.4094 (4.4 L)
Rated RPM
2100
Power Output (hp)
96.7

Transmission

Type
Two-speed power shift or Gear type
Forward Gears
16 (power shift) or 8 (gear type)
Reverse Gears
4 (power shift) or 2 (gear type)
Total Gears
-

Dimensions

Length (in)
145.3
Width (in)
72.8
Height (in)
106.3 (with cab)
Operating Weight (lb)
5580 (shipping) - 7440 (operating with cab)

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540 or 1000
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD or 4x4 MFWD 4WD
Drive Type
-
Steering Type
Power
Coolant Capacity (qts)
13.9
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
1981
Hitch Type
Three-Point Hitch
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
4430 lbs
Operator Station Type
Open operator station or Cab (optional)
Starter Type
Electric
Brake Type
Differential wet disc
Hydraulic System Type
-
