Ford 741

Last Updated: June 2024

Overview

The Ford 741 tractor was part of the 701 Workmaster Series, manufactured between 1958 and 1962. With a power output of 48.4 horsepower, it runs on a 4-cylinder engine and had various engine options, including gasoline, LP gas, and diesel. The tractor features an unsynchronized gear transmission consisting of 4 forward gears and 1 reverse. It has power assisted steering and an open-center hydraulic system. The standard front tire specification is 5.50-16, but there is an error within the rear tire date fields making it unclear. The tractor operates at a rated 2200 RPM with an engine displacement of either 134 or 144 cubic inches and an operating weight of 3400 pounds. Front and rear tread measurements vary, allowing for a degree of customization. The 741 maintains a classic design with an 85.3-inch wheelbase, a length of 132.1 inches, and a height of 65.07 inches.

Key Specifications

Power Output: 48.4 hp

Transmission: Unsynchronized Gear

Operating Weight: 3400 lbs

Fuel Type: Gasoline, LP gas (alternative), Diesel (alternative)

Image Gallery

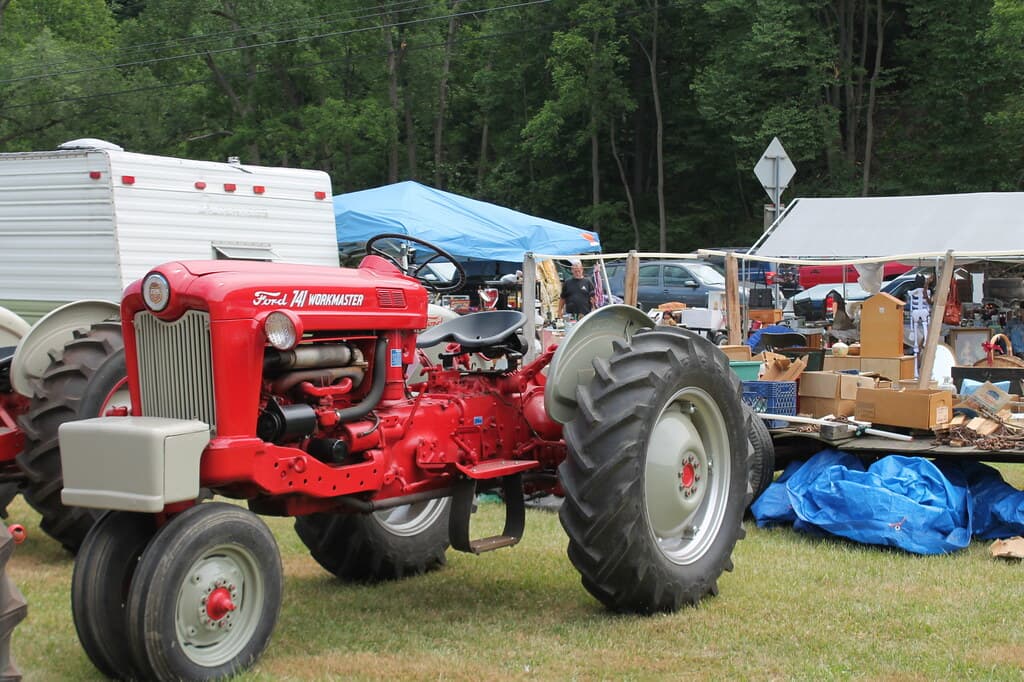

Ford 741 Tractor

Technical Specifications

Engine

Manufacturer: Ford
Model: -
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline, LP gas (alternative), Diesel (alternative)
Induction Type: Naturally Aspirated
Cylinders: 4
Displacement (ci): 134 ci, Alternative: 144 ci
Bore (in): 3.4375 in, Alternative: 3.562 in
Stroke (in): 3.6
Rated RPM: 2200
Power Output (hp): 48.4 hp

Transmission

Type: Unsynchronized Gear
Forward Gears: 4
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 132.1 in
Width (in): -
Height (in): 65.07 in
Operating Weight (lb): 3400 lbs

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Power Assisted
Coolant Capacity (qts): 15 qts
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag Front: 5.50-16, Unknown (alternative row for the date error)
Manufacture - End Year: 1962
Hitch Type: Type I
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 6V, Alternative: 12V
Brake Type: -
Hydraulic System Type: Open Center
