Ford 5000

Last Updated: June 2024

Overview

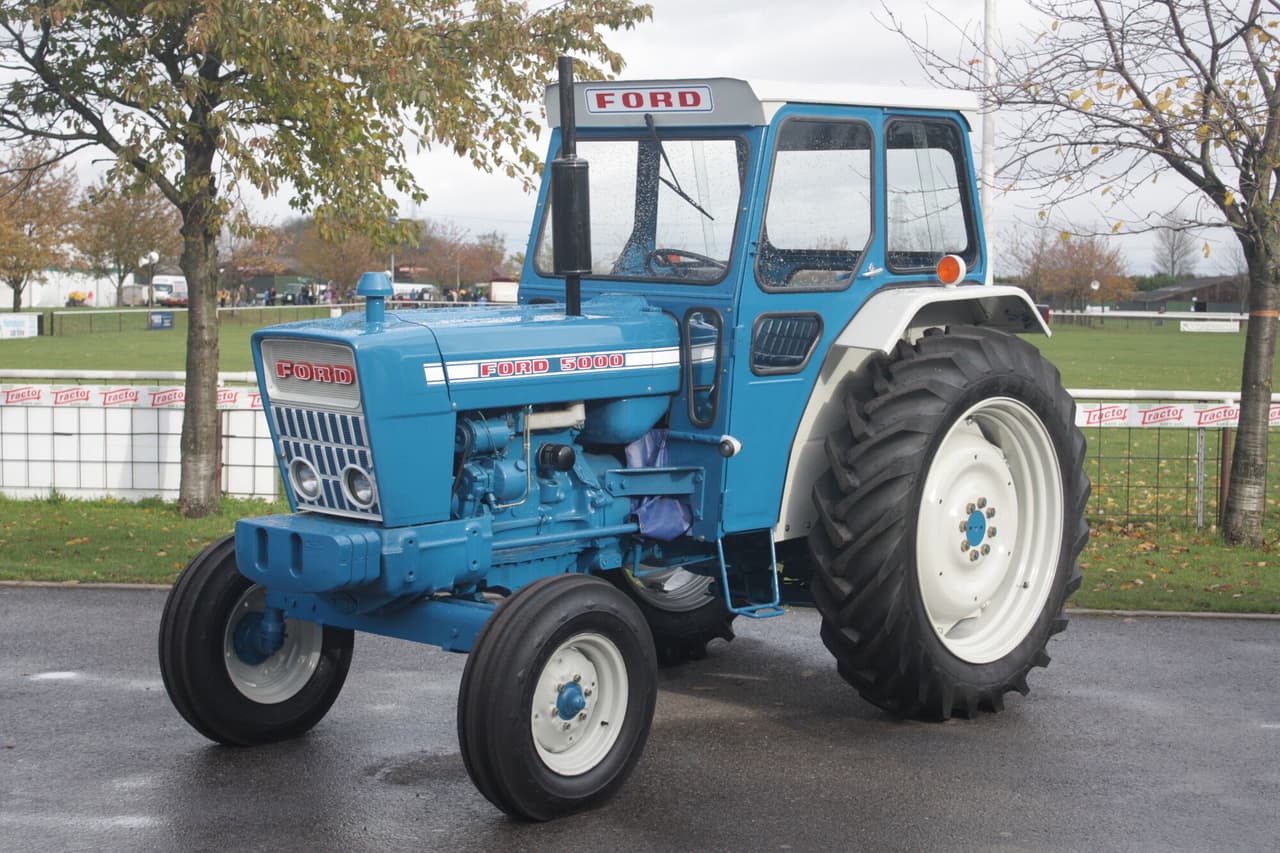

The Ford 5000 is a versatile tractor that was manufactured with various configurations for steering and the transmission system, capable of catering to a range of agricultural tasks. The tractor is distinguished by the options of Power Assist and Hydrostatic Power steering types, as well as three different types of transmission systems: a sliding gear with 8 forward and 2 reverse gears, a full power shift Select-O-Speed with 10 forward and 2 reverse gears, and a partial power shift Dual Power with 16 forward and 4 reverse gears. Equipped with a Ford 3.8L 4-cylinder engine available in both gasoline and diesel variants, it has a displacement of 233 cubic inches and outputs 69 horsepower at 2100 rpm. The tractor's weight varies with specifications, ranging from 5740 lbs to a ballasted weight of 9700 lbs. The Ford 5000 is capable of meeting various farming needs with its multiple configurations and strong engine performance.
Show more...

Key Specifications

Category: Utility

Power Output: 69

Transmission: Sliding Gear / Full Power Shift / Partial Power Shift

Operating Weight: 5865

Fuel Type: Gasoline / Diesel

Ford 5000 vs. Similar Tractors

Power Output
Average
Greater than 63% of similar tractors.
Operating Weight
Average
Greater than 47% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline / Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
233
Bore (in)
4.2
Stroke (in)
4.2
Rated RPM
2100
Power Output (hp)
69

Transmission

Type
Sliding Gear / Full Power Shift / Partial Power Shift
Forward Gears
8 or 16
Reverse Gears
2 | 4
Total Gears
-

Dimensions

Length (in)
141.6 / 149
Width (in)
68.5
Height (in)
-
Operating Weight (lb)
5865

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Power Assist/ Hydrostatic Power
Coolant Capacity (qts)
15.3
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag Front / Ag Rear
Manufacture - End Year
-
Hitch Type
Three-Point Hitch (Category II/I)
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Open Center
