Ford 4030

Last Updated: June 2024

Overview

The Ford 4030 is an Orchard/Vineyard tractor designed with maneuverability and efficiency in mind. It features a liquid-cooled Fiat diesel engine with a displacement of 179 cubic inches, rated at 2500 RPM, and equipped with three cylinders. The tractor comes with a gear transmission that offers 12 forward and 4 reverse gears (if assuming a shuttle variant offering this configuration), and boasts a 4x2 wheel chassis. Power steering provides ease in handling, especially important for operation within the confined spaces of orchards and vineyards. Safety measures include a ROPS which reaches a height of 85 inches, with the model being fitted with standard agricultural tires. This model proves suitable for various tasks with its lifting rear hitch type and an open center hydraulic system that sustains the necessary operational tasks.

Key Specifications

Category: Agricultural, Orchard/Vineyard

Transmission: Gear with shuttle

Operating Weight: 4662 to 5069

Fuel Type: Diesel

Image Gallery

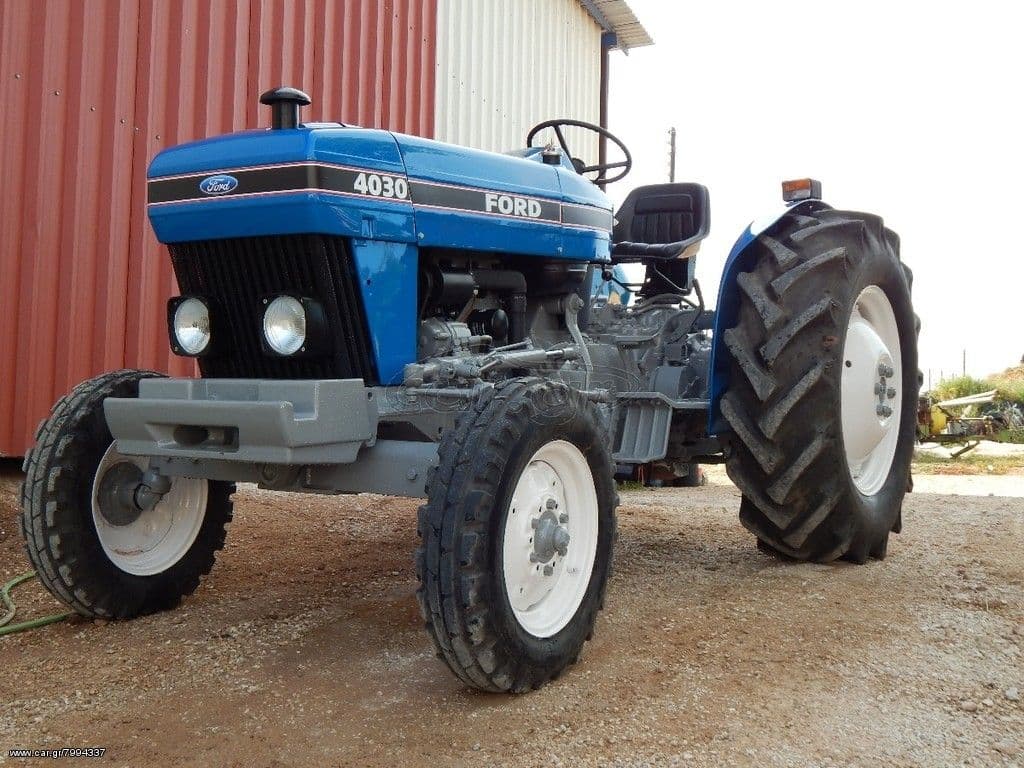

Ford 4030 Tractor

Ford 4030 vs. Similar Tractors

Operating Weight

Above Average

Greater than 78% of similar tractors.

Technical Specifications

Engine

Manufacturer: Fiat
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 179
Bore (in): 4.094
Stroke (in): 4.527
Rated RPM: 2500
Power Output (hp): -

Transmission

Type: Gear with shuttle
Forward Gears: 12
Reverse Gears: 4
Total Gears: 16 (assuming the shuttle provides 12 forward and 4 reverse as an alternative configuration)

Dimensions

Length (in): 140 (assuming the larger size)
Width (in): 58.5 (assuming the larger size associated with 4WD models)
Height (in): 85 (assumed the height with ROPS as the tallest point)
Operating Weight (lb): 4662 to 5069

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: -
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 27 (approximated from front tire specification)
Front Tire Width (in): 9.5 (approximated from front tire specification)
Rear Tire Diameter (in): 24 (approximated from rear tire specification)
Rear Tire Width (in): 14.9 (approximated from rear tire specification)
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: Unknown (assuming Category I typically does not align with Category 3 hitch size)
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Unknown (ROPS implies an open station but no further details on cabin or enclosure)
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: Open Center
