Ford 3910

Last Updated: June 2024

Overview

The Ford 3910 is a 2WD or 4WD utility tractor from the 10 series, manufactured by Ford between 1983 and 1989. It is powered by a three-cylinder diesel engine with a displacement of 192 ci, delivering 50 hp at 2200 RPM. The tractor can be equipped with different types of transmissions, featuring up to 8 forward and 4 reverse gears. It offers power-assisted steering, differential wet disc brakes, and the option of a two-post fixed ROPS or cab. The 3910 model sports a 49.2 liters fuel tank capacity and is compatible with front tires size 7.50-15 for the 2WD version and a rear tire size of 13.6-28.

Key Specifications

Category: Utility

Power Output: 50.7 PS (50.0 HP)

Operating Weight: 4615 (2WD) / 5082 (4WD)

Fuel Type: Diesel

Image Gallery

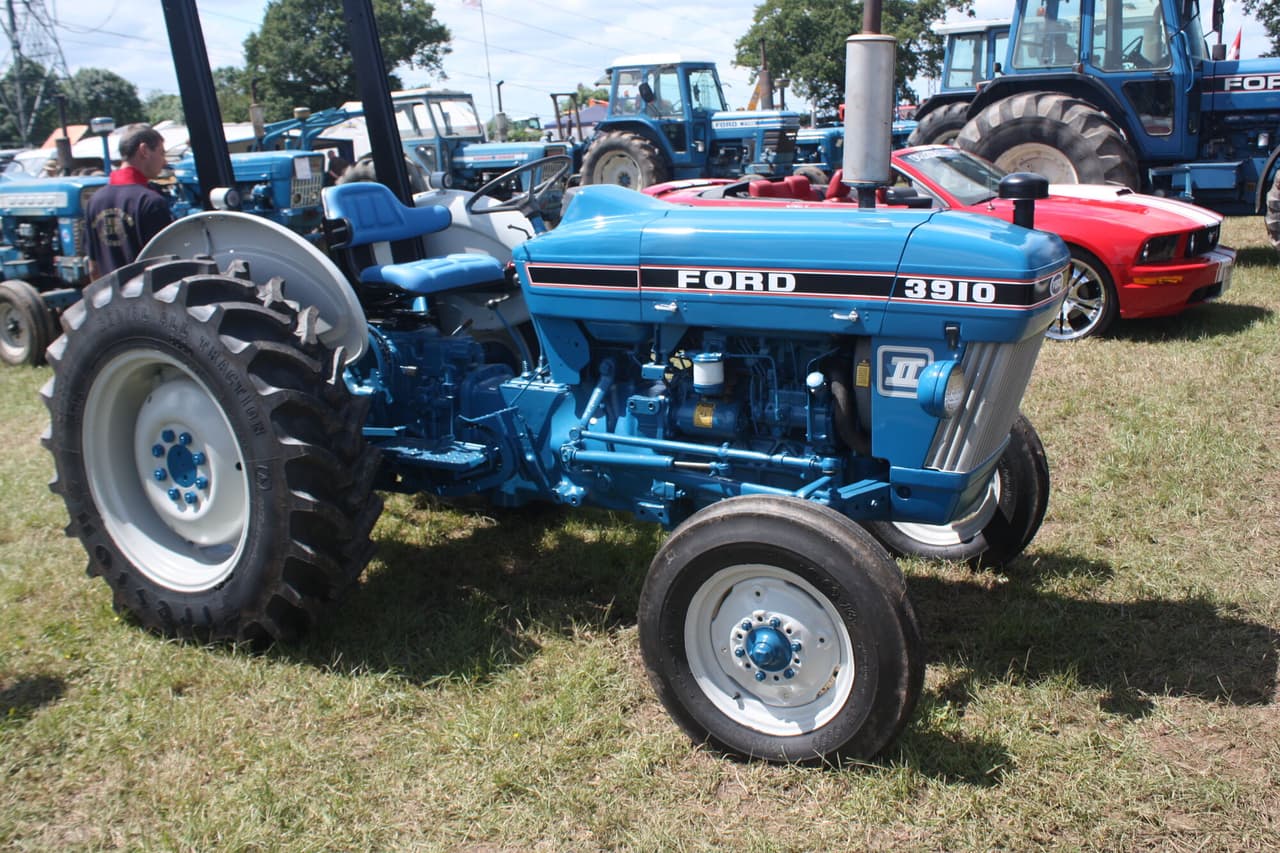

Ford 3910 Tractor

Ford 3910 vs. Similar Tractors

Operating Weight

Excellent

Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ford
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 192
Bore (in): 4.4
Stroke (in): 4.2
Rated RPM: 2200
Power Output (hp): 50.7 PS (50.0 HP)

Transmission

Type: -
Forward Gears: 8
Reverse Gears: 2 / 4 (Depending on the specific transmission version)
Total Gears: -

Dimensions

Length (in): 127.2
Width (in): 69.3
Height (in): 93.3
Operating Weight (lb): 4615 (2WD) / 5082 (4WD)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Power assist
Coolant Capacity (qts): 11
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 1989
Hitch Type: II/I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Two-post fixed ROPS or Cab (optional)
Starter Type: Electric
Brake Type: Differential wet disc
Hydraulic System Type: Open center
