Overview

The Ford 3415 is a 2WD compact utility tractor that was manufactured by Shibaura in Japan from 1993 to 2003. It is powered by a Shibaura N844L four-cylinder, liquid-cooled, diesel engine with a displacement of 135 cubic inches, providing 44 horsepower. Equipped with a manual transmission offering 12 forward and 4 reverse gears, it also features hydrostatic power steering and a live rear PTO with a speed of 540 rpm. This model comes with a two-post ROPS and has an operating weight of 4100 pounds. With a hitch lift capacity of 3473 pounds, the Ford 3415 serves as a capable and reliable machine for various utility tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 44

Transmission: Manual

Drive Type: 2WD

Operating Weight: 4100

Fuel Type: Diesel

Image Gallery

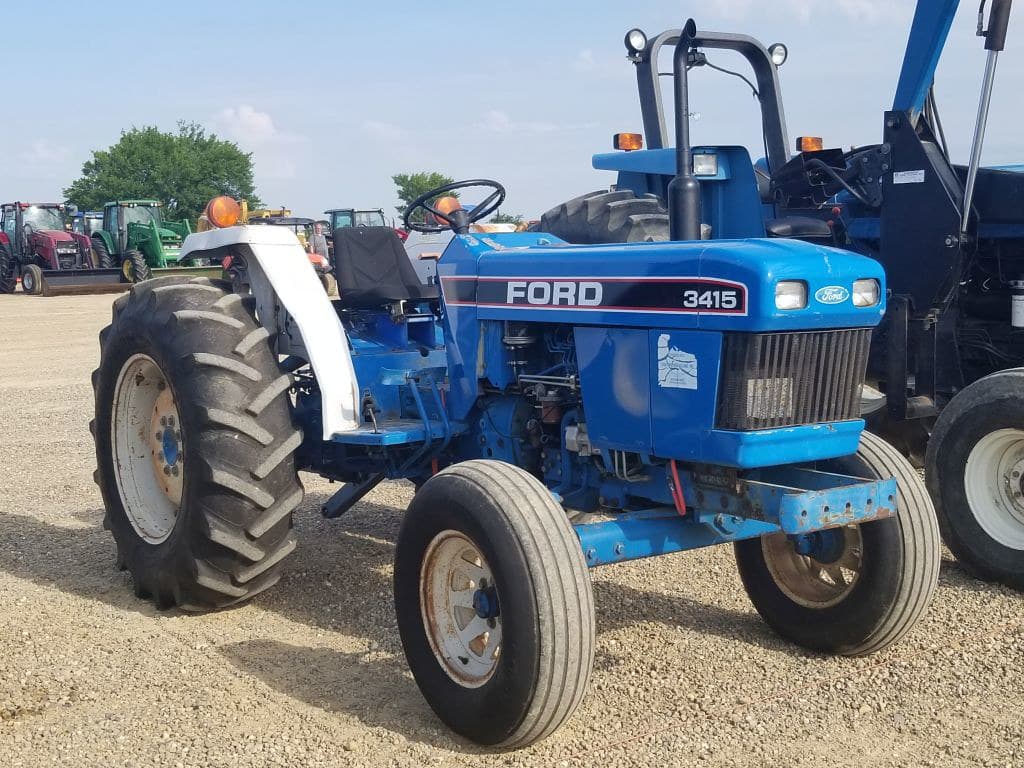

Ford 3415 Tractor Ford 3415 Tractor Ford 3415 Tractor Ford 3415 Tractor Ford 3415 Tractor Ford 3415 Tractor Ford 3415 Tractor Ford 3415 Tractor

Ford 3415 vs. Similar Tractors

Power Output
Average
Greater than 41% of similar tractors.
Hitch Capacity
Average
Greater than 63% of similar tractors.
Operating Weight
Average
Greater than 37% of similar tractors.

Technical Specifications

Engine

Manufacturer
Shibaura
Model
N844L
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
135
Bore (in)
3.31
Stroke (in)
3.94
Rated RPM
-
Power Output (hp)
44

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
4100

Power Take-Off (PTO)

PTO Type
Live
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
2003
Hitch Type
Category I
Hitch Category
3
Hitch Position
Rear
Hitch Capacity (lb)
3473
Operator Station Type
Two-post ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
