Ford 2610

Last Updated: June 2024

Overview

The Ford 2610 tractor, created for utility purposes, was manufactured from 1982 to 1983 as part of the 10 Utility Series. It is a versatile vehicle with a 4x2 2WD chassis and power assist steering, making it suitable for various farming tasks. Available with either a Ford 2.9L 3-cyl diesel or a 2.6L 3-cyl gasoline engine, this tractor offers choices to suit different farming needs. The diesel engine model provides slightly more power with a gross horsepower of 42.5, while the gasoline model gives 35.5 hp, both at a rated 2000 RPM. It has a synchromesh 8-speed transmission, including 8 forward and 2 reverse gears, providing ample range for different tasks. Weighing in at an operating weight of 3,475 lbs with the capability of being ballasted up to 6,000 lbs, this tractor offers durability and stability for everyday use. Despite missing some specific details regarding the hydraulic system and PTO speeds, the Ford 2610 remains a robust tool in the agricultural sector due to its operational efficiency and reliability.

Key Specifications

Category: Utility

Power Output: 42.5 (Diesel, gross) and 35.5 (Gasoline, gross)

Transmission: Synchromesh

Drive Type: 2WD

Operating Weight: 3475 (shipping weight, assumed to be the same as operating weight)

Fuel Type: Diesel and Gasoline

Image Gallery

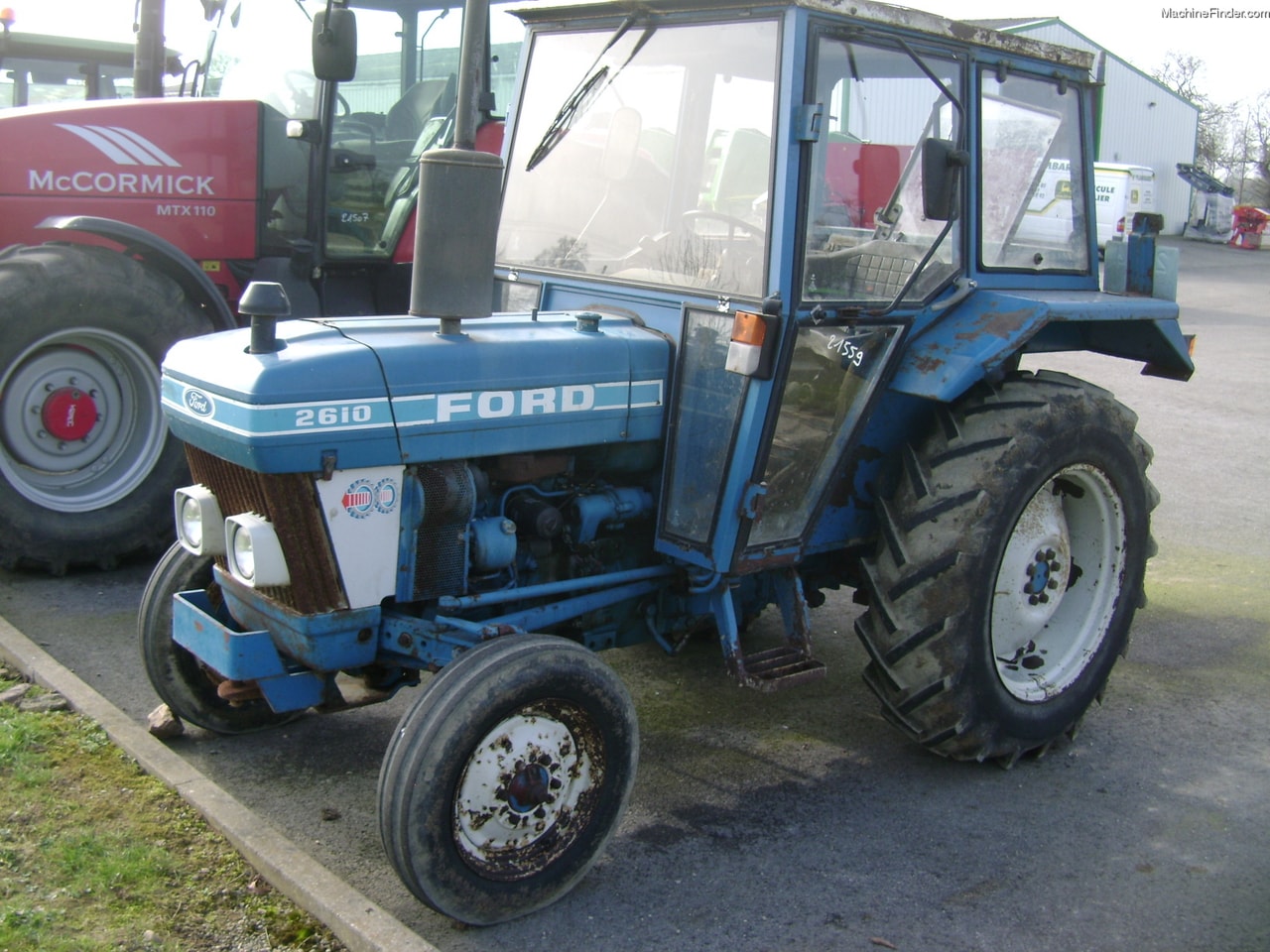

Ford 2610 Tractor

Ford 2610 vs. Similar Tractors

Operating Weight

Below Average

Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer: Ford
Model: 2.9L 3-cyl diesel and Ford 2.6L 3-cyl gasoline
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel and Gasoline
Induction Type: Naturally aspirated (Assumption based on 'dry' air cleaner)
Cylinders: 3
Displacement (ci): 175 (Diesel) and 158 (Gasoline)
Bore (in): 4.2
Stroke (in): 4.20 (Diesel) and 3.80 (Gasoline)
Rated RPM: 2000
Power Output (hp): 42.5 (Diesel, gross) and 35.5 (Gasoline, gross)

Transmission

Type: Synchromesh
Forward Gears: 8
Reverse Gears: 2
Total Gears: 10 (Assumed based on 8 forward and 2 reverse)

Dimensions

Length (in): 126.5
Width (in): 63.4
Height (in): 52.5 (hood height)
Operating Weight (lb): 3475 (shipping weight, assumed to be the same as operating weight)

Power Take-Off (PTO)

PTO Type: Live (Based on the data "Type: live")
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power assist
Coolant Capacity (qts): 11
Front Tire Diameter (in): -
Front Tire Width (in): Unknown (Tire sizes are available, but not widths specifically)
Rear Tire Diameter (in): Unknown (Tire sizes are available, but not diameters specifically)
Rear Tire Width (in): Unknown (Tire sizes are available, but not widths specifically)
Front/Rear Rim Diameter (in): Unknown (Rim sizes not provided)
Tire Type: Ag (Agricultural, based on Ag front/rear tire specifications)
Manufacture - End Year: 1983
Hitch Type: Category I
Hitch Category: Unknown (Not directly provided, but typically Category I for a tractor of this size)
Hitch Position: Rear (Assumed, as the majority of tractor hitches are rear-mounted)
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter (12 volts)
Brake Type: -
Hydraulic System Type: -
