Ford 1715

Last Updated: June 2024

Overview

The Ford 1715 is a compact utility tractor, available in either 2WD or 4WD configurations. It was manufactured by Ford from 1992 to 1997 using a Shibaura J843 engine. This tractor is powered by a 27.3 horsepower, 1.3L three-cylinder diesel engine with liquid cooling and a gear-type transmission offering 9 forward and 3 reverse gears. It features a wheelbase of 63 inches and can weigh between 1929 and 2116 pounds, depending on the drive type. The operator station has an open layout with two-post ROPS for safety. It also features a manual and a power steering system, which aids in handling. Notably, this model is capable of accommodating a range of front and rear tire sizes, basing on whether it is a 2WD or 4WD variant. It was designed primarily for ease of use and versatility within various farming applications.

Key Specifications

Category: Utility

Power Output: 27.3

Transmission: Gear

Drive Type: 4WD or 2WD

Operating Weight: 1929 (2WD) to 2116 (4WD)

Fuel Type: Diesel

Image Gallery

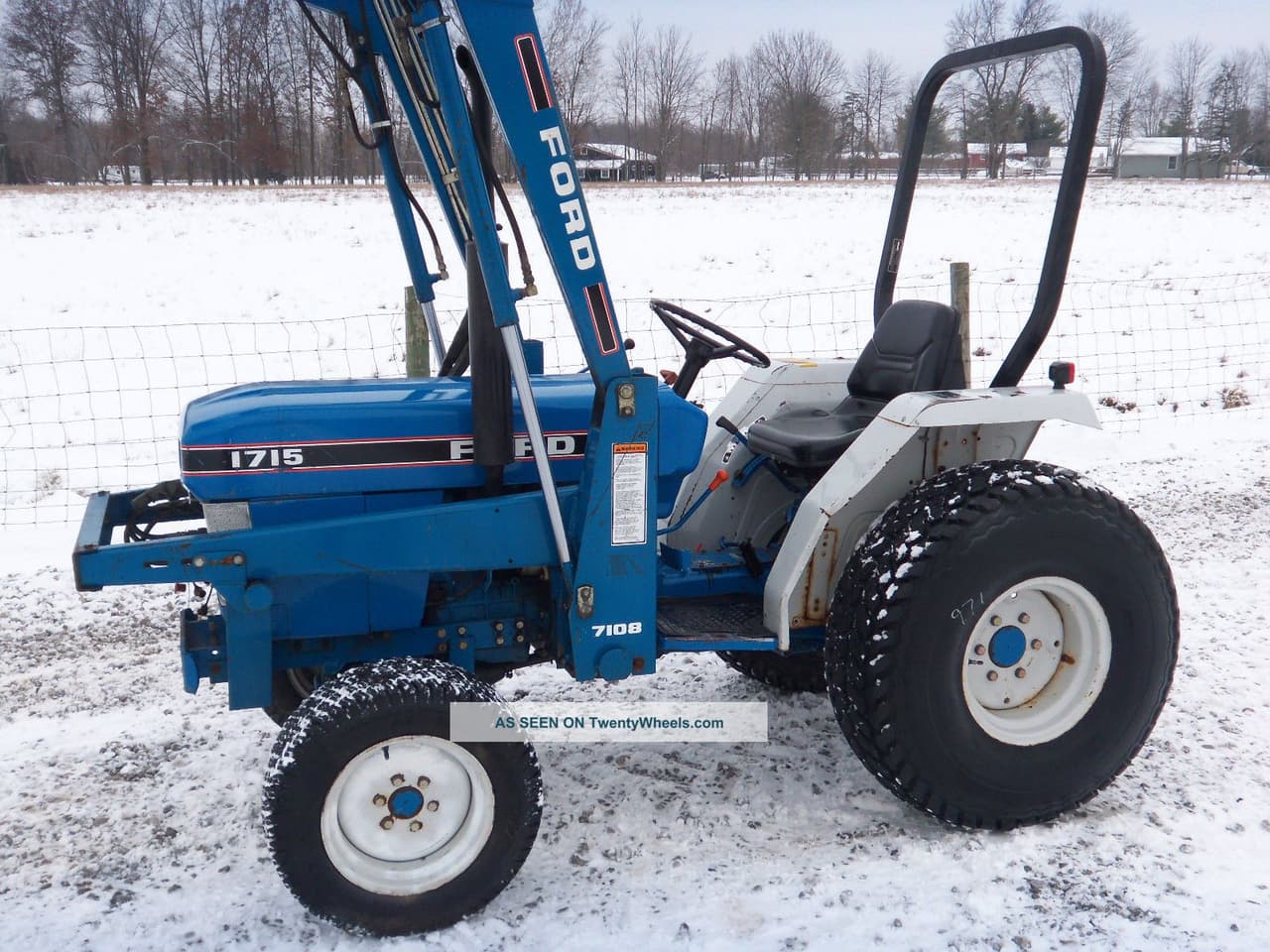

Ford 1715 Tractor

Ford 1715 vs. Similar Tractors

Power Output

Below Average

Greater than 21% of similar tractors.

Operating Weight

Excellent

Greater than 94% of similar tractors.

Technical Specifications

Engine

Manufacturer: Shibaura
Model: J843
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 81.2
Bore (in): 3.31
Stroke (in): 3.15
Rated RPM: 2600
Power Output (hp): 27.3

Transmission

Type: Gear
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 112.4
Width (in): 51.3
Height (in): 84.4
Operating Weight (lb): 1929 (2WD) to 2116 (4WD)

Power Take-Off (PTO)

PTO Type: Transmission
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 4WD or 2WD
Steering Type: Manual and Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 1997
Hitch Type: I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open operator station with two-post ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: Open Center
