Ford 1310

Last Updated: June 2024

Overview

The Ford 1310 is a versatile two-wheel or optional four-wheel drive compact utility tractor, belonging to the Ten Compact Series, produced by Ford with Shibaura's expertise. Manufactured between 1983 and 1986, it houses a Shibaura S753 three-cylinder, diesel, liquid-cooled engine with a displacement of 58.2 cubic inches. It delivers 19 horsepower and is paired with a gear shift transmission with 12 forward and 4 reverse gears. This tractor features a manual steering system, rear PTO rated at 540 rpm, and a three-point hitch with a lift capacity of 1432 pounds. Designed for a range of tasks in a small farm or estate setting, the Ford 1310 also boasts a significant operator safety feature—the ROPS (rollover protection structure). Operational ease is further enhanced with its electric starter system and dry-type air cleaner, ensuring smooth engine performance in various working conditions.

Key Specifications

Category: Utility

Power Output: 19

Transmission: Gear shift, unsynchronized gear or partially synchronized (inferred due to presence of clutch mention)

Drive Type: 2WD or 4WD (optional)

Operating Weight: 2063 (2WD), 2261 (4WD)

Fuel Type: Diesel

Image Gallery

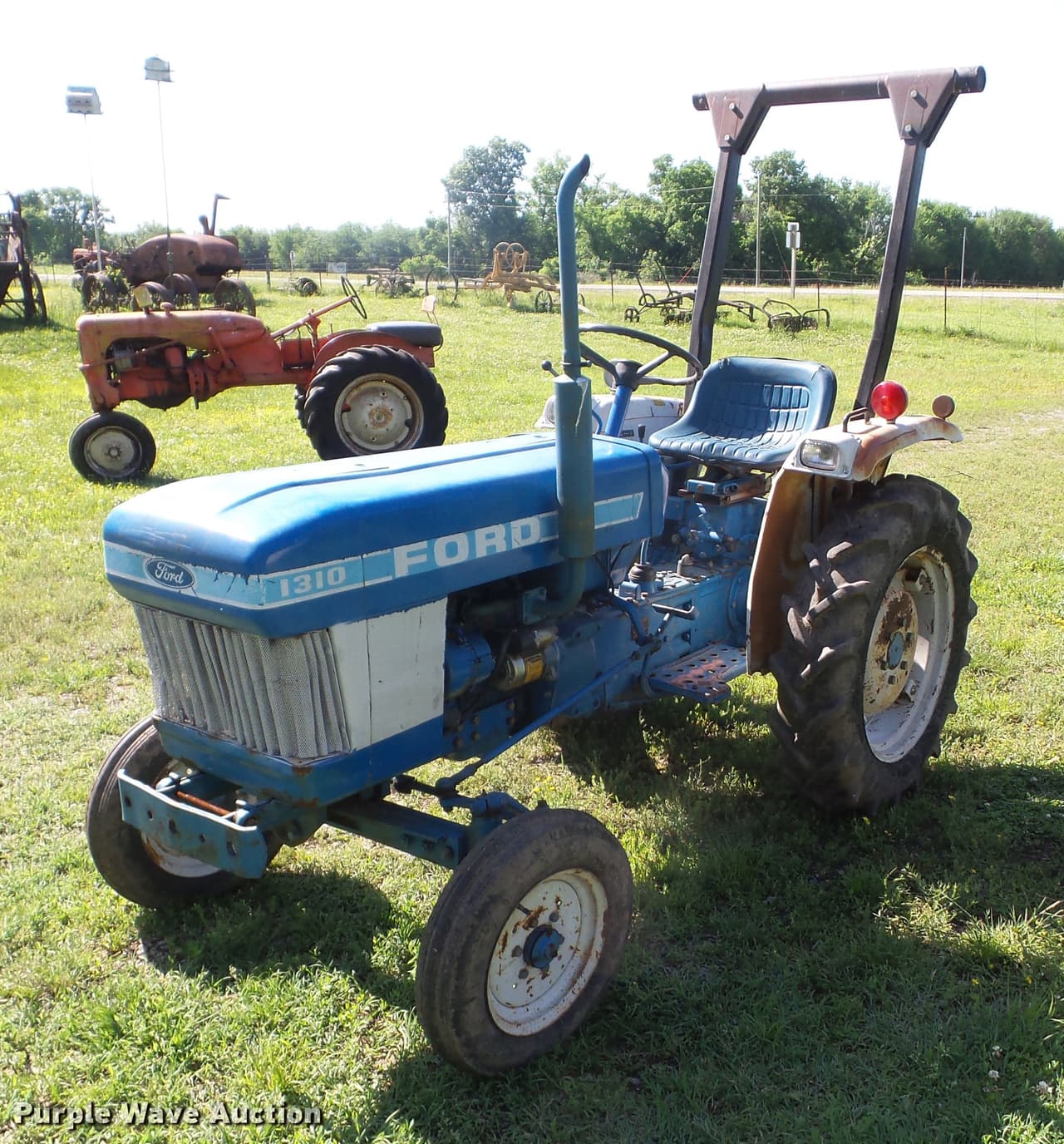

Ford 1310 Tractor

Ford 1310 vs. Similar Tractors

Power Output

Poor

Greater than 8% of similar tractors.

Hitch Capacity

Below Average

Greater than 27% of similar tractors.

Operating Weight

Average

Greater than 70% of similar tractors.

Technical Specifications

Engine

Manufacturer: Shibaura
Model: S753
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline (Vertical)
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated (Inferred from "Air Cleaner: dry" and absence of turbo/supercharger mention)
Cylinders: 3
Displacement (ci): 58.2
Bore (in): 2.95
Stroke (in): 2.83
Rated RPM: 2800
Power Output (hp): 19

Transmission

Type: Gear shift, unsynchronized gear or partially synchronized (inferred due to presence of clutch mention)
Forward Gears: 12
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 109.3 (2WD), Unknown (4WD)
Width (in): 49.6 (2WD), 55.7 (4WD)
Height (in): ROPS at 82.9 inches (assumed for both 2WD and 4WD since ROPS height typically does not change with drive type)
Operating Weight (lb): 2063 (2WD), 2261 (4WD)

Power Take-Off (PTO)

PTO Type: Rear, transmission or live (optional), Front (optional)
PTO Speed 1 (rpm): 540 (Rear)
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD (optional)
Drive Type: 2WD or 4WD (optional)
Steering Type: Manual
Coolant Capacity (qts): 2.8
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag (Agricultural) for 2WD and 4WD
Manufacture - End Year: 1986
Hitch Type: Three-Point Hitch
Hitch Category: Category I
Hitch Position: Rear
Hitch Capacity (lb): 1432 lbs (at link end)
Operator Station Type: Open with ROPS
Starter Type: Electric Starter
Brake Type: Differential mechanical drum
Hydraulic System Type: Open Center
