Ford 1000

Last Updated: June 2024

Overview

The Ford 1000 is a 2WD compact utility tractor, powered by a 25 horsepower Shibaura LE892 engine. It operates with a cooling system capacity of 5.4 quarts and has a wheelbase of 62.6 inches. Designed primarily for agricultural tasks, this tractor has a gear transmission with 9 forward and 3 reverse gears, and an electric starter system. Its 2-cylinder diesel engine with a displacement of 77.6 cubic inches provides reliable power at a rated RPM of 2500. The chassis is a 2-wheel drive with a shipping weight of approximately 2300 lbs. It is equipped with agricultural tires, 5.00-15 in the front and 11.2-24 at the rear. Produced between 1973 and 1976, the Ford 1000 also offers an open operator station with an optional two-post ROPS for safety.

Key Specifications

Category: Utility

Power Output: 25

Transmission: Gear

Drive Type: 2WD

Operating Weight: 2300

Fuel Type: Diesel

Image Gallery

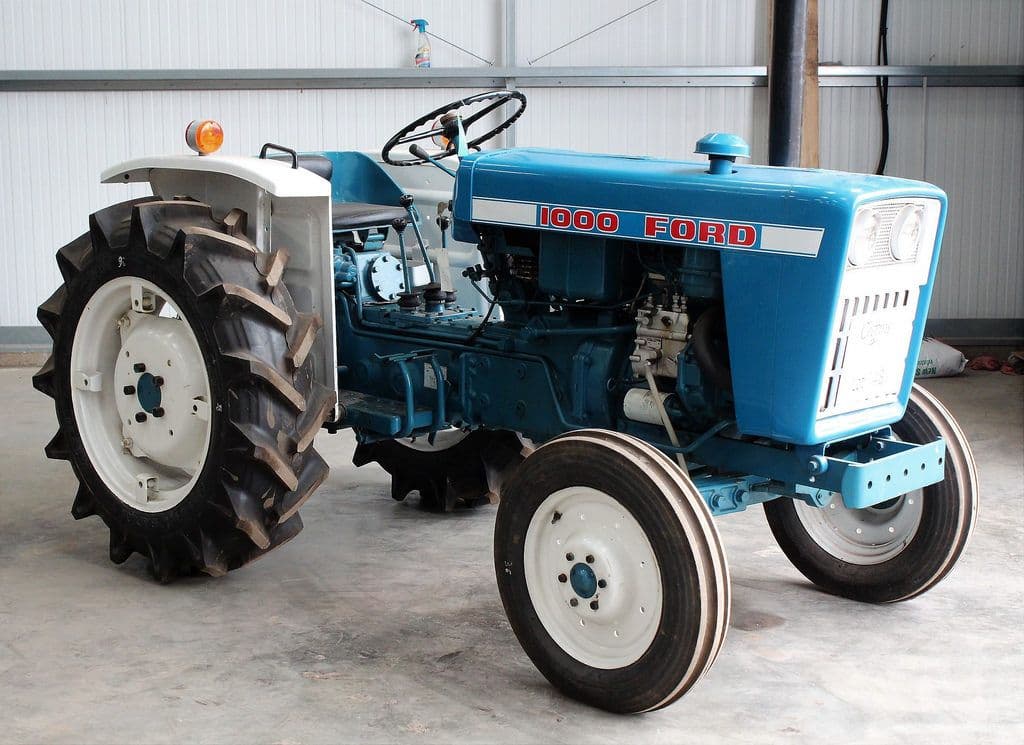

Ford 1000 Tractor

Ford 1000 vs. Similar Tractors

Power Output

Below Average

Greater than 18% of similar tractors.

Operating Weight

Below Average

Greater than 18% of similar tractors.

Technical Specifications

Engine

Manufacturer: Shibaura
Model: LE892
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 2
Displacement (ci): 77.6
Bore (in): 3.54
Stroke (in): 3.94
Rated RPM: 2500
Power Output (hp): 25

Transmission

Type: Gear
Forward Gears: 9
Reverse Gears: 3
Total Gears: -

Dimensions

Length (in): 100.8
Width (in): -
Height (in): 54.3
Operating Weight (lb): 2300

Power Take-Off (PTO)

PTO Type: Transmission
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): 5.4
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 1976
Hitch Type: Category I
Hitch Category: I
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open, Optional two-post ROPS
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: Open Center
