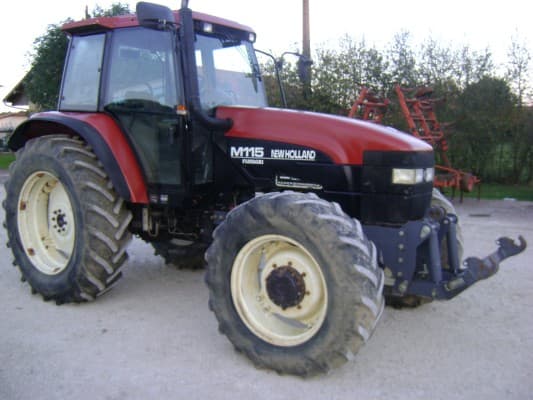

Fiat M115

Last Updated: June 2024

Overview

The Fiat M115 is a tractor characterized by a 4x2 2WD chassis and powered by a New Holland Genesis 6-cylinder liquid-cooled diesel engine, with a displacement of 456 cubic inches, generating 115 hp at 2200 rated RPM. It can come equipped with different transmission systems such as a 23-speed partially synchronized (Dual Command) or a 17/18-speed partial power shift (Range Command), and it features hydrostatic power steering. The tractor's wet disc clutch and overall weight, ranging from 11,616 to 12,606 pounds, indicate it's built for robust operations. Its standard front and rear tires are sized at 11.00-16 and 18.4R38 respectively, and it offers a variety of front and rear tread adjustments. The Fiat M115 may have been designed for various agricultural and industrial tasks, but without knowing the specific category, it's challenging to pinpoint the primary intended use.
Show more...

Key Specifications

Power Output: 115

Transmission: Partially Synchronized/Partial Power Shift

Drive Type: 2WD

Operating Weight: 11616 to 12606

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
New Holland
Model
Genesis
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
456
Bore (in)
4.5
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
115

Transmission

Type
Partially Synchronized/Partial Power Shift
Forward Gears
23 (Dual Command), 17 or 18 (Range Command)
Reverse Gears
12 (Dual Command), 6 (Range Command)
Total Gears
-

Dimensions

Length (in)
180
Width (in)
84
Height (in)
Unknown (Height of ROPS and Cab are provided, but not the overall tractor height)
Operating Weight (lb)
11616 to 12606

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
24.8
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Unknown (both ROPS and Cab available but not specified which one this model refers to)
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Closed Center Load Sensing
