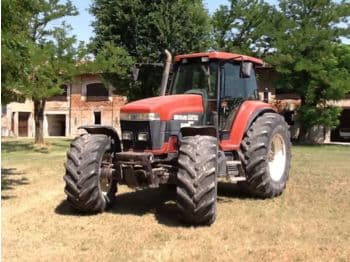

Fiat G210

Last Updated: June 2024

Overview

The Fiat G210, a powerful row-crop tractor, shines with its 210 horsepower Ford turbocharged diesel engine, ensuring strong performance for a variety of agricultural tasks. With a 4.4-inch bore, 5-inch stroke, and a rated RPM of 2100, this tractor is fitted with a liquid-cooling system to maintain optimal operating temperatures. The full power shift transmission provides 16 forward gears and 9 reverse gears, supplemented by an optional creeper extension offering an additional range of gears (32 forward, 18 reverse), enhancing the tractor's versatility. Its chassis configuration is 4x2 2WD, accompanied by hydrostatic power steering for easier maneuverability. The G210's wheelbase of 118.3 inches and operating weight ranging from 16,700 to 19,000 pounds highlight its substantial build, designed to handle demanding tasks. The Category 3 rear hitch manages a high lift capacity, maximizing the tractor’s utility in the field. Its closed center load sensing hydraulic system is a notable feature that optimizes hydraulic power according to the workload. The G210 is equipped with a spacious cab, providing comfort and protection for the operator in various weather conditions.
Show more...

Key Specifications

Category: Row Crop

Power Output: 210

Transmission: Full power shift

Drive Type: 2WD

Operating Weight: 16700-19000

Fuel Type: Diesel

Fiat G210 vs. Similar Tractors

Power Output
Above Average
Greater than 75% of similar tractors.
Hitch Capacity
Below Average
Greater than 29% of similar tractors.
Operating Weight
Excellent
Greater than 95% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
456
Bore (in)
4.4
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
210

Transmission

Type
Full power shift
Forward Gears
16
Reverse Gears
9
Total Gears
-

Dimensions

Length (in)
196.7
Width (in)
96.7
Height (in)
121.3 (height with cab)
Operating Weight (lb)
16700-19000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
26.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
III
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
Max capacity 31,500 lbs
Operator Station Type
Cab
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Closed center load sensing
