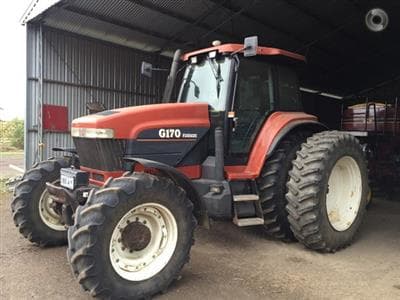

Fiat G170

Last Updated: June 2024

Overview

The Fiat G170 is a row-crop tractor that is equipped with a Ford turbocharged diesel engine rated at 170 horsepower. Its impressive 456 cubic inch engine operates at a rated speed of 2100 RPM, featuring a 17.5:1 compression ratio. With a 6-cylinder liquid-cooled setup, this tractor delivers power and efficiency for various agricultural tasks. The Fiat G170 offers versatility with its full power shift transmission, having the option of a creeper gear set that provides 32 forward and 18 reverse gears. The tractor’s 4x2 2WD chassis is complemented by hydrostatic power steering for easier maneuverability. The tractor possesses a significant operating weight capacity of up to 21,750 lbs, indicating its substantial hauling and pulling capabilities. The rear Category 3 hitch and a 2-wheel drive tire configuration with a closed center load sensing hydraulic system highlight its adaptability to a range of demanding field conditions. Its sizable dimensions and ground clearance make it suitable for a variety of crop cultivations. The general stability and longevity of the G170 are evident through its robust wheelbase and substantial tire specification. While it's not the latest model on the market, its specifications suggest that it remains a reliable machine for farming operations seeking a balance between power and agility.
Show more...

Key Specifications

Category: Row Crop

Power Output: 170

Transmission: Full power shift with creeper option

Drive Type: 2WD

Operating Weight: Operating: 15,800 lbs (2WD), Max capacity: 21,750 lbs

Fuel Type: Diesel

Fiat G170 vs. Similar Tractors

Power Output
Average
Greater than 63% of similar tractors.

Technical Specifications

Engine

Manufacturer
Ford
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
456
Bore (in)
4.4
Stroke (in)
5
Rated RPM
2100
Power Output (hp)
170

Transmission

Type
Full power shift with creeper option
Forward Gears
32
Reverse Gears
18
Total Gears
-

Dimensions

Length (in)
196.7
Width (in)
96.7
Height (in)
Height (cab): 121.3, Height (exhaust): 124.4
Operating Weight (lb)
Operating: 15,800 lbs (2WD), Max capacity: 21,750 lbs

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
26.4
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag front: 14L-16.1 (2WD), Ag rear: 18.4R42
Manufacture - End Year
-
Hitch Type
Rear Type: III
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter (Starter volts: 12, Starter power: 6 hp)
Brake Type
-
Hydraulic System Type
Closed center load sensing
