Fiat 880

Last Updated: June 2024

Overview

The Fiat 880 is a utility tractor that was produced by Fiat. It is equipped with a liquid-cooled, four-cylinder diesel engine manufactured by Fiat that delivers 88 horsepower with a displacement of 278.37 cubic inches. The engine runs at a rated RPM of 2400 and has a bore and stroke of 4.33 inches and 4.72 inches, respectively. The tractor's transmission offers a wide range of gears, with the final version providing 16 forward and 4 reverse gears. The wheelbase measures 96.5 inches, and the tractor has an overall length of 153.2 inches and a height of 100.8 inches. It has a hydrostatic power steering system, and its overall weight is 7100 pounds. The tractor rides on agricultural tires, with the front tires being 7.50-20 and the rear tires 16.9-38. The Fiat 880 also features a Category II hitch. This mid-sized utility tractor is suitable for a variety of tasks on the farm or in other agricultural settings.

Key Specifications

Category: Utility

Power Output: 88

Operating Weight: 7100 (assuming the lower end of the weight range provided)

Fuel Type: Diesel

Image Gallery

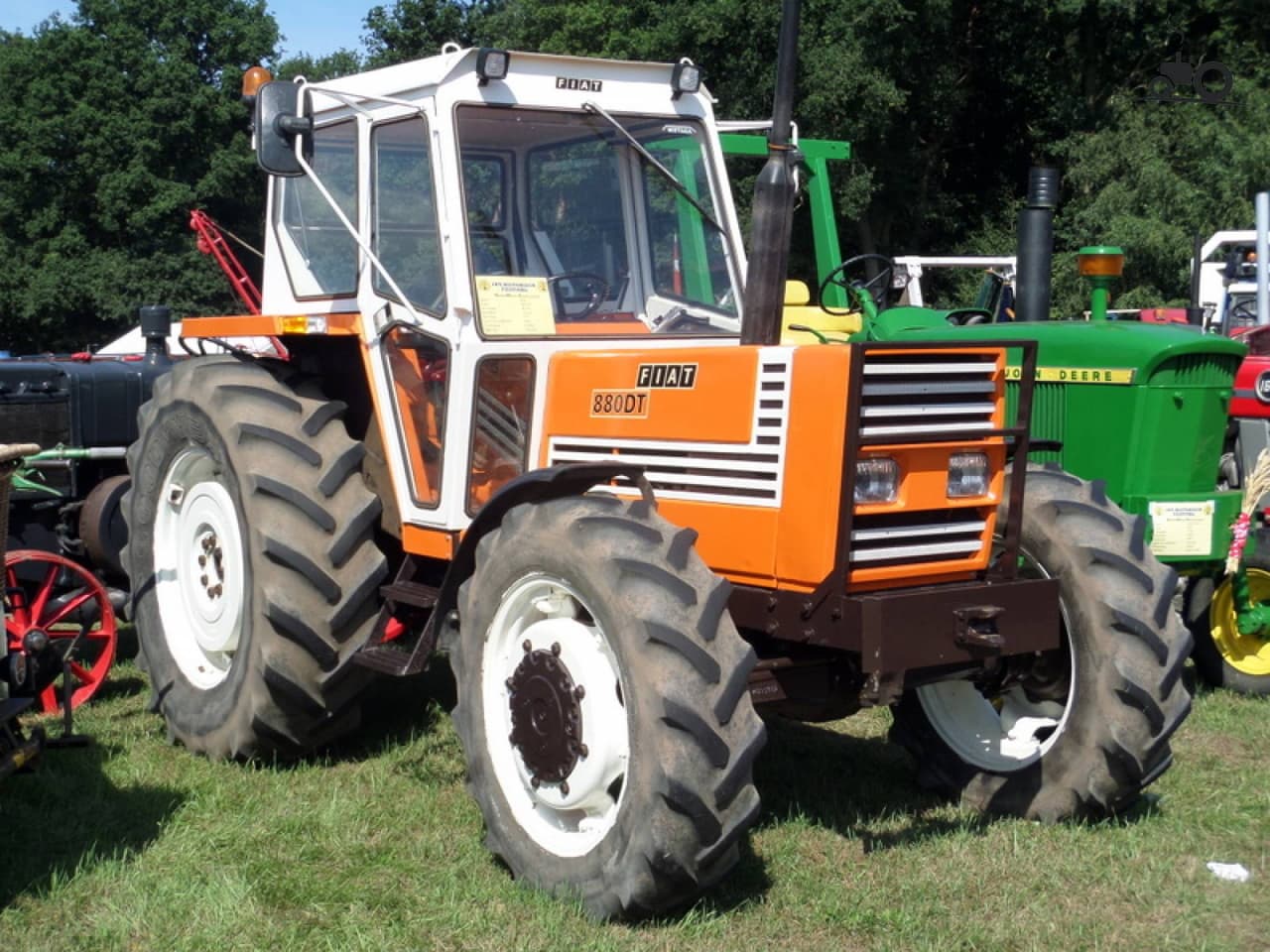

Fiat 880 Tractor

Fiat 880 vs. Similar Tractors

Power Output

Above Average

Greater than 75% of similar tractors.

Operating Weight

Average

Greater than 53% of similar tractors.

Technical Specifications

Engine

Manufacturer: Fiat
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 278.37
Bore (in): 4.33
Stroke (in): 4.72
Rated RPM: 2400
Power Output (hp): 88

Transmission

Type: -
Forward Gears: 16 (Assuming the highest number provided is correct)
Reverse Gears: 4
Total Gears: -

Dimensions

Length (in): 153.2
Width (in): -
Height (in): 100.8
Operating Weight (lb): 7100 (assuming the lower end of the weight range provided)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: -
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Category II
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
