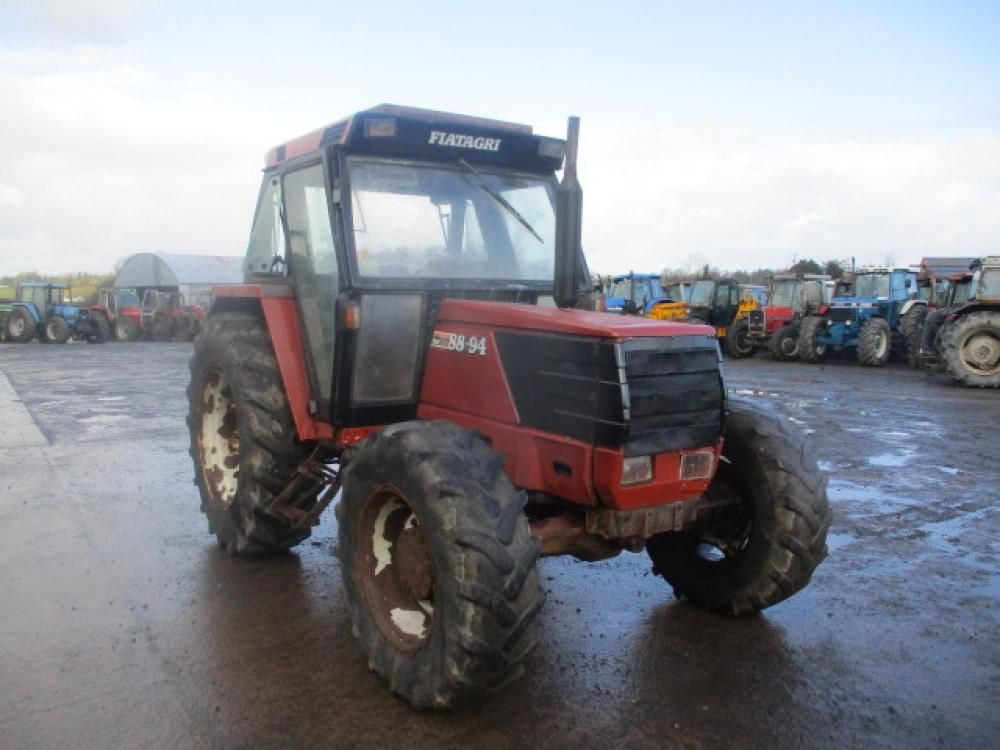

Fiat 88-94

Last Updated: June 2024

Overview

The Fiat 88-94 is a utility tractor that offers a combination of versatility and power suited for various agricultural tasks. Boasting an 85 horsepower, turbocharged Fiat 8045.05 four-cylinder diesel engine with a displacement of 238.5 cubic inches, this tractor is built to handle demanding workloads. Its rated RPM stands at 2500, indicative of a robust and responsive engine performance. With different configurations, the tractor is available in both 2WD, with a wheelbase of 92.1 inches, and 4WD, with a wheelbase of 91.1 inches. This highlights Fiat's attention to providing options to suit different farming needs. Its transmission systems, with up to 24 forward and 12 reverse gears, ensure a wide range of speeds and easy adaptability to various tasks and terrains. The Fiat 88-94 features power steering for ease of handling and is known for its dependable performance. The tractor's physical dimensions, weight, and tire specs further emphasize its substantial build, with tire configurations differing between the 2WD and 4WD variants. While the height of the hood is 56.7 inches, operators can also enjoy the comfort of an optional cab that stands at 103 inches tall. Lastly, the tractor's operating weight ranges from 7782 to 8488 pounds, augmenting its stable and strong structure to take on heavy-duty operations.
Show more...

Key Specifications

Category: Utility

Power Output: 85

Transmission: Creeper, two-speed power shift

Drive Type: 2WD

Operating Weight: 2WD: 7782, 4WD: 8488

Fuel Type: Diesel

Fiat 88-94 vs. Similar Tractors

Power Output
Above Average
Greater than 74% of similar tractors.
Operating Weight
Above Average
Greater than 72% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat
Model
8045.05
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
238.5
Bore (in)
4.0945
Stroke (in)
4.53
Rated RPM
2500
Power Output (hp)
85

Transmission

Type
Creeper, two-speed power shift
Forward Gears
24
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
2WD: 139.8, 4WD: 144.9
Width (in)
-
Height (in)
Hood: 56.7, Cab: 103
Operating Weight (lb)
2WD: 7782, 4WD: 8488

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
