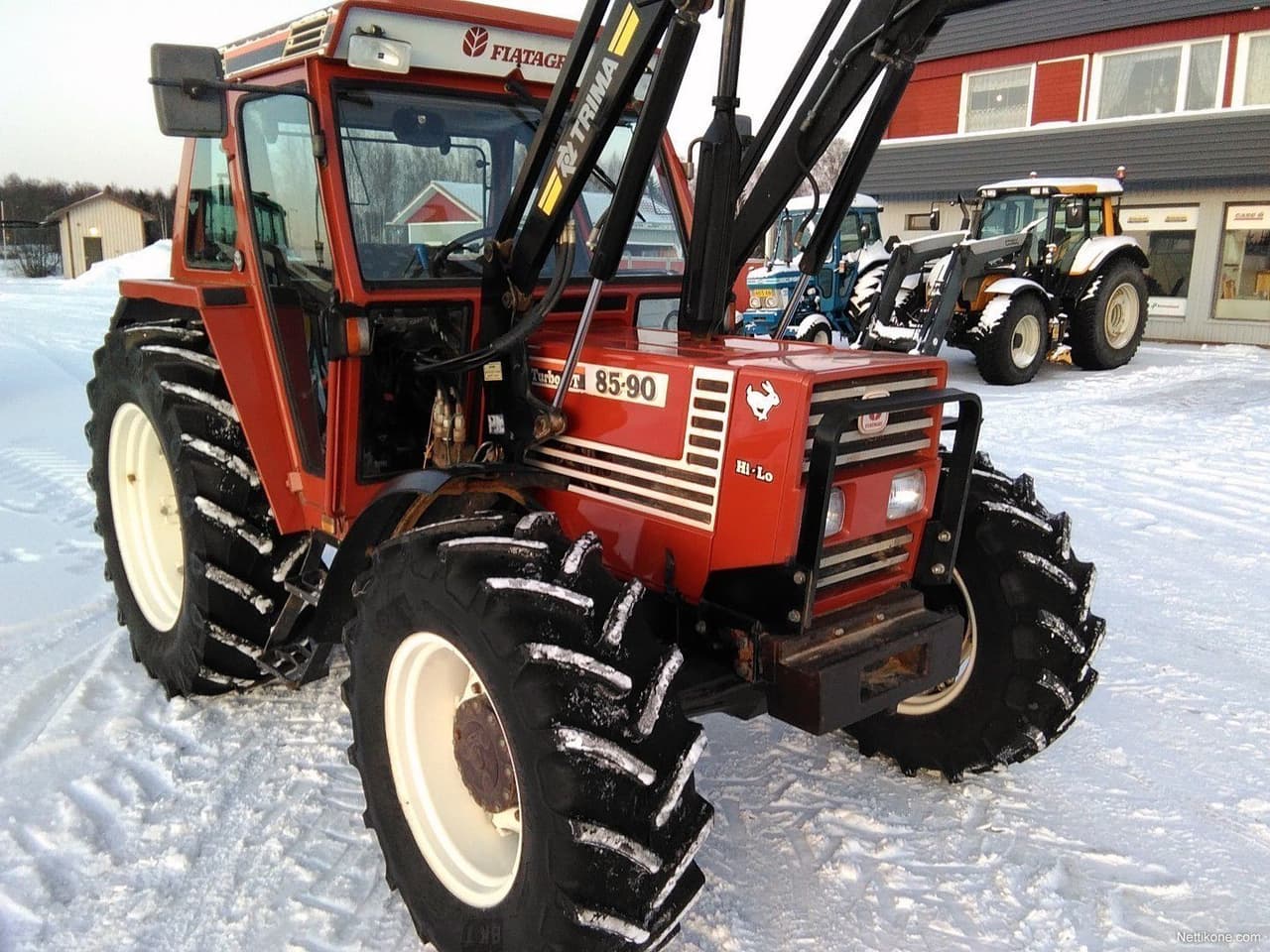

Fiat 85-90

Last Updated: June 2024

Overview

The Fiat 85-90 is a utility tractor known for its robust versatility and dependable performance. Equipped with a 238.5 cubic inch, turbocharged diesel engine by Fiat, it delivers 85 horsepower for a variety of tasks. It has a range of transmission options, including shuttle, creeper, and Hi-Lo, with a maximum of 24 forward and 12 reverse gears. This tractor operates on a 4x2 2WD chassis and comes with power steering to enhance maneuverability. Despite the absence of specific details like the start and end dates of manufacture, hitch lift capacity, and complete tire dimensions, the Fiat 85-90's longevity in the field is commemorated by its diverse transmission capabilities and robust construction. With an electric starter and liquid-cooled system for the engine, operators can expect a reliable start-up and optimized temperature control during operation. The tractor’s size, with a length of 144.09 inches and height of 103.94 inches, alongside a weight ranging from 6945 to 7672 pounds, underscores its sturdy nature and capacity for substantial agricultural workloads.
Show more...

Key Specifications

Category: Utility

Power Output: 85

Transmission: Shuttle, Creeper, Hi-Lo (Multiple types listed)

Operating Weight: 6945 (2WD)

Fuel Type: Diesel

Fiat 85-90 vs. Similar Tractors

Power Output
Above Average
Greater than 74% of similar tractors.
Operating Weight
Above Average
Greater than 79% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat
Model
8045.25
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
238.5
Bore (in)
4.09
Stroke (in)
4.53
Rated RPM
2500
Power Output (hp)
85

Transmission

Type
Shuttle, Creeper, Hi-Lo (Multiple types listed)
Forward Gears
24
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
144.09
Width (in)
-
Height (in)
103.94
Operating Weight (lb)
6945 (2WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
-
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown, tire specification is 9.00-16
Front Tire Width (in)
Unknown, tire specification is 9.00-16
Rear Tire Diameter (in)
Unknown, tire specification is 480/70R34
Rear Tire Width (in)
Unknown, tire specification is 480/70R34
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Category II/I
Hitch Category
3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
