Fiat 800

Last Updated: September 2024

Overview

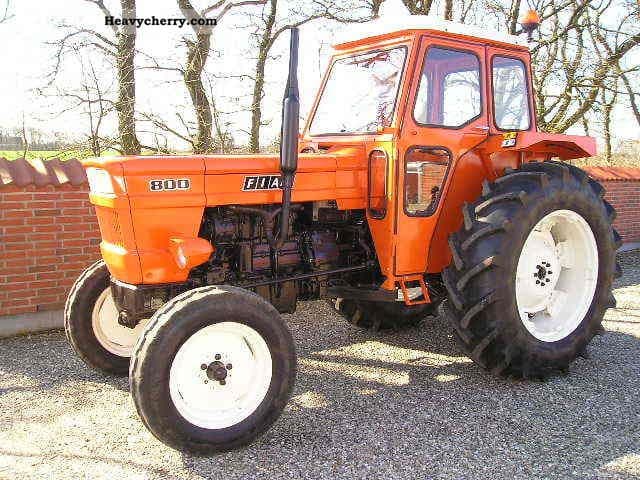

The Fiat 800 is a utility tractor built for farmers who need a strong, reliable machine. It has a 2-wheel drive system and a manual transmission with 12 forward gears and 4 reverse gears. This gives the driver good control over the tractor's speed and power.

Under the hood, the Fiat 800 has a powerful diesel engine made by Fiat. The engine has 4 cylinders and is liquid-cooled to keep it running smoothly. It can produce 80 horsepower, which is above average for tractors of its size. The engine size is also very large compared to other tractors. This tractor weighs 6,526 pounds, making it sturdy enough for tough jobs. It has a Category II hitch on the back for attaching various farm tools. The Fiat 800 is 159.5 inches long, 76 inches wide, and has a hood height of 59.8 inches. It runs on agricultural tires, with larger ones in the back for better traction in fields.
Show more...

Key Specifications

Category: Utility

Power Output: 80 hp (59.7 kW)

Transmission: Manual

Drive Type: 2WD

Operating Weight: 6526 lb (2960 kg)

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Fiat
Model
OM CO 3/80
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Cylinders
4
Displacement
302 ci (4.9 L)
Bore
4.33 in (110.0 mm)
Stroke
5.12 in (130.0 mm)
Rated RPM
2100
Power Output
80 hp (59.7 kW)

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
4

Drivetrain

Chassis
4x2
Drive Type
2WD
