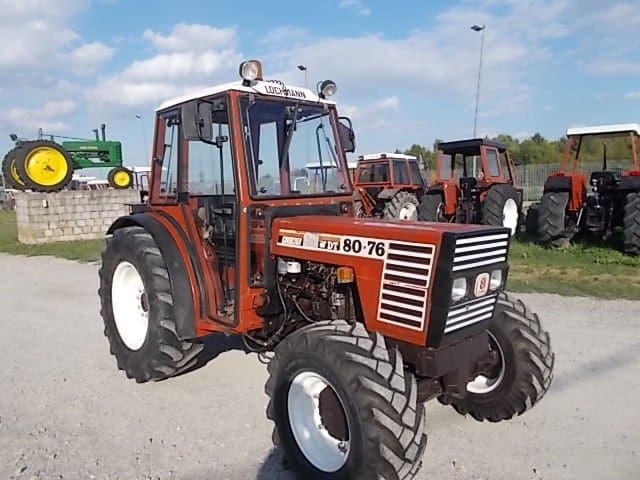

Fiat 80-76

Last Updated: June 2024

Overview

The Fiat 80-76 is an orchard/vineyard tractor, designed with specific features to navigate and operate in the unique conditions found in fruit orchards and vineyards. It is powered by a 78.9 horsepower Fiat 8045.05 diesel engine with a displacement of 238.5 cubic inches. The tractor operates with a 12-speed partially synchronized transmission, offering 12 forward and 4 reverse gears, making it versatile for various tasks. The 2WD model has a wheelbase of 78.8 inches and an operating weight ranging from 4806 to 5269 pounds, depending on whether it is 2WD or 4WD. It's built for effective use in tighter spaces commonly found in orchard rows. The tractor's steering is powered which eases maneuverability. The 2WD model also features a ground clearance of 17.1 inches, which is conducive to working in diverse terrains. The Fiat 80-76, with concise but detailed specifications, portrays a machine designed for specialized agricultural tasks that benefit from a compact and maneuverable tractor.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 78.9

Transmission: Partially synchronized

Drive Type: 2WD

Operating Weight: 4806 (2WD), 5269 (4WD)

Fuel Type: Diesel

Fiat 80-76 vs. Similar Tractors

Power Output
Average
Greater than 53% of similar tractors.
Operating Weight
Average
Greater than 68% of similar tractors.

Technical Specifications

Engine

Manufacturer
Fiat
Model
8045.05
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
238.5
Bore (in)
4.09
Stroke (in)
4.53
Rated RPM
2500
Power Output (hp)
78.9

Transmission

Type
Partially synchronized
Forward Gears
12
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
121.7 (2WD), 126.4 (4WD)
Width (in)
-
Height (in)
-
Operating Weight (lb)
4806 (2WD), 5269 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
II/I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open center
