Fiat 70-66

Last Updated: June 2024

Overview

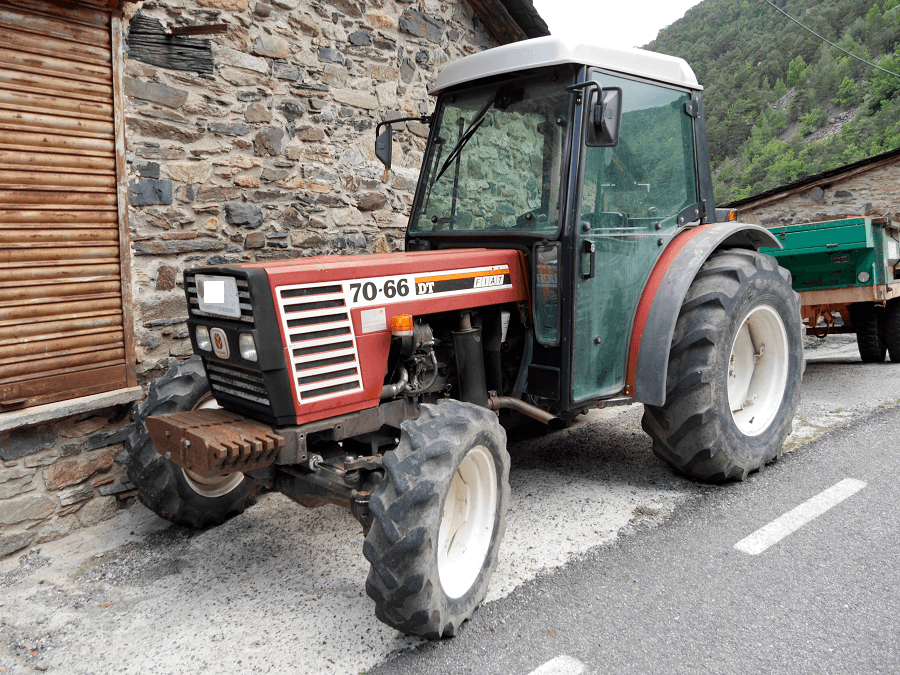

The Fiat 70-66 is a utility tractor that comes with a 4x2 2WD chassis and a power steering system, providing a practical balance of maneuverability and stability for a variety of agricultural tasks. It is powered by an Iveco 8045.06 engine, which is a 4-cylinder, liquid-cooled diesel engine that delivers 69 horsepower and a rated RPM of 2500. The substantial torque of 165.22 lb-ft at 1400 RPM ensures ample pulling power for different operations. This tractor features a 12 forward and 4 reverse speed transmission, facilitating various speeds suitable for different jobs around the farm. The tractor's wheelbase measures 90.55 inches, giving it a steady stance, and the total operating weight is 6,946 lbs, indicating a strong, durable build. The Fiat 70-66 rides on 7.50-18 front tires and 13.6-36 rear tires, and agricultural type tires support typical farming activities. While specific details on some components like the hitch type, hydraulic system, and PTO speeds are not provided, the available information points to a reliable workhorse capable of handling a range of utility tasks on the farm.
Show more...

Key Specifications

Category: Utility

Power Output: 69

Drive Type: 2WD

Operating Weight: 6946

Fuel Type: Diesel

Fiat 70-66 vs. Similar Tractors

Power Output
Average
Greater than 63% of similar tractors.
Operating Weight
Average
Greater than 52% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
8045.06
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
220.5
Bore (in)
3.94
Stroke (in)
4.53
Rated RPM
2500
Power Output (hp)
69

Transmission

Type
-
Forward Gears
12
Reverse Gears
4
Total Gears
16

Dimensions

Length (in)
158
Width (in)
-
Height (in)
100
Operating Weight (lb)
6946

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
18
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
36
Rear Tire Width (in)
13.6
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
